BJ43L-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )TPC

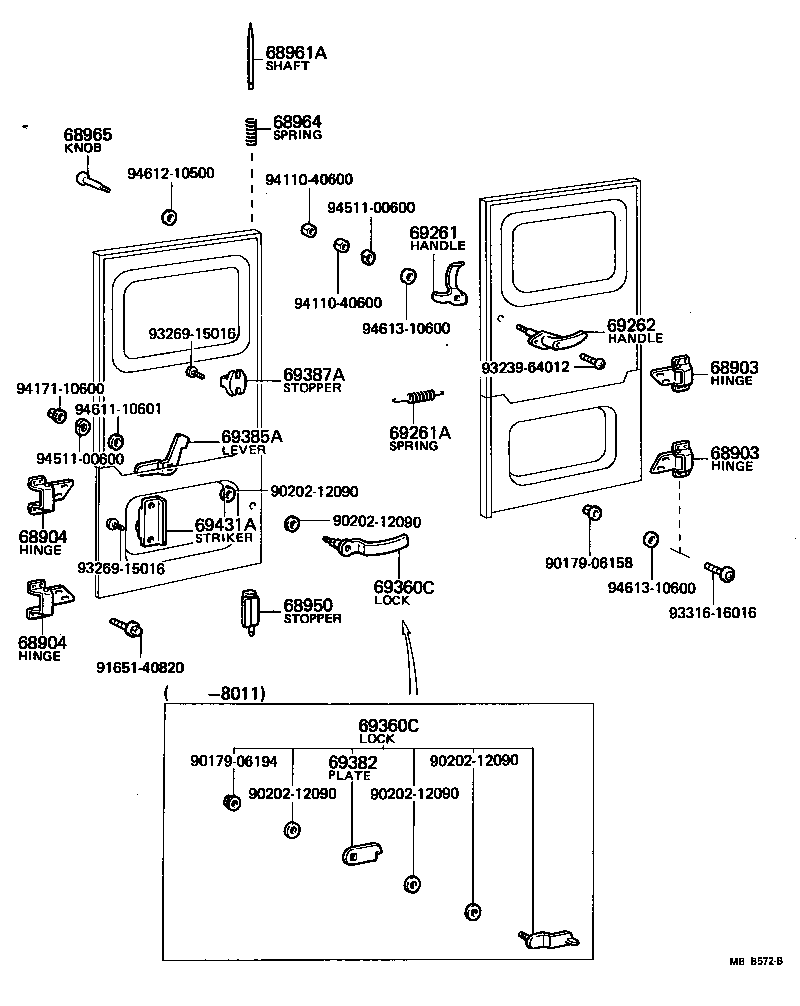

Click highlighted areas on diagram

diagram 68903 68903 68904 68904 68950 68961A 68964 68965 69261 69261A 69262 69360C 69360C 69382 69385A 69387A 69431A 9017906158 9017906194 9020212090 9020212090 9020212090 9020212090 9020212090 9165140820 9323964012 9326915016 9326915016 9331616016 9411040600 9411040600 9417110600 9451100600 9451100600 9461110601 9461210500 9461310600 9461310600
Part # Description Qty Price
68903 - HINGE, REAR SWING GATE, RH
68906-90303

BJ40,42,43,46,FJ40,43..TPC,VLS

LWR

 1
68905-90304

BJ40,42,43,46,FJ4#..TPC,VLS

UPR

 1
68903 - HINGE, REAR SWING GATE, RH
68906-90303

BJ40,42,43,46,FJ40,43..TPC,VLS

LWR

 1
68905-90304

BJ40,42,43,46,FJ4#..TPC,VLS

UPR

 1
68904 - HINGE, REAR SWING GATE, LH
68906-90303

BJ40,42,43,46,FJ4#..TPC,VLS

UPR

 1
68905-90304

BJ40,42,43,46,FJ40,43..TPC,VLS

LWR

 1
68904 - HINGE, REAR SWING GATE, LH
68906-90303

BJ40,42,43,46,FJ4#..TPC,VLS

UPR

 1
68905-90304

BJ40,42,43,46,FJ40,43..TPC,VLS

LWR

 1
68950 - STOPPER ASSY, REAR SWING GATE LOCK
68950-90305

BJ40,42,43,46,FJ4#..TPC,VLS

 1
68961A - SHAFT, REAR SWING DOOR OPEN STOPPER
68961-90315

BJ40,42,43,46,FJ4#..TPC

 1
68964 - SPRING, REAR SWING DOOR OPEN STOPPER
90501-12037

BJ40,42,43,46,FJ4#..TPC

 1
68965 - KNOB, REAR SWING DOOR OPEN STOPPER
68962-90300

BJ40,42,43,46,FJ4#..TPC

 1
69261 - HANDLE, REAR SWING DOOR INSIDE
69261-90327

FJ40..LHD..TPC..(3F,4F);BJ40,42,43,46,FJ43,45..LHD..TPC

POSITION OF LICENSE PLATE LH

 1
69261-90323

BJ40,42,43,46,FJ4#..TPC..GEN

 1
69261A - SPRING, TENSION(FOR REAR SWING DOOR HANDLE)
90506-18324

BJ40,42,43,46,FJ4#..TPC

 1
69262 - HANDLE, REAR SWING DOOR OUTSIDE
69201-90327

BJ40,42,43,46,FJ4#..TPC

 1
69360C - LOCK ASSY, REAR SWING GATE
69380-90316

BJ40,42,43,46,FJ4#..TPC

 1
69360C - LOCK ASSY, REAR SWING GATE
69380-90316

BJ40,42,43,46,FJ4#..TPC

 1
69382 - PLATE, REAR SWING GATE LOCK
69382-90315

BJ40,42,43,46,FJ4#..TPC

 1
Common parts
90179-06158
90179-06194
90202-12090
91651-40820
93239-64012
93269-15016
93316-16016
94110-40600
94171-10600
94511-00600
94611-10601
94612-10500
94613-10600
