BJ43L-KC (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7402-8007)BJ4#

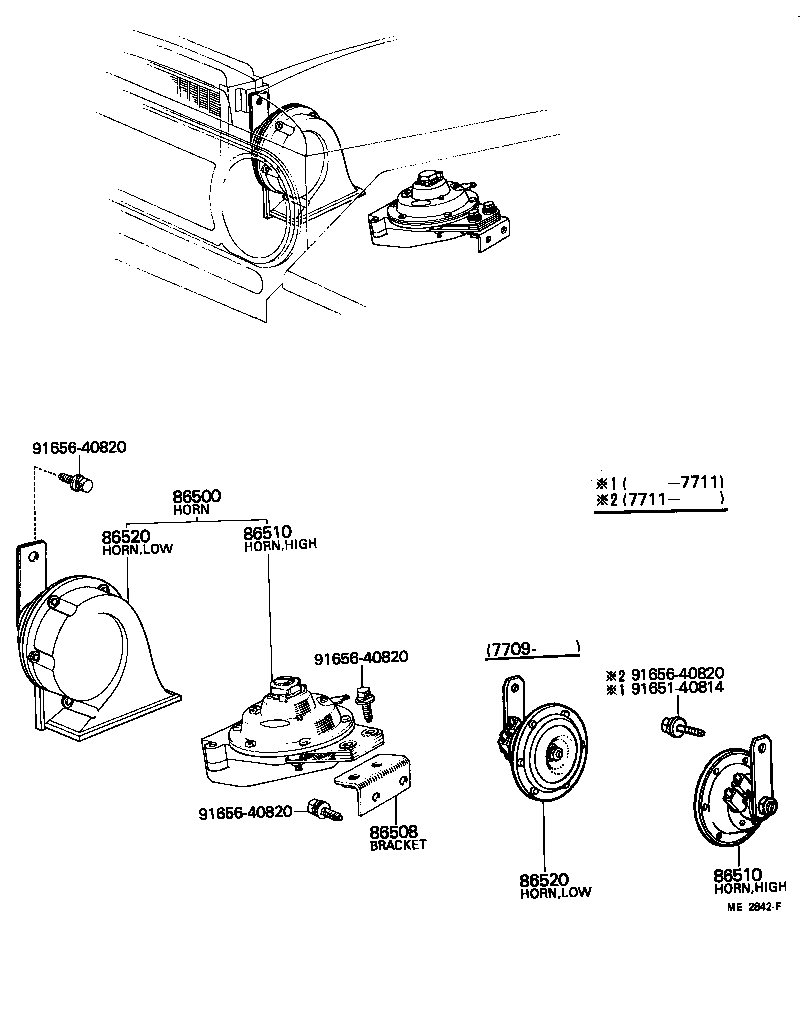

Click highlighted areas on diagram

diagram 86500 86508 86510 86510 86520 86520 9165140814 9165640820 9165640820 9165640820 9165640820
Part # Description Qty Price
86500 - HORN ASSY
86500-60010

BJ4#

MARUKO

 1
86500-36030

BJ4#

EUR.SPEC.

 1
86500-60010

BJ4#..GEN

FOR 24V,MARUKO

 1
86500-30071

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86500-30100

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86500-36070

BJ4#..GEN

FOR 24V,MARUKO

 1
86508 - BRACKET SUB-ASSY, HORN
86591-90301

BJ4#

EUR.SPEC.

 1
86591-90300

BJ4#

 1
86591-90301

BJ4#

 1
86591-90300

BJ4#..GEN

 1
86510 - HORN ASSY, HIGH PITCHED
86510-36030

BJ4#

EUR.SPEC.

 1
86510-30071

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86510-36020

BJ4#..GEN

FOR 24V,MARUKO

 1
86510-36020

BJ4#

MARUKO

 1
86510-36070

BJ4#..GEN

FOR 24V,MARUKO

 1
86510-30100

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86510-36090

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86510-36100

BJ4#..ARL,GEN

FOR 24V,MARUKO

 1
86510 - HORN ASSY, HIGH PITCHED
86510-36030

BJ4#

EUR.SPEC.

 1
86510-30071

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86510-36020

BJ4#..GEN

FOR 24V,MARUKO

 1
86510-36020

BJ4#

MARUKO

 1
86510-36070

BJ4#..GEN

FOR 24V,MARUKO

 1
86510-30100

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86510-36090

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86510-36100

BJ4#..ARL,GEN

FOR 24V,MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-36030

BJ4#

EUR.SPEC.

 1
86520-60010

BJ4#

MARUKO

 1
86520-30071

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86520-60010

BJ4#..GEN

FOR 24V,MARUKO

 1
86520-30100

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86520-36090

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86520-36100

BJ4#..ARL,GEN

FOR 24V,MARUKO

 1
86520-36070

BJ4#..GEN

FOR 24V,MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-36030

BJ4#

EUR.SPEC.

 1
86520-60010

BJ4#

MARUKO

 1
86520-30071

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86520-60010

BJ4#..GEN

FOR 24V,MARUKO

 1
86520-30100

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86520-36090

BJ4#,FJ4#,HJ45..ARL,GEN

FOR 12V,MARUKO

 1
86520-36100

BJ4#..ARL,GEN

FOR 24V,MARUKO

 1
86520-36070

BJ4#..GEN

FOR 24V,MARUKO

 1
Common parts
91651-40814
91656-40820
