Toyota Land cruiser BJ43 WIRING & CLAMP

BJ43L-KC (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

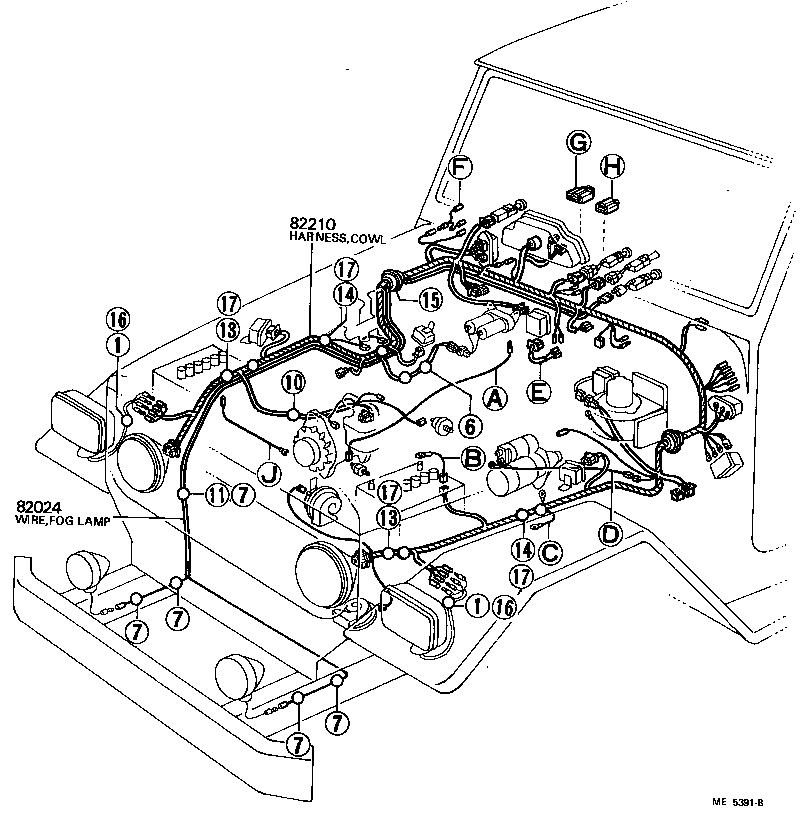

(7402-7709)BJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
82024 - WIRE SUB-ASSY, FOG LAMP FEED
82024-90301	BJ4#,FJ4#,HJ45..ARL,GEN	01/1975 - 09/1975	1
82024-90306	BJ4#,FJ4#,HJ45..ARL,GEN	08/1978 - 01/1979	1
82024-90307	BJ4#,FJ4#,HJ45..ARL,GEN	01/1979 - 07/1980	1
82024-90302	BJ4#,FJ4#,HJ45..ARL,GEN REAR	09/1975 - 08/1978	1
82024-90303	BJ4#,FJ4#,HJ45..ARL,GEN FRONT	09/1975 - 08/1978	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-90343	BJ4#..LHD	01/1975 - 09/1977	1
82220-60210	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 10/1969	1
82210-90335	BJ4#..LHD	02/1974 - 01/1975	1
82210-90610	BJ4#..LHD W/E.D.I.C.	09/1977 - 01/1979	1
82210-90616	BJ4#..LHD L/E.D.I.C.	09/1977 - 01/1979	1
82210-90633	BJ4#..LHD	01/1979 - 07/1980	1

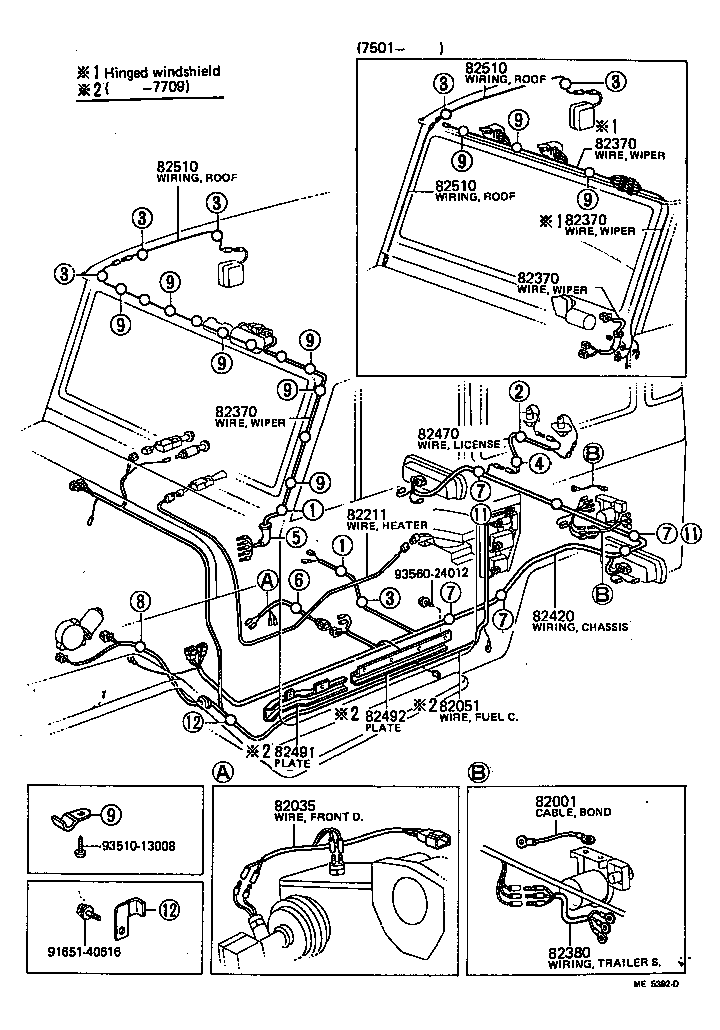

(7402-7709)BJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
90980-07056	BJ4# L=300	02/1974 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82035 - WIRE SUB-ASSY, FRONT DRIVE
82035-90302	BJ4#	01/1975 - 01/1979	1
82035-90300	BJ4#	02/1974 - 01/1975	1
82051 - HARNESS ASSY, FUEL CONTROL
82051-90303	BJ4#..LHD W/E.D.I.C.	01/1975 - 09/1977	1
82051-90301	BJ4#..LHD W/E.D.I.C.	02/1974 - 01/1975	1
82051-90305	BJ4#,HJ45 W/E.D.I.C.	09/1977 - 07/1980	1
82211 - WIRE, HEATER BLOWER FAN SWITCH
82213-90302	BJ4#,FJ4#..TP,V	08/1976 - 01/1979	1
82213-90300	BJ4#,FJ4#..TP,V	05/1974 - 08/1976	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60070	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-90311	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90308	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60070	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-90311	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90308	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60070	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-90311	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90308	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60070	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-90311	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90308	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82380 - WIRING ASSY, TRAILER SOCKET
82380-60010	FJ40,42,43	03/1969 - 09/1971	1
82380-90300	BJ4#,FJ4#..TP,V	06/1975 - 07/1980	1
82380-90300	BJ4#,FJ40,43	01/1975 - 06/1975	1
82420 - WIRING ASSY, CHASSIS
82420-90307	BJ43	02/1974 - 01/1975	1
82420-90312	BJ43	01/1975 - 09/1977	1
82420-90331	BJ43	09/1977 - 01/1979	1
82420-90344	BJ43	01/1979 - 07/1980	1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-90300	BJ4#,FJ40,43..TPB,TPC,VKC,VLS	02/1974 - 01/1975	1
82470-90300	BJ4#,FJ4#..TPC,VKC,VLS	01/1975 - 08/1976	1
82470-60010	FJ40,42,43	03/1969 - 02/1974	1
82470-90304	BJ4#,FJ4#..TPC,VLS	08/1976 - 01/1979	1
82470-90308	BJ4#,FJ4#..TPC,VLS	01/1979 - 07/1980	1
82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1
82817-90301	BJ4#	02/1974 - 09/1977	1
82492 - PLATE, WIRING HARNESS PROTECTOR, NO.2
82817-90302	BJ4#	02/1974 - 09/1977	1
82510 - WIRING ASSY, ROOF
82211-60030	FJ40,42,43..LHD..TP	03/1969 - 09/1972	1
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82211-60030	FJ40,42,43..LHD..TP	03/1969 - 09/1972	1
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82211-60030	FJ40,42,43..LHD..TP	03/1969 - 09/1972	1
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
Common parts
91651-40616
93510-13008
93560-24012

(7402-7901)BJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
90980-07056	BJ4# L=300	02/1974 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
90980-07056	BJ4# L=300	02/1974 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-90300	BJ4#,FJ40,43,HJ45..GEN FOR SINGLE MASTER CYLINDER	01/1975 - 08/1976	1
82022 - WIRING SUB-ASSY, COLD START SWITCH
82022-90300	BJ4#	01/1975 - 09/1977	1
82021-90300	BJ4#	02/1974 - 01/1975	1
82022 - WIRING SUB-ASSY, COLD START SWITCH
82022-90300	BJ4#	01/1975 - 09/1977	1
82021-90300	BJ4#	02/1974 - 01/1975	1
82210C - FUSIBLE LINK
90982-08025	BJ4#,HJ45 FOR 12V	07/1975 - 09/1977	1
90982-08023	BJ4# FOR 24V	02/1974 - 09/1977	1
90982-08025	BJ4#	09/1977 - 01/1979	1
90982-08101	BJ4#,HJ45	01/1979 - 07/1980	1
82221 - WIRE, OIL PRESSURE SWITCH
82424-90300	BJ4# W/E.D.I.C.	02/1974 - 09/1977	1
82271 - WIRING, HAZARD WARNING SWITCH
82271-90302	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	09/1977 - 07/1980	1
82271-90301	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 09/1977	1
Common parts
91212-41025

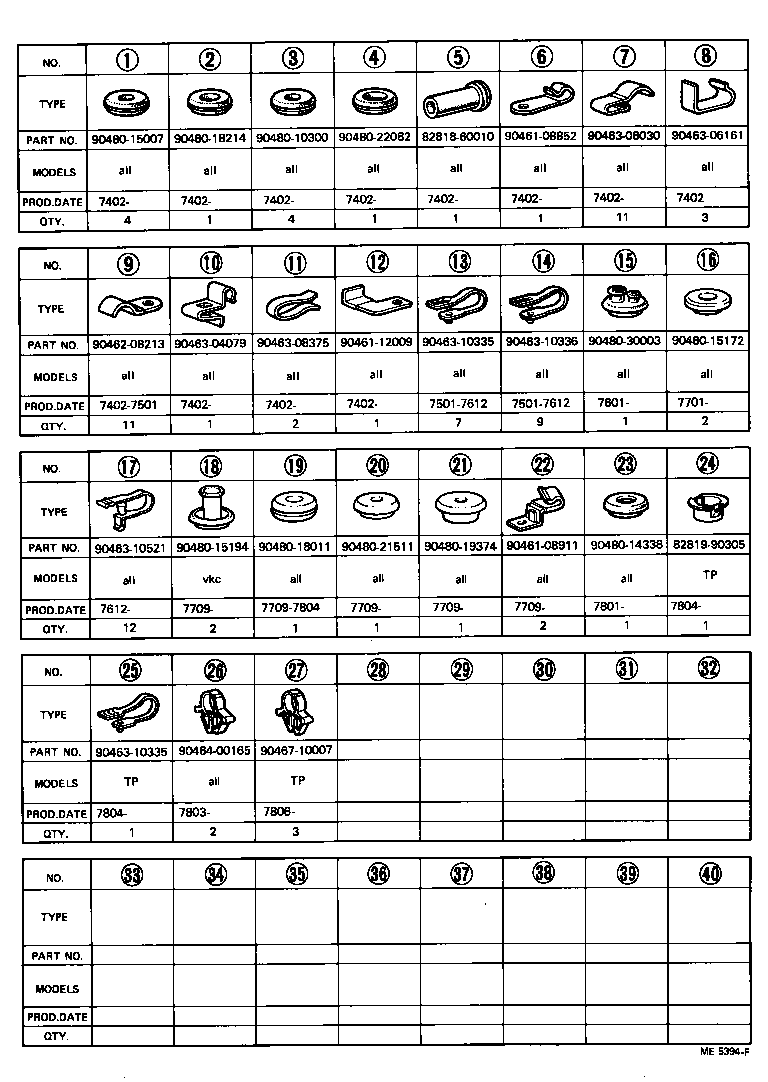

(7402-7901)BJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82818-60010
82819-90305
90461-08852
90461-08911
90461-12009
90462-08213
90463-04079
90463-06161
90463-08030
90463-08375
90463-10335
90463-10336
90463-10521
90464-00165
90467-10007
90480-10300
90480-14338
90480-15007
90480-15172
90480-15194
90480-18011
90480-18214
90480-19374
90480-21511
90480-22082
90480-30003

(7709-7901)BJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
90980-07056	BJ4# L=300	02/1974 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82035 - WIRE SUB-ASSY, FRONT DRIVE
82035-90302	BJ4#	01/1975 - 01/1979	1
82035-90300	BJ4#	02/1974 - 01/1975	1
82051 - HARNESS ASSY, FUEL CONTROL
82051-90303	BJ4#..LHD W/E.D.I.C.	01/1975 - 09/1977	1
82051-90301	BJ4#..LHD W/E.D.I.C.	02/1974 - 01/1975	1
82051-90305	BJ4#,HJ45 W/E.D.I.C.	09/1977 - 07/1980	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-90343	BJ4#..LHD	01/1975 - 09/1977	1
82220-60210	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 10/1969	1
82210-90335	BJ4#..LHD	02/1974 - 01/1975	1
82210-90610	BJ4#..LHD W/E.D.I.C.	09/1977 - 01/1979	1
82210-90616	BJ4#..LHD L/E.D.I.C.	09/1977 - 01/1979	1
82210-90633	BJ4#..LHD	01/1979 - 07/1980	1
82211 - WIRE, HEATER BLOWER FAN SWITCH
82213-90302	BJ4#,FJ4#..TP,V	08/1976 - 01/1979	1
82213-90300	BJ4#,FJ4#..TP,V	05/1974 - 08/1976	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60070	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-90311	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90308	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82380 - WIRING ASSY, TRAILER SOCKET
82380-60010	FJ40,42,43	03/1969 - 09/1971	1
82380-90300	BJ4#,FJ4#..TP,V	06/1975 - 07/1980	1
82380-90300	BJ4#,FJ40,43	01/1975 - 06/1975	1
82412 - WIRE, FUEL GAGE
82412-90310	BJ4#	01/1979 - 07/1980	1
82412-90305	BJ4#,FJ4#..TP,V	05/1978 - 01/1979	1
82420 - WIRING ASSY, CHASSIS
82420-90307	BJ43	02/1974 - 01/1975	1
82420-90312	BJ43	01/1975 - 09/1977	1
82420-90331	BJ43	09/1977 - 01/1979	1
82420-90344	BJ43	01/1979 - 07/1980	1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-90300	BJ4#,FJ40,43..TPB,TPC,VKC,VLS	02/1974 - 01/1975	1
82470-90300	BJ4#,FJ4#..TPC,VKC,VLS	01/1975 - 08/1976	1
82470-60010	FJ40,42,43	03/1969 - 02/1974	1
82470-90304	BJ4#,FJ4#..TPC,VLS	08/1976 - 01/1979	1
82470-90308	BJ4#,FJ4#..TPC,VLS	01/1979 - 07/1980	1
82510 - WIRING ASSY, ROOF
82211-60030	FJ40,42,43..LHD..TP	03/1969 - 09/1972	1
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82211-60030	FJ40,42,43..LHD..TP	03/1969 - 09/1972	1
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
Common parts
82817-90300
91611-40818

(7901-8007)BJ4#,FJ4#,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
82046-14070	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	07/1975 - 01/1976	1
90980-07056	BJ4# L=300	02/1974 - 07/1980	1
82046-14071	BJ4#,FJ4#,HJ45 L=330, BJ=FOR 12V	01/1976 - 01/1979	1
82046-14072	BJ4#,FJ4#,HJ45 L=480,BJ=FOR 12V	01/1979 - 07/1980	1
82381-60010	BJ4#,FJ4#..TP,V L=150	01/1975 - 07/1980	1
82002 - CABLE, BATTERY TO MAGNET SWITCH
38915-90300	BJ4#,HJ45	10/1979 - 07/1980	1
82002A - CABLE, MAGNET SWITCH TO WINCH
38916-90301	BJ4#	10/1979 - 07/1980	1
82002B - CABLE, WINCH TO GROUND
90980-07175	BJ4#,FJ4#,HJ45	10/1979 - 07/1980	1
82024 - WIRE SUB-ASSY, FOG LAMP FEED
82024-90301	BJ4#,FJ4#,HJ45..ARL,GEN	01/1975 - 09/1975	1
82024-90306	BJ4#,FJ4#,HJ45..ARL,GEN	08/1978 - 01/1979	1
82024-90307	BJ4#,FJ4#,HJ45..ARL,GEN	01/1979 - 07/1980	1
82024-90302	BJ4#,FJ4#,HJ45..ARL,GEN REAR	09/1975 - 08/1978	1
82024-90303	BJ4#,FJ4#,HJ45..ARL,GEN FRONT	09/1975 - 08/1978	1
82035 - WIRE SUB-ASSY, FRONT DRIVE
82035-90302	BJ4#	01/1975 - 01/1979	1
82035-90300	BJ4#	02/1974 - 01/1975	1
82051 - HARNESS ASSY, FUEL CONTROL
82051-90303	BJ4#..LHD W/E.D.I.C.	01/1975 - 09/1977	1
82051-90301	BJ4#..LHD W/E.D.I.C.	02/1974 - 01/1975	1
82051-90305	BJ4#,HJ45 W/E.D.I.C.	09/1977 - 07/1980	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-90343	BJ4#..LHD	01/1975 - 09/1977	1
82220-60210	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 10/1969	1
82210-90335	BJ4#..LHD	02/1974 - 01/1975	1
82210-90610	BJ4#..LHD W/E.D.I.C.	09/1977 - 01/1979	1
82210-90616	BJ4#..LHD L/E.D.I.C.	09/1977 - 01/1979	1
82210-90633	BJ4#..LHD	01/1979 - 07/1980	1
82210C - FUSIBLE LINK
90982-08025	BJ4#,HJ45 FOR 12V	07/1975 - 09/1977	1
90982-08023	BJ4# FOR 24V	02/1974 - 09/1977	1
90982-08025	BJ4#	09/1977 - 01/1979	1
90982-08101	BJ4#,HJ45	01/1979 - 07/1980	1
82215 - WIRE, PARKING BRAKE LAMP SWITCH
82215-90305	BJ4#,FJ4#..LHD W/REAR HEATER	01/1979 - 07/1980	1
82215-90301	BJ4#,FJ4#,HJ45..LHD..(TP,V)	09/1979 - 07/1980	1
82215-90301	BJ4#,FJ4#,HJ45..LHD	01/1979 - 09/1979	1
82220 - HARNESS ASSY, WIRING COWL
82220-90311	BJ4#..LHD L/E.D.I.C.	01/1979 - 07/1980	1
82220-90310	BJ4#..LHD W/E.D.I.C.	01/1979 - 07/1980	1
82221 - WIRE, OIL PRESSURE SWITCH
82424-90300	BJ4# W/E.D.I.C.	02/1974 - 09/1977	1
82241C - WIRE, RELAY
82241-90303	BJ4# FOR ELECTRICAL WINCH	10/1979 - 07/1980	1
82271 - WIRING, HAZARD WARNING SWITCH
82271-90302	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	09/1977 - 07/1980	1
82271-90301	BJ4#,FJ4#,55,HJ45..ARL,GEN L/HAZARD SWITCH	01/1975 - 09/1977	1
82345 - DIODE
82345-12010	BJ4#,HJ45 W/SEDIMENTER	09/1979 - 07/1980	1
82370 - WIRE ASSY, WIPER SWITCH TO WIPER
82370-60070	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 09/1972	1
82370-90311	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO WIRE	01/1975 - 07/1980	1
82370-90308	BJ4#,FJ4#..LHD..TP..GEN W/H.W.,WIRE TO MOTOR	01/1975 - 07/1980	1
82370-90309	BJ4#,FJ4#,HJ45	01/1975 - 02/1975	1
82370-90312	BJ4#,FJ4#,HJ45	02/1975 - 07/1980	1
82374 - WIRE, WASHER
82374-60010	BJ4#,HJ45	01/1979 - 07/1980	1
82380 - WIRING ASSY, TRAILER SOCKET
82380-60010	FJ40,42,43	03/1969 - 09/1971	1
82380-90300	BJ4#,FJ4#..TP,V	06/1975 - 07/1980	1
82380-90300	BJ4#,FJ40,43	01/1975 - 06/1975	1
82412 - WIRE, FUEL GAGE
82412-90310	BJ4#	01/1979 - 07/1980	1
82412-90305	BJ4#,FJ4#..TP,V	05/1978 - 01/1979	1
82415A - WIRE, LEVEL WARNING
82415-90300	BJ4#	09/1979 - 07/1980	1
82420 - WIRING ASSY, CHASSIS
82420-90307	BJ43	02/1974 - 01/1975	1
82420-90312	BJ43	01/1975 - 09/1977	1
82420-90331	BJ43	09/1977 - 01/1979	1
82420-90344	BJ43	01/1979 - 07/1980	1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-90300	BJ4#,FJ40,43..TPB,TPC,VKC,VLS	02/1974 - 01/1975	1
82470-90300	BJ4#,FJ4#..TPC,VKC,VLS	01/1975 - 08/1976	1
82470-60010	FJ40,42,43	03/1969 - 02/1974	1
82470-90304	BJ4#,FJ4#..TPC,VLS	08/1976 - 01/1979	1
82470-90308	BJ4#,FJ4#..TPC,VLS	01/1979 - 07/1980	1
82510 - WIRING ASSY, ROOF
82211-60030	FJ40,42,43..LHD..TP	03/1969 - 09/1972	1
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82510 - WIRING ASSY, ROOF
82211-60030	FJ40,42,43..LHD..TP	03/1969 - 09/1972	1
82521-90300	BJ4#,FJ4#,HJ45 NO.1 & NO.2	06/1975 - 09/1977	2
82521-90303	BJ4#,FJ4#,HJ45..TP,V NO.2 L=860	09/1977 - 07/1980	1
82521-90300	BJ4#,FJ40,43 NO.1 & NO.2	05/1975 - 06/1975	2
82521-90300	BJ4#,FJ4#,HJ45 NO.1	09/1977 - 07/1980	1
82823 - CAP, TERMINAL, NO.1
82823-90300	BJ4#,FJ4#,HJ45 FOR ELECTRICAL WINCH	10/1979 - 07/1980	1
Linked diagrams
8401

(7901-8007)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82817-90300
82818-90300
82819-90305
90461-06083
90461-08090
90461-08192
90461-08202
90461-08385
90461-08430
90461-08911
90461-10274
90461-10398
90462-10005
90463-04079
90463-04340
90463-06161
90463-08027
90463-08030
90463-08207
90463-08375
90463-10010
90463-10521
90463-15067
90464-00190
90467-10007

(7901-8007)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-08026
90461-08213
90461-10476
90461-12543
90461-12690
90463-04573
90463-08026
90463-10012
90463-10024
90463-10060
90463-12570
90463-15454
90467-36135
90480-01316
90480-10300
90480-13334
90480-15007
90480-15172
90480-15194
90480-18011
90480-21511
90480-36508
90480-40303
90480-58059

BJ43L-KC (1974)

(7402-7709)BJ4#

(7402-7709)BJ4#

(7402-7901)BJ4#

(7402-7901)BJ4#

(7709-7901)BJ4#

(7901-8007)BJ4#,FJ4#,HJ45

(7901-8007)

(7901-8007)

Part Price Details
