BJ43L-KC (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

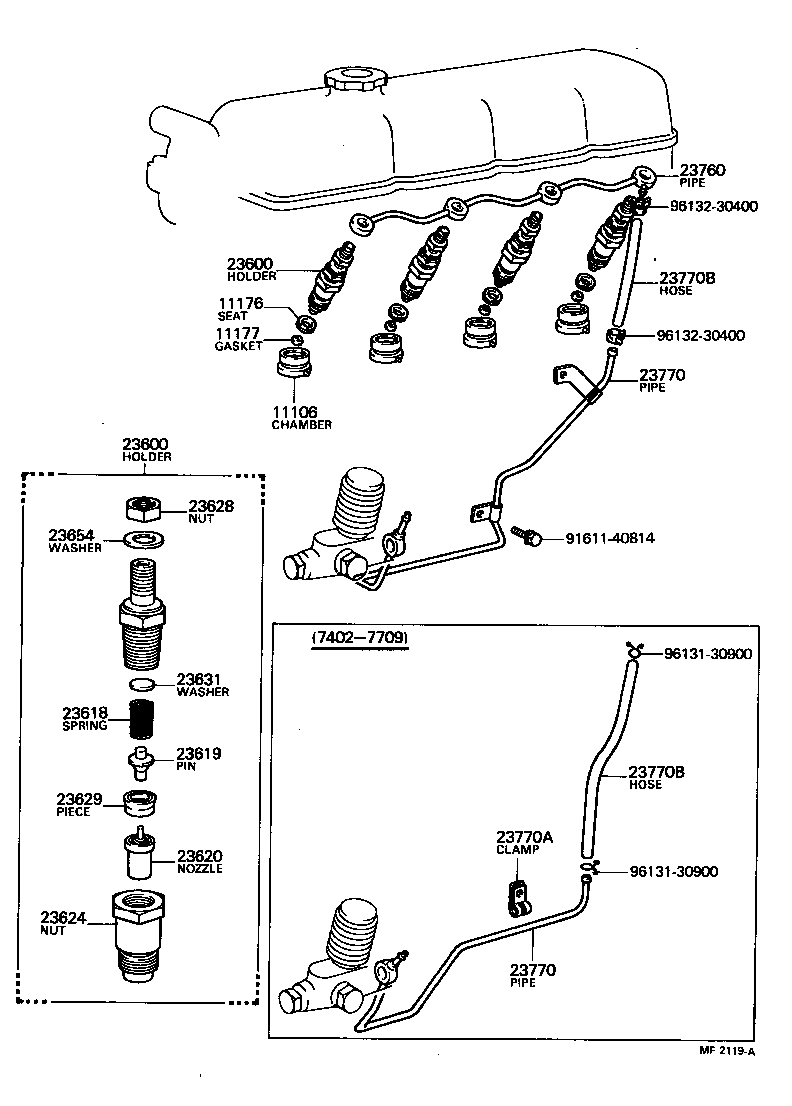

Click highlighted areas on diagram

diagram 11106 11176 11177 23600 23600 23618 23619 23620 23624 23628 23629 23631 23654 23760 23770 23770B 9165140814 9613230400 9613230400
Part # Description Qty Price
Common parts
91651-40814
96132-30400

(7402-8007)B

Click highlighted areas on diagram

diagram 11106 11176 11177 23600 23600 23618 23619 23620 23624 23628 23629 23631 23654 23760 23770 23770 23770A 23770B 23770B 9161140814 9613130900 9613130900 9613230400 9613230400
Part # Description Qty Price
11106 - CHAMBER SUB-ASSY, COMBUSTION
11106-56010

B..BJ4#

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-56010

B..BJ4#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-56010

B..BJ4#

 4
23600-56011

B..BJ4#

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-56010

B..BJ4#

 4
23600-56011

B..BJ4#

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-56010

B..BJ4#

 4
23620 - NOZZLE ASSY
23620-54010

B..BJ4#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-56020

B..BJ4#

 1
23760-56010

B..BJ4#

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-56030

B..BJ4#

 1
23770-56020

B..BJ4#

 1
23770-56011

B..BJ4#

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-56030

B..BJ4#

 1
23770-56020

B..BJ4#

 1
23770-56011

B..BJ4#

 1
23770A - CLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)
90461-06179

B..BJ4#

 1
23770B - HOSE, FUEL
95311-04028

B..BJ4#

 1
95332-04020

B..BJ4#

*H,L=130

 1
95331-04020

B..BJ4#

*H,L=110

 1
23770B - HOSE, FUEL
95311-04028

B..BJ4#

 1
95332-04020

B..BJ4#

*H,L=130

 1
95331-04020

B..BJ4#

*H,L=110

 1
Common parts
91611-40814
96131-30900
96132-30400
