BJ43L-KC (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17172 17172 17173 9011910346 9017908123 9017908123 9017908123 9161160825 9161160825 9165160816 9418461000
Part # Description Qty Price
Common parts
90119-10346
90179-08123
91611-60825
91651-60816
94184-61000

(7402-8007)B

Click highlighted areas on diagram

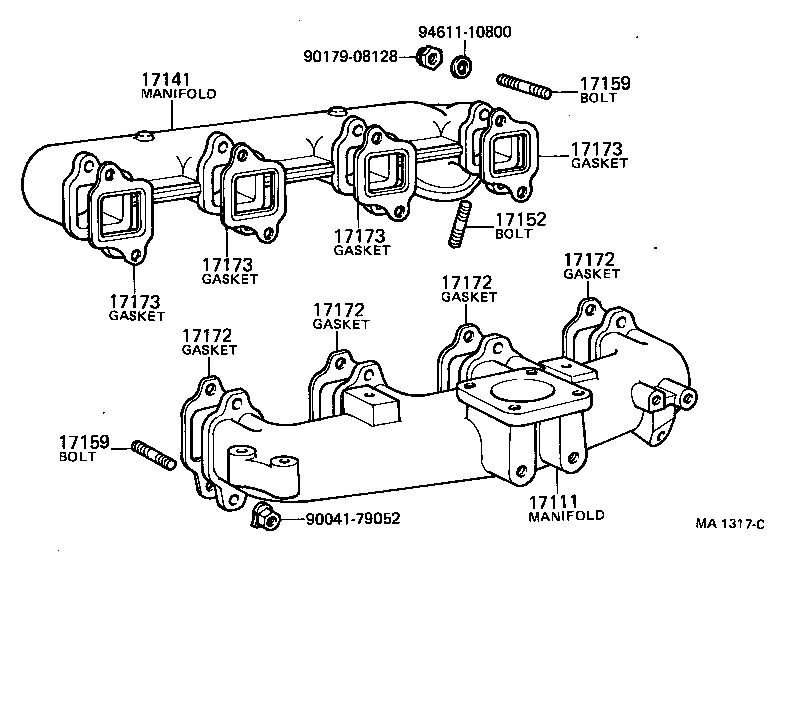

diagram 17111 17141 17152 17159 17159 17172 17172 17172 17172 17173 17173 17173 17173 9004179052 9017908128 9461110800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-56040

B..BJ4#

 1
17111-56020

B..BJ4#

 1
17141 - MANIFOLD, EXHAUST
17141-56010

B..BJ4#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08058

B..BJ4#

L=30,S=8&8

 8
90116-08065

B..BJ4#

L=33,S=9&9

 8
92112-60822

B..BJ4#

L=33,S=10&16

 8
90116-08118

B..BJ4#

L=39,S=11&13

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08058

B..BJ4#

L=30,S=8&8

 8
90116-08065

B..BJ4#

L=33,S=9&9

 8
92112-60822

B..BJ4#

L=33,S=10&16

 8
90116-08118

B..BJ4#

L=39,S=11&13

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56010

B..BJ4#

 4
17172-56011

B..BJ4#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56010

B..BJ4#

 4
17172-56011

B..BJ4#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56010

B..BJ4#

 4
17172-56011

B..BJ4#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56010

B..BJ4#

 4
17172-56011

B..BJ4#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

B..BJ4#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

B..BJ4#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

B..BJ4#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

B..BJ4#

 4
Common parts
90041-79052
90179-08128
94611-10800

(7501-7502)2F..GEN ; (7501-7502)2F..FJ45..EUR..IV ; (7502-7608)2F..ARL,GEN ; (7502-

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17111B 17111B 17151 17152 17159 17169 17171 17171 17172 9010110485 9010110486 9017012211 9020112118 9111151030 9161941225 9451201000 9451201000
Part # Description Qty Price
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08058

B..BJ4#

L=30,S=8&8

 8
90116-08065

B..BJ4#

L=33,S=9&9

 8
92112-60822

B..BJ4#

L=33,S=10&16

 8
90116-08118

B..BJ4#

L=39,S=11&13

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56010

B..BJ4#

 4
17172-56011

B..BJ4#

 4
Common parts
90101-10485
90101-10486
90170-12211
90201-12118
91111-51030
91619-41225
94512-01000

(7608-7901)2F..ARL,GEN ; (7608-7901)2F..FJ45..EUR..IV ; (7901-8007)2F..GEN ; (7901-

Click highlighted areas on diagram

diagram 1708 17110 17110A 17110B 17110B 17110B 17111A 17111A 17111B 17146 17146 17147 17147 17151 17152 17159 17169 17171 17171 17172 9010110485 9010110486 9011912003 9017012211 9020112004 9020112004 9161161030 9165161030 9451201000
Part # Description Qty Price
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08058

B..BJ4#

L=30,S=8&8

 8
90116-08065

B..BJ4#

L=33,S=9&9

 8
92112-60822

B..BJ4#

L=33,S=10&16

 8
90116-08118

B..BJ4#

L=39,S=11&13

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56010

B..BJ4#

 4
17172-56011

B..BJ4#

 4
Common parts
90101-10485
90101-10486
90119-12003
90170-12211
90201-12004
91611-61030
91651-61030
94512-01000
Linked diagrams
1708

(6903-7501)F

Click highlighted areas on diagram

diagram 17110 17111 17111A 17111B 17141 17151 17152 17159 17171 17172 17203 17231 17231A 17231B 17234 17236 17237 9017010049 9020110089 9111151025 9111151090 9311013008 9311913008 9411040600 9451100300 9451200600 9451201000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-56040

B..BJ4#

 1
17111-56020

B..BJ4#

 1
17141 - MANIFOLD, EXHAUST
17141-56010

B..BJ4#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08058

B..BJ4#

L=30,S=8&8

 8
90116-08065

B..BJ4#

L=33,S=9&9

 8
92112-60822

B..BJ4#

L=33,S=10&16

 8
90116-08118

B..BJ4#

L=39,S=11&13

 8
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56010

B..BJ4#

 4
17172-56011

B..BJ4#

 4
Common parts
90170-10049
90201-10089
91111-51025
91111-51090
93110-13008
93119-13008
94110-40600
94511-00300
94512-00600
94512-01000
