BJ43L-KC (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908123 9017908123 9166160816 9212260832 9212260832 9322016012
Part # Description Qty Price
Common parts
90179-08123
91661-60816
92122-60832
93220-16012

(7402-7709)B

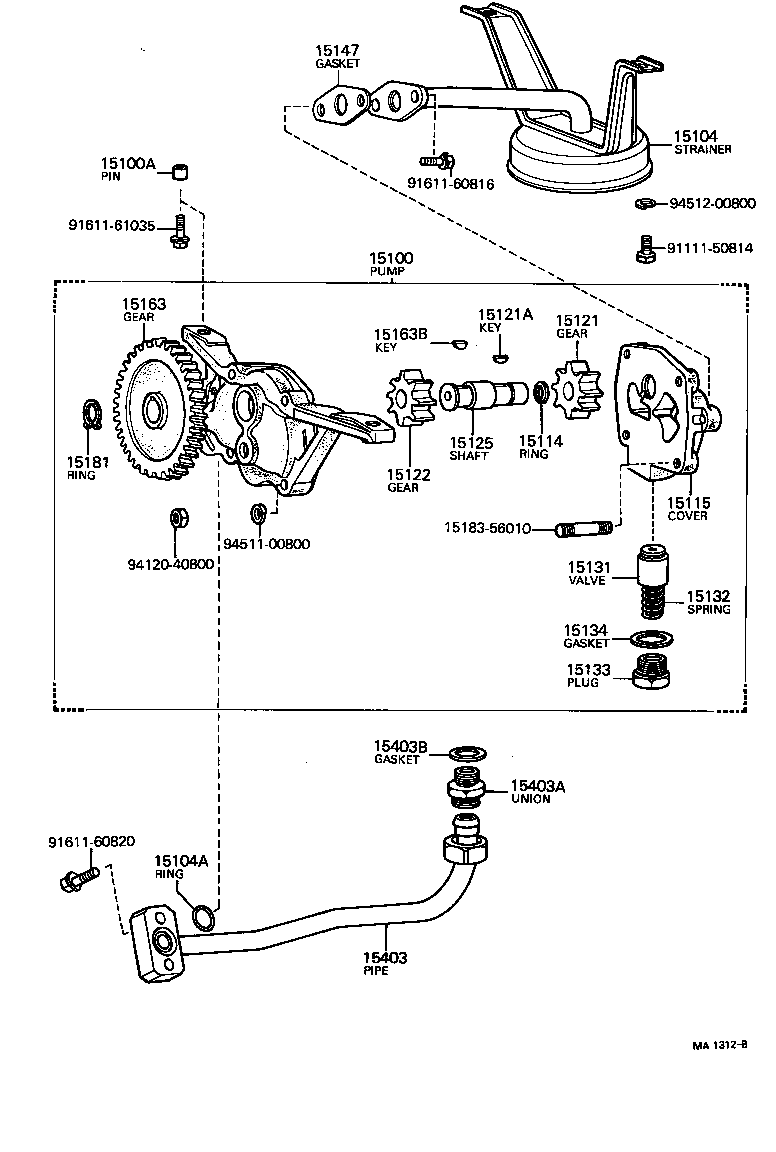

Click highlighted areas on diagram

diagram 15100 15100A 15104 15104A 15114 15115 15121 15121A 15122 15125 15131 15132 15133 15134 15147 15163 15163B 15181 1518356010 15403 15403A 15403B 9111150814 9161160816 9161160820 9161161035 9412040800 9451100800 9451200800
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-56010

B..BJ4#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-13008

B..BJ4#

 2
15104 - STRAINER SUB-ASSY, OIL
15104-56030

B..BJ4#

 1
15104-56020

B..BJ4#

 1
15104A - RING, O(FOR OIL STRAINER)
96740-01020

B..BJ4#

 1
15115 - COVER, OIL PUMP
15115-56022

B..BJ4#

 1
15115-56020

B..BJ4#

 1
15115-56010

B..BJ4#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-56010

B..BJ4#

N=8

 1
15121-38020

B..BJ4#

N=25

 1
15121-56022

B..BJ4#

N=25

 1
15121A - KEY, OIL PUMP DRIVE SHAFT
90280-03005

B..BJ4#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-38020

B..BJ4#

N=31

 1
15122-56022

B..BJ4#

N=31

 1
15122-56010

B..BJ4#

N=8

 1
15125 - SHAFT, OIL PUMP
15125-56010

B..BJ4#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-76011

B..BJ4#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

B..BJ4#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

B..BJ4#

 1
15147 - GASKET, OIL STRAINER
15149-56010

B..BJ4#

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-56010

B..BJ4#

N=31

 1
15163B - KEY, WOODRUFF(FOR OIL PUMP DRIVE SHAFT GEAR)
15184-56010

B..BJ4#

 1
15181 - RING, OIL PUMP SHAFT SNAP
96150-01500

B..BJ4#

 1
15403 - PIPE SUB-ASSY, OIL PUMP OUTLET
15403-56020

B..BJ4#

 1
15403-56030

B..BJ4#

 1
15403A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-24248

B..BJ4#

 1
90401-18002

B..BJ4#

 1
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-18012

B..BJ4#

 2
Common parts
15183-56010
91111-50814
91611-60816
91611-60820
91611-61035
94120-40800
94511-00800
94512-00800

(7709-8007)B

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15195 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9020112009 9161160832 9161160832 9161160835 9161160835 9165160816 9165160816 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-56030

B..BJ4#

 1
15104-56020

B..BJ4#

 1
15104C - GASKET(FOR OIL STRAINER)
15422-56010

B..BJ4#

 2
15104C - GASKET(FOR OIL STRAINER)
15422-56010

B..BJ4#

 2
15115 - COVER, OIL PUMP
15115-56022

B..BJ4#

 1
15115-56020

B..BJ4#

 1
15115-56010

B..BJ4#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-56010

B..BJ4#

N=8

 1
15121-38020

B..BJ4#

N=25

 1
15121-56022

B..BJ4#

N=25

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-38020

B..BJ4#

N=31

 1
15122-56022

B..BJ4#

N=31

 1
15122-56010

B..BJ4#

N=8

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-76011

B..BJ4#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

B..BJ4#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

B..BJ4#

 1
15195 - BRACKET, OIL STRAINER
15195-56010

B..BJ4#

 1
15403 - PIPE SUB-ASSY, OIL PUMP OUTLET
15403-56020

B..BJ4#

 1
15403-56030

B..BJ4#

 1
15403A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-24248

B..BJ4#

 1
90401-18002

B..BJ4#

 1
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-18012

B..BJ4#

 2
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-18012

B..BJ4#

 2
15706 - PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET
15077-56010

B..BJ4#

 1
15706A - UNION(FOR INJECTION PUMP OUTLET PIPE)
90401-10007

B..BJ4#

 1
90044-01010

B..BJ4#

 1
15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE)
90044-30026

B..BJ4#

 2
15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE)
90044-30026

B..BJ4#

 2
Common parts
90201-12009
91611-60832
91611-60835
91651-60816
93220-16012
