BJ43L-KC (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

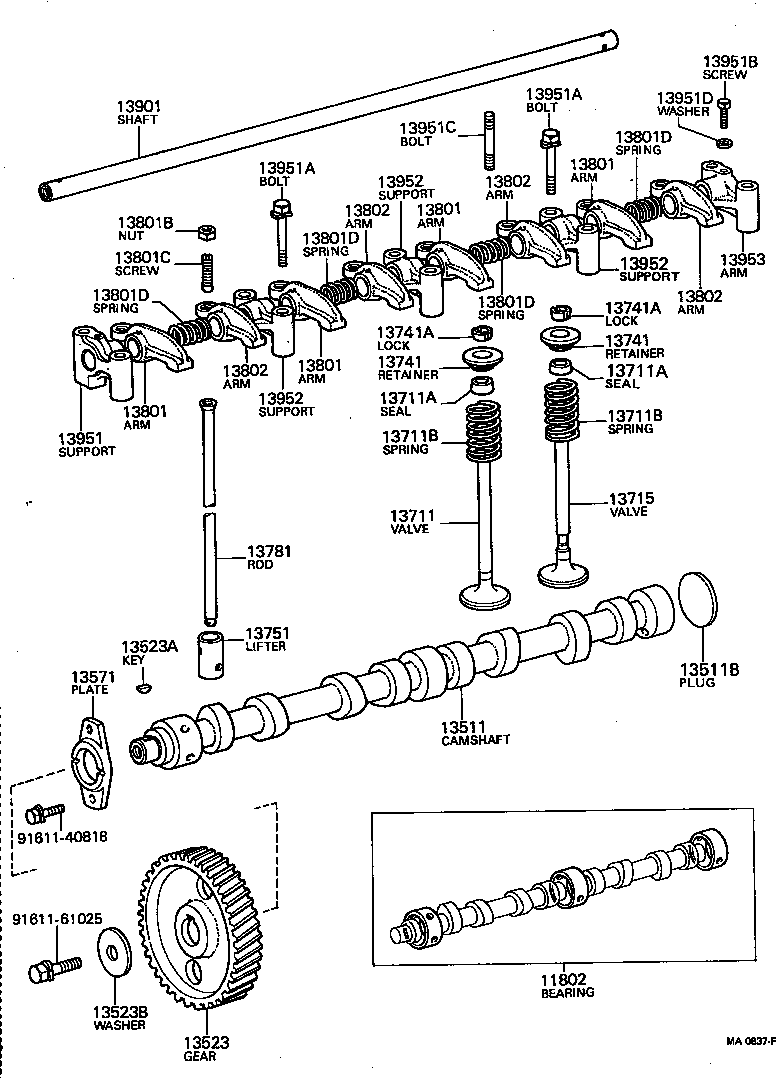

Click highlighted areas on diagram

diagram 11802 11802 13511 13511B 13523 13523A 13523B 13571 13711 13711A 13711A 13711B 13711B 13711C 13711C 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13951 13951A 13951A 13951B 13951C 13951D 13952 13952 13952 13953 9020114015 9020114015 9161160818 9161161025 9161161030
Part # Description Qty Price
Common parts
90201-14015
91611-60818
91611-61025
91611-61030

(7402-8007)B

Click highlighted areas on diagram

diagram 11802 13511 13511B 13523 13523A 13523B 13571 13711 13711A 13711A 13711B 13711B 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13951 13951A 13951A 13951B 13951C 13951D 13952 13952 13952 13953 9161140818 9161161025
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11802-56010

B..BJ4#

STD

 1
13511 - CAMSHAFT
13511-56010

B..BJ4#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-56010

B..BJ4#

N=44

 1
13523-56020

B..BJ4#

N=44

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05010

B..BJ4#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-56010

B..BJ4#

 1
13711 - VALVE, INTAKE
13711-56020

B..BJ4#

 4
13711-56010

B..BJ4#

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02028

B..BJ4#

FOR INTAKE

 4
90913-02028

B..BJ4#

FOR INTAKE

 6
90913-02028

B..BJ4#

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02028

B..BJ4#

FOR INTAKE

 4
90913-02028

B..BJ4#

FOR INTAKE

 6
90913-02028

B..BJ4#

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-47003

B..BJ4#

 8
90501-45397

B..BJ4#

WD=4.5,CW=6

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-47003

B..BJ4#

 8
90501-45397

B..BJ4#

WD=4.5,CW=6

 8
13715 - VALVE, EXHAUST
13715-56010

B..BJ4#

 4
13715-56020

B..BJ4#

 4
13741 - RETAINER, VALVE SPRING
13741-56011

B..BJ4#

 8
13741-56010

B..BJ4#

 8
13741 - RETAINER, VALVE SPRING
13741-56011

B..BJ4#

 8
13741-56010

B..BJ4#

 8
13751 - LIFTER, VALVE
13751-56010

B..BJ4#

 8
13781 - ROD, VALVE PUSH
13781-31011

B..BJ4#

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-56010

B..BJ4#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-56010

B..BJ4#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-56010

B..BJ4#

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-56010

B..BJ4#

 4
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

B..BJ4#

WD=1.6,CW=7.5

 5
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

B..BJ4#

WD=1.6,CW=7.5

 5
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

B..BJ4#

WD=1.6,CW=7.5

 5
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

B..BJ4#

WD=1.6,CW=7.5

 5
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-56010

B..BJ4#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-56010

B..BJ4#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-56010

B..BJ4#

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-56010

B..BJ4#

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-56010

B..BJ4#

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-56010

B..BJ4#

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
91611-40860

B..BJ4#

8-1.25PX60-30

 5
91611-40850

B..BJ4#

8-1.25PX50-30

 5
91611-60860

B..BJ4#

8-1.25PX60-30

 5
91611-60850

B..BJ4#

8-1.25PX50-30

 5
13951A - BOLT(FOR ROCKER SUPPORT SET)
91611-40860

B..BJ4#

8-1.25PX60-30

 5
91611-40850

B..BJ4#

8-1.25PX50-30

 5
91611-60860

B..BJ4#

8-1.25PX60-30

 5
91611-60850

B..BJ4#

8-1.25PX50-30

 5
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
90109-06014

B..BJ4#

 2
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08123

B..BJ4#

L=84,S=9&29

 4
90116-08087

B..BJ4#

L=81,S=9&26

 4
13951D - WASHER, SEAL(FOR HEAD COVER SET)
90201-06177

B..BJ4#

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-56010

B..BJ4#

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-56010

B..BJ4#

 3
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-56010

B..BJ4#

 3
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-56010

B..BJ4#

 1
Common parts
91611-40818
91611-61025
