Toyota Land cruiser BJ43 WATER PUMP

BJ43L-K (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8410)B,3B..ARL,GEN

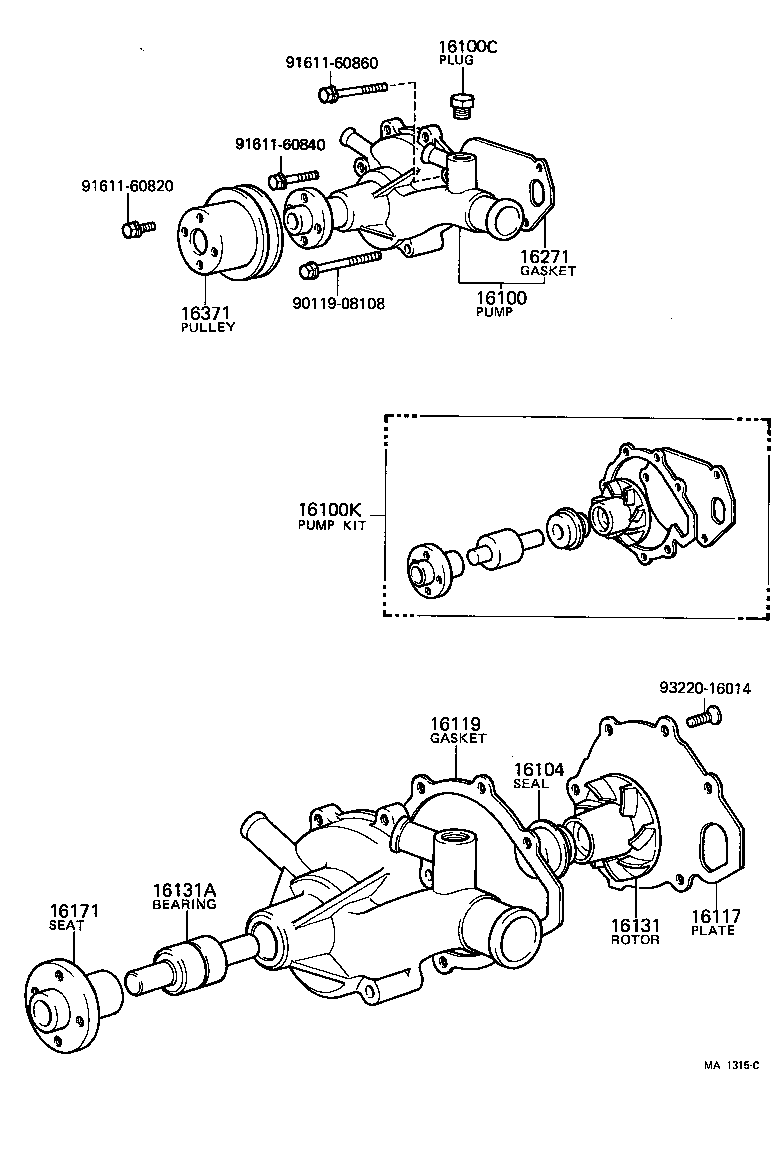

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08272
90119-08273
93220-16014

(7402-8007)B

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-59016	B..BJ4#	02/1974 - 06/1977	1
16100-59035	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16100-59017	B..BJ4# ALUMINUM BODY	06/1977 - 09/1977	1
16100-59017	B..BJ4#..ARL,GEN ALUMINUM BODY	09/1977 - 05/1979	1
16100-59055	B..BJ4#..ARL,GEN IRON BODY	05/1979 - 07/1980	1
16100C - PLUG, W/HEAD TAPER SCREW
90345-54002	B..BJ4# L/HEATER	05/1978 - 04/1980	1
90345-54002	B..BJ4# L/HEATER	04/1980 - 07/1980	1
16100K - PUMP KIT, WATER
04161-56010	B..BJ4#	02/1974 - 09/1977	1
04161-56020	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
04161-56030	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16104 - SEAL SET, WATER PUMP
16104-46011	B..BJ4#	02/1974 - 09/1977	1
16104-41110	B..BJ4#	09/1977 - 12/1979	1
16104-41110	B..BJ4#	12/1979 - 07/1980	1
16117 - PLATE, WATER PUMP
16117-56010	B..BJ4#	02/1974 - 07/1980	1
16119 - GASKET, WATER PUMP BODY
16119-56010	B..BJ4#	02/1974 - 07/1980	1
16131 - ROTOR, WATER PUMP
16131-56020	B..BJ4#	09/1977 - 07/1980	1
16131-56010	B..BJ4#	02/1974 - 09/1977	1
16131A - BEARING, WATER PUMP
90369-30005	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
90369-30015	B..BJ4# WPB16118RS	02/1974 - 09/1977	1
90369-30028	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
16171 - SEAT, WATER PUMP PULLEY
16171-38022	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16171-56010	B..BJ4#	02/1974 - 09/1977	1
16171-56010	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
16271 - GASKET, WATER PUMP
16271-56010	B..BJ4#	02/1974 - 09/1977	1
16271-56012	B..BJ4#	09/1977 - 07/1980	1
16371 - PULLEY, FAN
16173-56020	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16371-56010	B..BJ4#	02/1974 - 09/1977	1
16371-56010	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
Common parts
90119-08108
91611-60820
91611-60840
91611-60860
93220-16014

(7709-8007)B

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-59016	B..BJ4#	02/1974 - 06/1977	1
16100-59035	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16100-59017	B..BJ4# ALUMINUM BODY	06/1977 - 09/1977	1
16100-59017	B..BJ4#..ARL,GEN ALUMINUM BODY	09/1977 - 05/1979	1
16100-59055	B..BJ4#..ARL,GEN IRON BODY	05/1979 - 07/1980	1
16100K - PUMP KIT, WATER
04161-56010	B..BJ4#	02/1974 - 09/1977	1
04161-56020	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
04161-56030	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16104 - SEAL SET, WATER PUMP
16104-46011	B..BJ4#	02/1974 - 09/1977	1
16104-41110	B..BJ4#	09/1977 - 12/1979	1
16104-41110	B..BJ4#	12/1979 - 07/1980	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-56020	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16117 - PLATE, WATER PUMP
16117-56010	B..BJ4#	02/1974 - 07/1980	1
16119 - GASKET, WATER PUMP BODY
16119-56010	B..BJ4#	02/1974 - 07/1980	1
16131 - ROTOR, WATER PUMP
16131-56020	B..BJ4#	09/1977 - 07/1980	1
16131-56010	B..BJ4#	02/1974 - 09/1977	1
16131A - BEARING, WATER PUMP
90369-30005	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
90369-30015	B..BJ4# WPB16118RS	02/1974 - 09/1977	1
90369-30028	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
16171 - SEAT, WATER PUMP PULLEY
16171-38022	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16171-56010	B..BJ4#	02/1974 - 09/1977	1
16171-56010	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
16210 - COUPLING ASSY, FLUID
16210-56020	B..BJ4#..EUR,GEN	09/1977 - 01/1979	1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-33030	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	4
16271 - GASKET, WATER PUMP
16271-56010	B..BJ4#	02/1974 - 09/1977	1
16271-56012	B..BJ4#	09/1977 - 07/1980	1
16371 - PULLEY, FAN
16173-56020	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16371-56010	B..BJ4#	02/1974 - 09/1977	1
16371-56010	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
Common parts
90119-08272
90119-08273
90179-06070
93220-16014

(6903-7501)F

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-59016	B..BJ4#	02/1974 - 06/1977	1
16100-59035	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16100-59017	B..BJ4# ALUMINUM BODY	06/1977 - 09/1977	1
16100-59017	B..BJ4#..ARL,GEN ALUMINUM BODY	09/1977 - 05/1979	1
16100-59055	B..BJ4#..ARL,GEN IRON BODY	05/1979 - 07/1980	1
16100K - PUMP KIT, WATER
04161-56010	B..BJ4#	02/1974 - 09/1977	1
04161-56020	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
04161-56030	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16104 - SEAL SET, WATER PUMP
16104-46011	B..BJ4#	02/1974 - 09/1977	1
16104-41110	B..BJ4#	09/1977 - 12/1979	1
16104-41110	B..BJ4#	12/1979 - 07/1980	1
16117 - PLATE, WATER PUMP
16117-56010	B..BJ4#	02/1974 - 07/1980	1
16131 - ROTOR, WATER PUMP
16131-56020	B..BJ4#	09/1977 - 07/1980	1
16131-56010	B..BJ4#	02/1974 - 09/1977	1
16131A - BEARING, WATER PUMP
90369-30005	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
90369-30015	B..BJ4# WPB16118RS	02/1974 - 09/1977	1
90369-30028	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
16171 - SEAT, WATER PUMP PULLEY
16171-38022	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16171-56010	B..BJ4#	02/1974 - 09/1977	1
16171-56010	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
16271 - GASKET, WATER PUMP
16271-56010	B..BJ4#	02/1974 - 09/1977	1
16271-56012	B..BJ4#	09/1977 - 07/1980	1
16371 - PULLEY, FAN
16173-56020	B..BJ4#..EUR,GEN W/COUPLING	09/1977 - 01/1979	1
16371-56010	B..BJ4#	02/1974 - 09/1977	1
16371-56010	B..BJ4#..ARL,GEN	09/1977 - 07/1980	1
Common parts
90101-10269
91212-41035
93120-18016
94512-01000

BJ43L-K (1974)

(8008-8410)B,3B..ARL,GEN

(7402-8007)B

(7709-8007)B

(6903-7501)F
