BJ42RV-MCQ (1982)

Toyota Land Cruiser

Production Oct 1982 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)BJ42..ARL

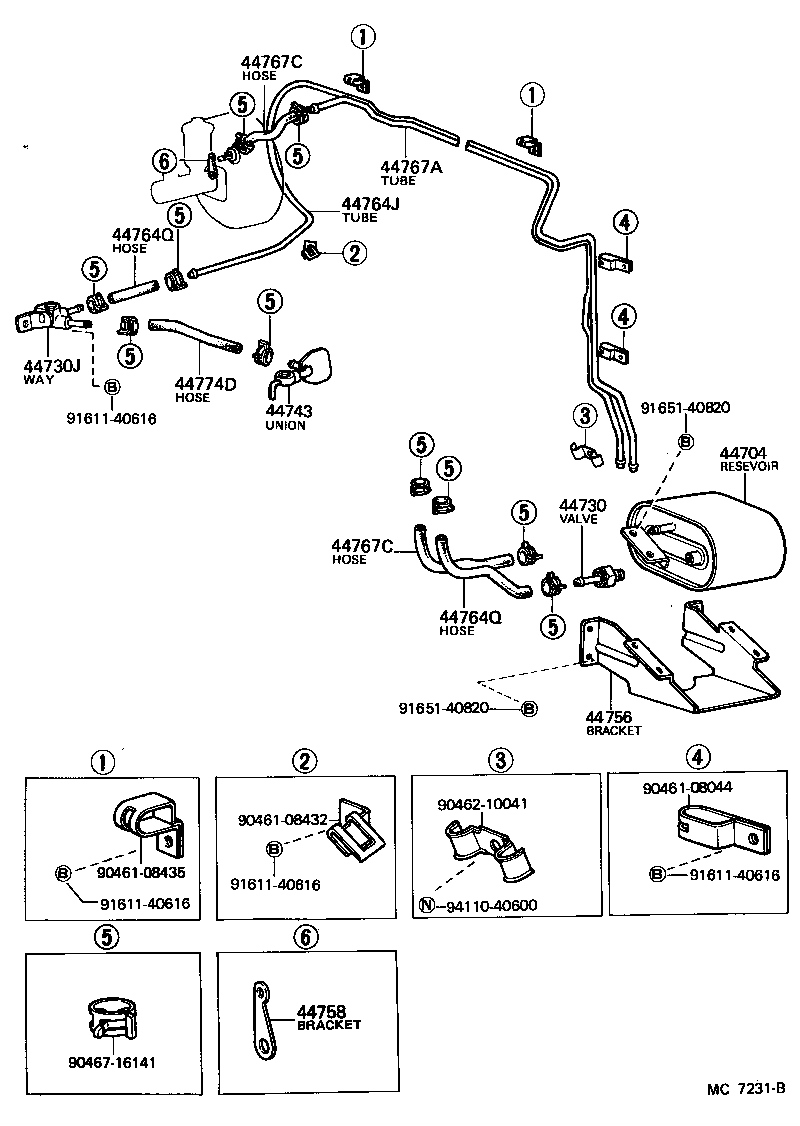

Click highlighted areas on diagram

diagram 44704 44730 44730J 44743 44756 44758 44764J 44764Q 44764Q 44767A 44767C 44767C 44774D 9046108044 9046108432 9046108435 9046210041 9046716141 9161140616 9161140616 9161140616 9161140616 9165140820 9165140820 9411040600
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60040

BJ42..ARL

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22070

BJ45,FJ40,45;BJ40,42,43,46,FJ43,HJ47..ARL,GEN

AISIN

 1
44730-22050

BJ42,45,46,HJ47..ARL,EUR

JKC

 1
44730-22050

BJ42,46..ARL,EUR

JKC

 1
44730-60040

BJ42,HJ47..ARL

RESERVOIR TANK

 1
44730J - WAY(FOR BOOSTER VACUUM)
90412-09006

BJ4#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09041

BJ4#

 1
44756 - BRACKET, VACUUM RESERVOIR
44756-60010

BJ4#,HJ47

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-35030

BJ42..ARL

FR DISC BRAKE

 1
44764J - TUBE, CONNECTOR TO VACUUM RESERVOIR
44764-60050

BJ42..ARL

 1
44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
90445-17822

BJ4#..RHD

WAY SIDE

 1
95441-09120

BJ40,42,43,45..RHD

WAY SIDE

 1
44348-60010

BJ42..ARL

RESERVOIR

 1
44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
90445-17822

BJ4#..RHD

WAY SIDE

 1
95441-09120

BJ40,42,43,45..RHD

WAY SIDE

 1
44348-60010

BJ42..ARL

RESERVOIR

 1
44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER
44768-60031

BJ4#..RHD

 1
44767C - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90445-17008

BJ4#

RESERVOIR

 1
44779-60010

BJ4#

RESERVOIR

 1
44774-36021

BJ4#..RHD

BOOSTER SIDE

 1
44767C - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90445-17008

BJ4#

RESERVOIR

 1
44779-60010

BJ4#

RESERVOIR

 1
44774-36021

BJ4#..RHD

BOOSTER SIDE

 1
44774D - HOSE, UNION TO WAY
90445-17927

BJ4#

 1
Common parts
90461-08044
90461-08432
90461-08435
90462-10041
90467-16141
91611-40616
91651-40820
94110-40600
