BJ42RV-KJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )BJ4#

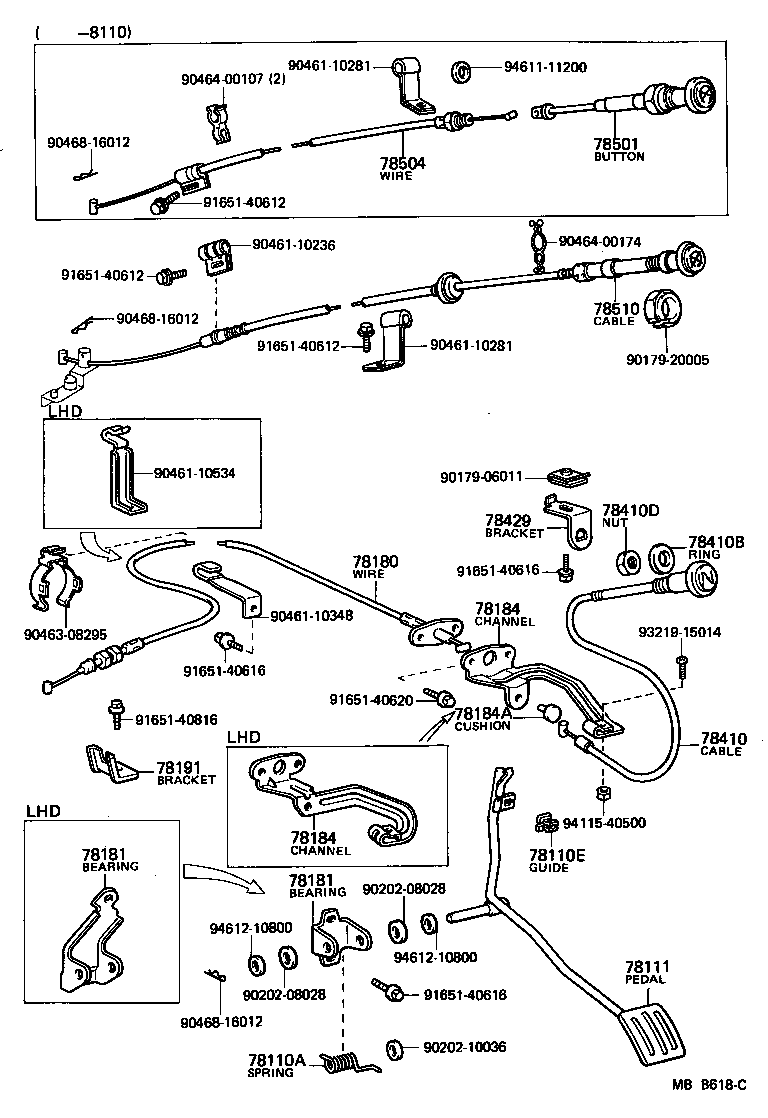

Click highlighted areas on diagram

diagram 78110A 78110E 78111 78180 78181 78181 78184 78184 78184A 78191 78410 78410B 78410D 78429 78501 78504 78510 9017906011 9017920005 9020208028 9020208028 9020210036 9046110236 9046110281 9046110281 9046110348 9046110534 9046308295 9046400107 9046400174 9046816012 9046816012 9046816012 9165140612 9165140612 9165140612 9165140616 9165140616 9165140616 9165140620 9165140816 9321915014 9411540500 9461111200 9461210800 9461210800
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26125

BJ4#;FJ40..TPC..5F;FJ4#,HJ47..RHD

 1
78110E - GUIDE, THROTTLE WIRE
78449-90300

BJ4#,FJ4#,HJ47

 1
78111 - PEDAL, ACCELERATOR
78101-90300

BJ4#,HJ47..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90803

BJ4#..RHD

 1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78181-60030

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78181-60030

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78441-90300

BJ4#,HJ47..RHD

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78441-90300

BJ4#,HJ47..RHD

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

BJ4#,FJ4#,HJ47

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78183-90A00

BJ4#

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90800

BJ4#,FJ4#,HJ47..EUR,GEN

 1
78410B - RING, THROTTLE
78311-90351

BJ4#,FJ4#,HJ47

 1
78410D - NUT, THROTTLE
90170-11002

BJ4#,FJ4#,HJ47

 1
78429 - BRACKET, THROTTLE ROD
78442-90302

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
78501 - BUTTON SUB-ASSY, STOP
78501-90800

BJ4#,HJ47..GEN

 1
78504 - WIRE SUB-ASSY, STOP FLEXIBLE
78504-90304

BJ4#..GEN

 1
Common parts
90179-06011
90179-20005
90202-08028
90202-10036
90461-10236
90461-10281
90461-10348
90461-10534
90463-08295
90464-00107
90464-00174
90468-16012
91651-40612
91651-40616
91651-40620
91651-40816
93219-15014
94115-40500
94611-11200
94612-10800
