BJ42R-KC (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

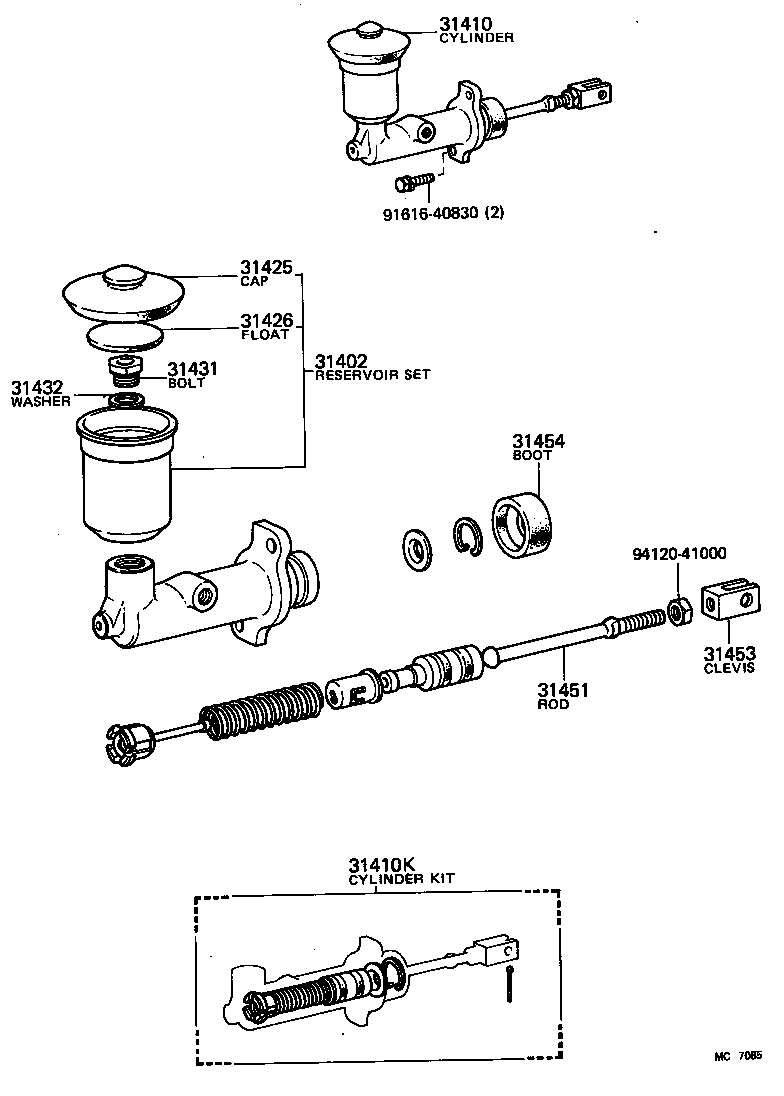

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 47202-12010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-60050 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 31410K - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-60030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 31440-35010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 31432 - WASHER, CLUTCH RESERVOIR SET BOLT | ||||
| 47232-30010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-30030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-30011 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-30030 |
BJ4#,FJ4#,HJ47 |
1 | ||
| Common parts | ||||
| 91616-40830 | ||||
| 94120-41000 | ||||
