BJ42LV-MW (1982)

Toyota Land Cruiser

Production Oct 1982 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8410)BJ4#..LHD

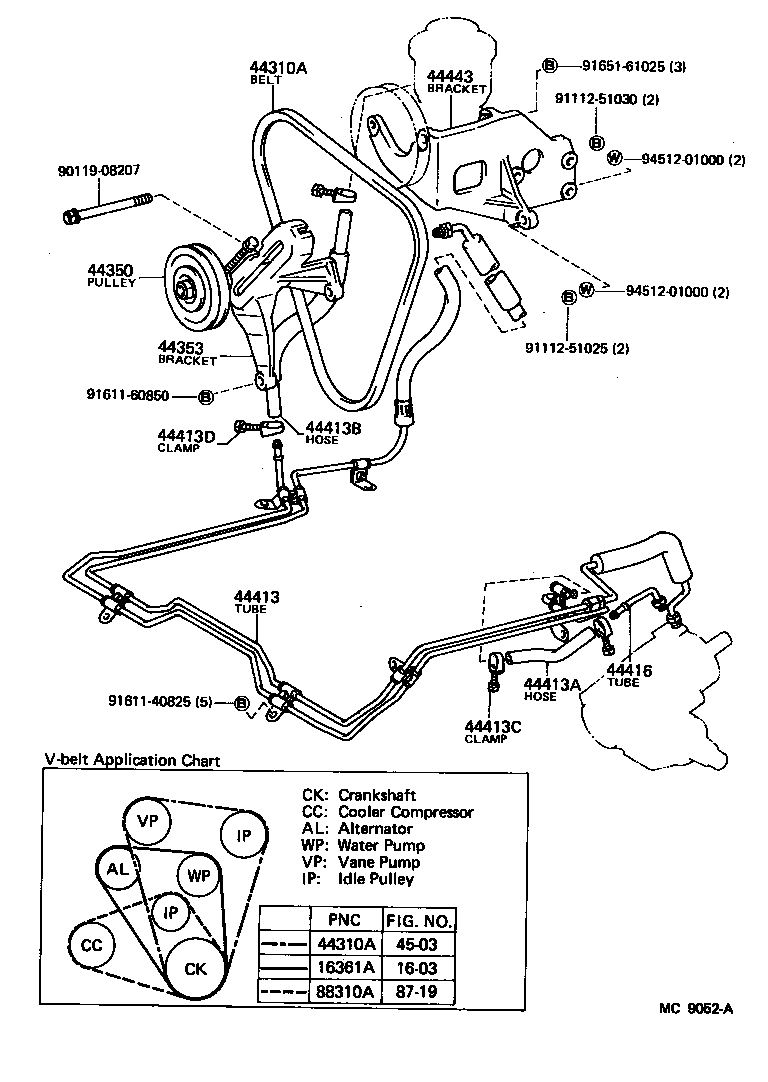

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44350 44353 44413 44413A 44413B 44413C 44413D 44416 44443 4503 8719 88310A 9011908207 9111251025 9111251030 9161140825 9161160850 9165161025 9451201000 9451201000
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99343-01195

B,3B..BJ4#

 1
44310A - BELT, V(FOR VANE PUMP)
99343-11510

BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)

 1
44310A - BELT, V(FOR VANE PUMP)
99343-11510

BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-60010

BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)

 1
44353 - BRACKET, POWER STEERING IDLE PULLEY
44381-60011

BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-60060

BJ4#..LHD

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90447-18012

BJ4#..LHD

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
44412-60020

BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60080

BJ4#..LHD

 1
44443 - BRACKET, PUMP
44443-60040

BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS)

 1
Common parts
90119-08207
91112-51025
91112-51030
91611-40825
91611-60850
91651-61025
94512-01000
Linked diagrams
1603
4503
8719
