BJ42LV-KJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )VLS

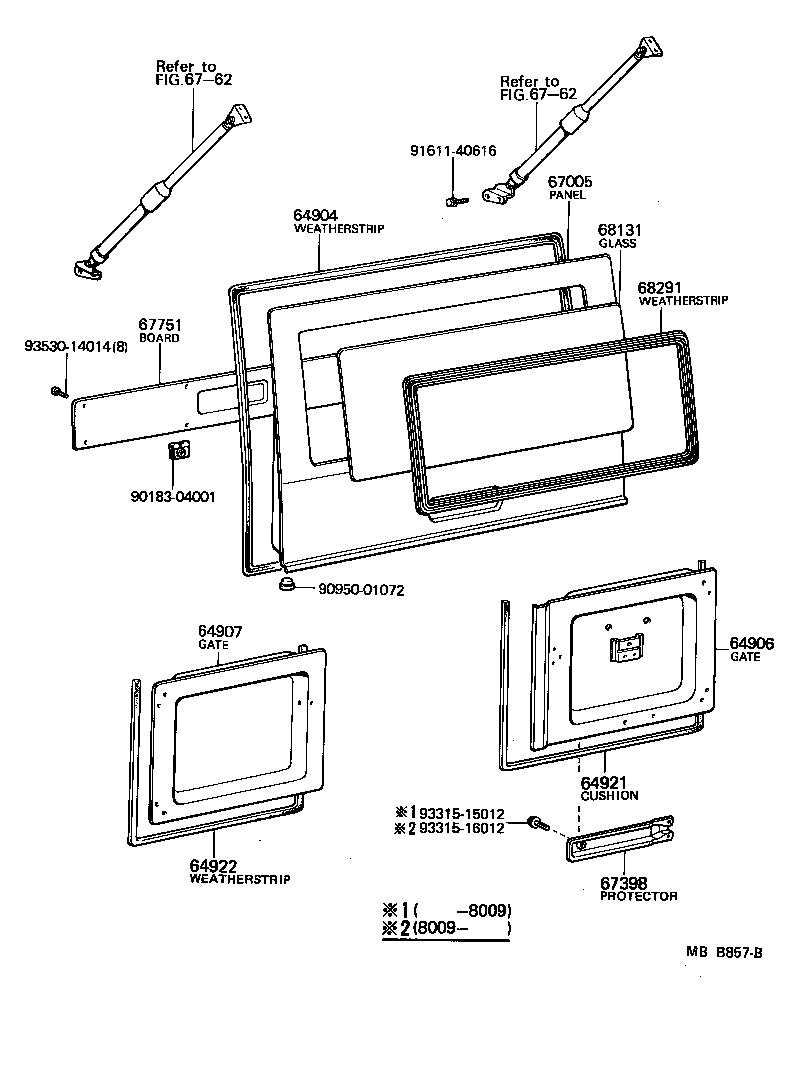

Click highlighted areas on diagram

diagram 64904 64906 64907 64921 64922 67005 67398 6762 6762 67751 68131 68291 9018304001 9095001072 9161140616 9331515012 9331516012 9353014014
Part # Description Qty Price
64904 - WEATHERSTRIP SUB-ASSY, BACK DOOR
67871-90300

BJ40,42,FJ40..VLS

 1
64906 - GATE SUB-ASSY, REAR SWING, RH
64905-90307

BJ40,42,FJ40..LHD..VLS

POSITION OF LICENSE PLATE LH

 1
67005-90803

BJ40,42,FJ40..VLS..(ARL,GEN)

 1
64907 - GATE SUB-ASSY, REAR SWING, LH
67006-90803

BJ40,42,FJ40..LHD..VLS

POSITION OF LICENSE PLATE LH

 1
64906-90308

BJ40,42,FJ40..VLS..(ARL,GEN)

 1
64921 - WEATHERSTRIP, REAR SWING GATE, RH
64921-90301

BJ40,42,FJ40..VLS..(ARL,GEN)

 1
64921-90300

BJ40,42,FJ40..LHD..VLS

POSITION OF LICENSE PLATE LH

 1
64922 - WEATHERSTRIP, REAR SWING GATE, LH
64922-90301

BJ40,42,FJ40..VLS..(ARL,GEN)

 1
64922-90300

BJ40,42,FJ40..LHD..VLS

POSITION OF LICENSE PLATE LH

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-90301

BJ40,42,FJ40..VLS

 1
67398 - PROTECTOR, BACK DOOR HARNESS
67398-90800

BJ40,42,43,46,FJ4#..TPC,VLS

 1
67751 - BOARD, BACK DOOR TRIM
67107-90300

BJ40,42,FJ40..VLS

 1
68131 - GLASS, BACK DOOR
68131-90306

BJ40,42,FJ40..VLS..(EUR,GEN)

*TT,T=4.0

 1
68131-90305

BJ40,42,FJ40..VLS

*TEM,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
62743-90300

BJ40,42,FJ40..VLS

 1
Common parts
90183-04001
90950-01072
91611-40616
93315-15012
93315-16012
93530-14014
Linked diagrams
6762
