8719 - HEATING & AIR CONDITIONING - COMPRESSOR

BJ42LV-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982

Engine 3B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008- )

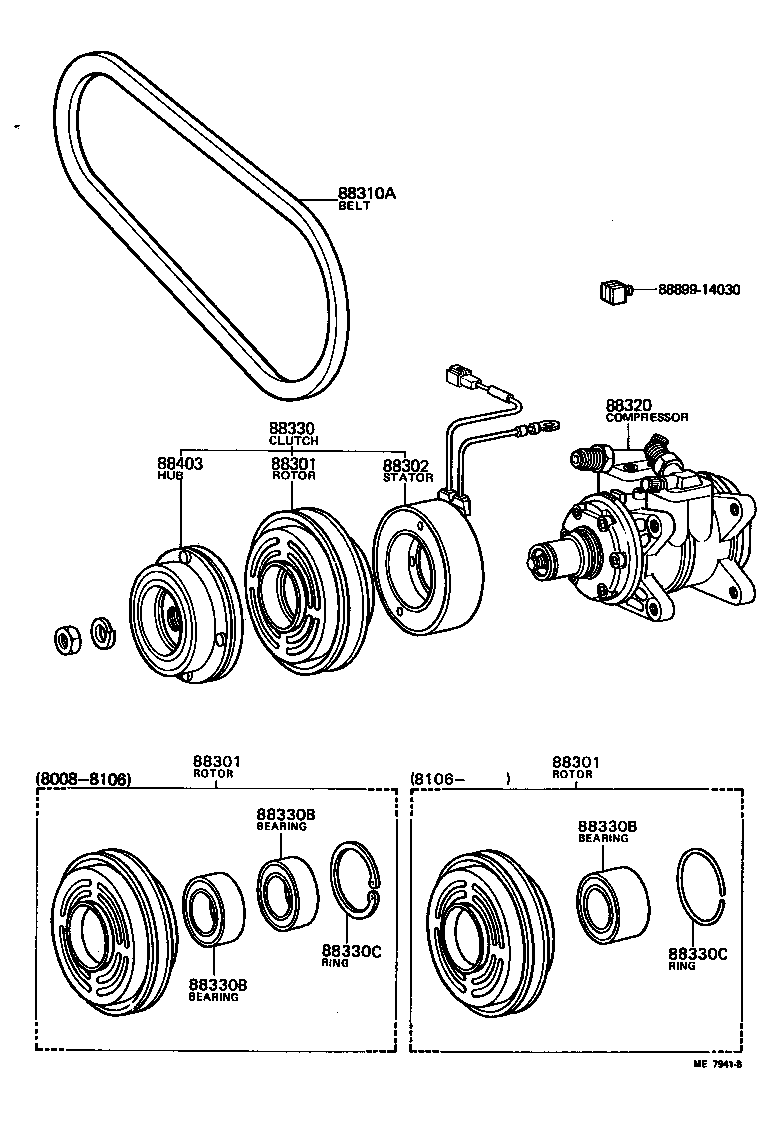

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-12040	BJ40,42,45,FJ4#..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-12040	BJ40,42,45,FJ4#..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-12040	BJ40,42,45,FJ4#..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22040	BJ40,42,45,FJ4#..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	1
88411-14050	BJ40,42,45,FJ4#,HJ47..(3F,4F)..(ARL,GEN)	06/1981 - 10/1981	1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-01050	BJ40,42,45..(PIC,V)..(ARL,GEN) L=1050	08/1980 - 10/1984	1
88320 - COMPRESSOR ASSY, COOLER
88320-60030	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88330 - CLUTCH ASSY, MAGNET
88410-14090	BJ40,42,45,FJ4#..(3F,4F)..(ARL,GEN)	06/1981 - 10/1981	1
88410-22060	BJ40,42,45,FJ4#..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	1
88330B - BEARING, MAGNET CLUTCH
90099-10117	BJ40,42,45,FJ4#,HJ47..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	2
88330B - BEARING, MAGNET CLUTCH
90099-10117	BJ40,42,45,FJ4#,HJ47..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	2
88330B - BEARING, MAGNET CLUTCH
90099-10117	BJ40,42,45,FJ4#,HJ47..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07113	BJ40,42,45,FJ4#..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07113	BJ40,42,45,FJ4#..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-26030	BJ40,42,45,FJ4#..(3F,4F)..(ARL,GEN)	08/1980 - 06/1981	1
Common parts
88899-14030

(8008- )

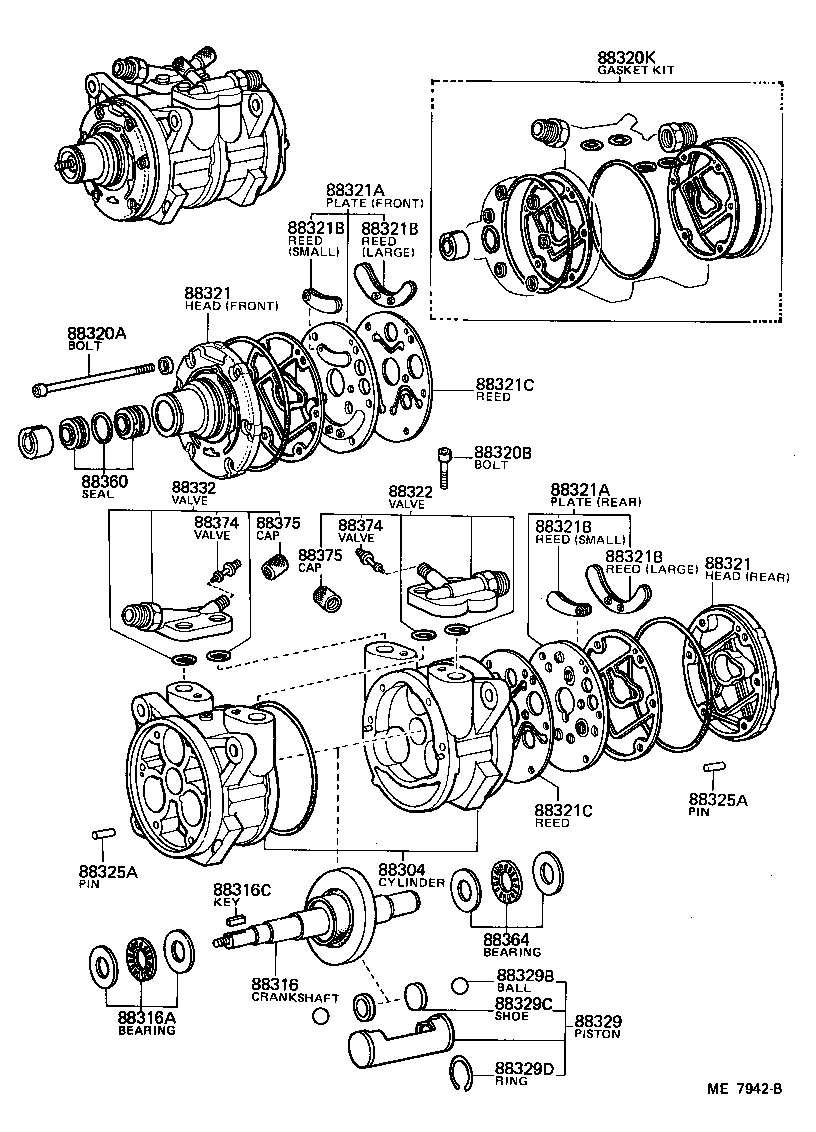

Click highlighted areas on diagram

Part #	Description	Period	Qty
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-60010	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-20070	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-20050	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13011	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	1
88320A - BOLT, THROUGH
90099-04926	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	6
88320B - BOLT, SERVICE VALVE
90099-04905	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	4
88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL
04881-30030	BJ40,42,45,HJ47..ARL,GEN	08/1980 - 10/1984	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-20061	BJ40,42,45,HJ47..ARL,GEN FR	08/1980 - 10/1982	1
88322-20040	BJ40,42,45,FJ4#,HJ47..ARL,GEN RR	08/1980 - 04/1986	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-20061	BJ40,42,45,HJ47..ARL,GEN FR	08/1980 - 10/1982	1
88322-20040	BJ40,42,45,FJ4#,HJ47..ARL,GEN RR	08/1980 - 04/1986	1
88321A - PLATE SUB-ASSY, VALVE
88306-20040	BJ40,42,45,FJ4#,HJ47..ARL,GEN RR	08/1980 - 04/1986	1
88305-20070	BJ40,42,45,FJ4#,HJ47..ARL,GEN FR	08/1980 - 04/1986	1
88321A - PLATE SUB-ASSY, VALVE
88306-20040	BJ40,42,45,FJ4#,HJ47..ARL,GEN RR	08/1980 - 04/1986	1
88305-20070	BJ40,42,45,FJ4#,HJ47..ARL,GEN FR	08/1980 - 04/1986	1
88321B - REED SUB-ASSY, VALVE
88307-20060	BJ40,42,45,FJ4#,HJ47..ARL,GEN LARGE	08/1980 - 04/1986	2
88307-20050	BJ40,42,45,FJ4#,HJ47..ARL,GEN SMALL	08/1980 - 04/1986	2
88321B - REED SUB-ASSY, VALVE
88307-20060	BJ40,42,45,FJ4#,HJ47..ARL,GEN LARGE	08/1980 - 04/1986	2
88307-20050	BJ40,42,45,FJ4#,HJ47..ARL,GEN SMALL	08/1980 - 04/1986	2
88321B - REED SUB-ASSY, VALVE
88307-20060	BJ40,42,45,FJ4#,HJ47..ARL,GEN LARGE	08/1980 - 04/1986	2
88307-20050	BJ40,42,45,FJ4#,HJ47..ARL,GEN SMALL	08/1980 - 04/1986	2
88321B - REED SUB-ASSY, VALVE
88307-20060	BJ40,42,45,FJ4#,HJ47..ARL,GEN LARGE	08/1980 - 04/1986	2
88307-20050	BJ40,42,45,FJ4#,HJ47..ARL,GEN SMALL	08/1980 - 04/1986	2
88321C - REED, SUCTION VALVE
88343-20040	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	2
88321C - REED, SUCTION VALVE
88343-20040	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-20100	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88325A - PIN, CYLINDER BLOCK
90099-08058	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	4
88325A - PIN, CYLINDER BLOCK
90099-08058	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-20050	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	3
88329B - BALL, PISTON
88312-30250	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	6
88329C - SHOE, PISTON
88313-20070	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	6
88329D - RING, PISTON
88317-20030	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	6
88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88372-30280	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-30270	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-20050	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	2
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30260	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30260	BJ40,42,45,FJ4#,HJ47..ARL,GEN	08/1980 - 04/1986	2

(8008- )

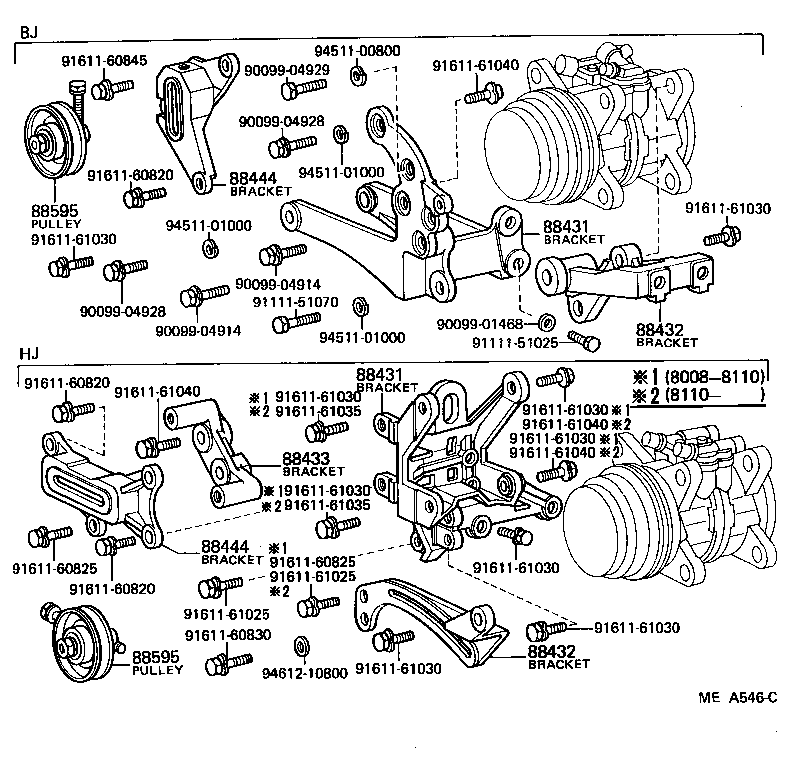

Click highlighted areas on diagram

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60011	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60011	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88431-60021	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88431-60021	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88444 - BRACKET, IDLE PULLEY
88444-60011	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88444 - BRACKET, IDLE PULLEY
88444-60011	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16010	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16010	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
Common parts
90099-01468
90099-04914
90099-04928
90099-04929
91111-51025
91111-51070
91611-60820
91611-60825
91611-60830
91611-60845
91611-61025
91611-61030
91611-61035
91611-61040
94511-00800
94511-01000
94612-10800

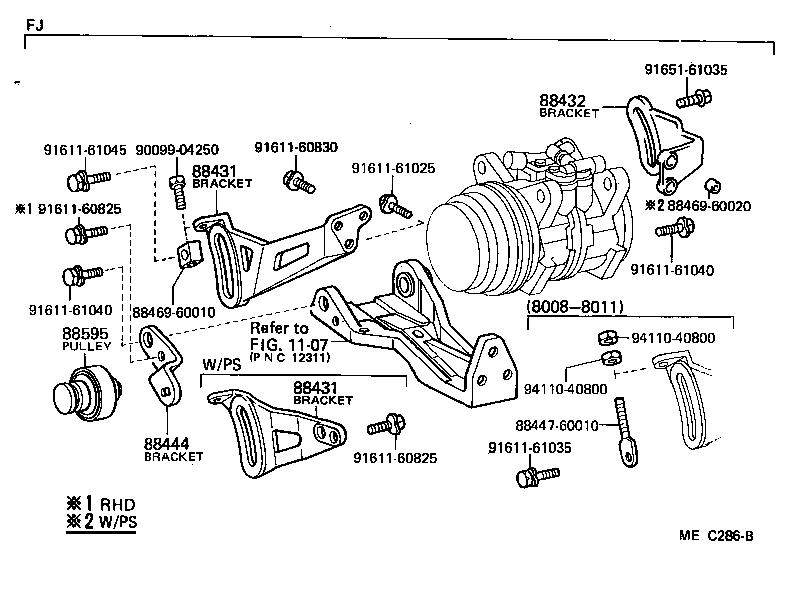

(8008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60011	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60011	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88431-60021	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88444 - BRACKET, IDLE PULLEY
88444-60011	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16010	BJ40,42,45..(PIC,V)..(ARL,GEN)	08/1980 - 10/1984	1
Common parts
88447-60010
88469-60010
88469-60020
90099-04250
91611-60825
91611-60830
91611-61025
91611-61035
91611-61040
91611-61045
91651-61035
94110-40800
