BJ42LV-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )LHD

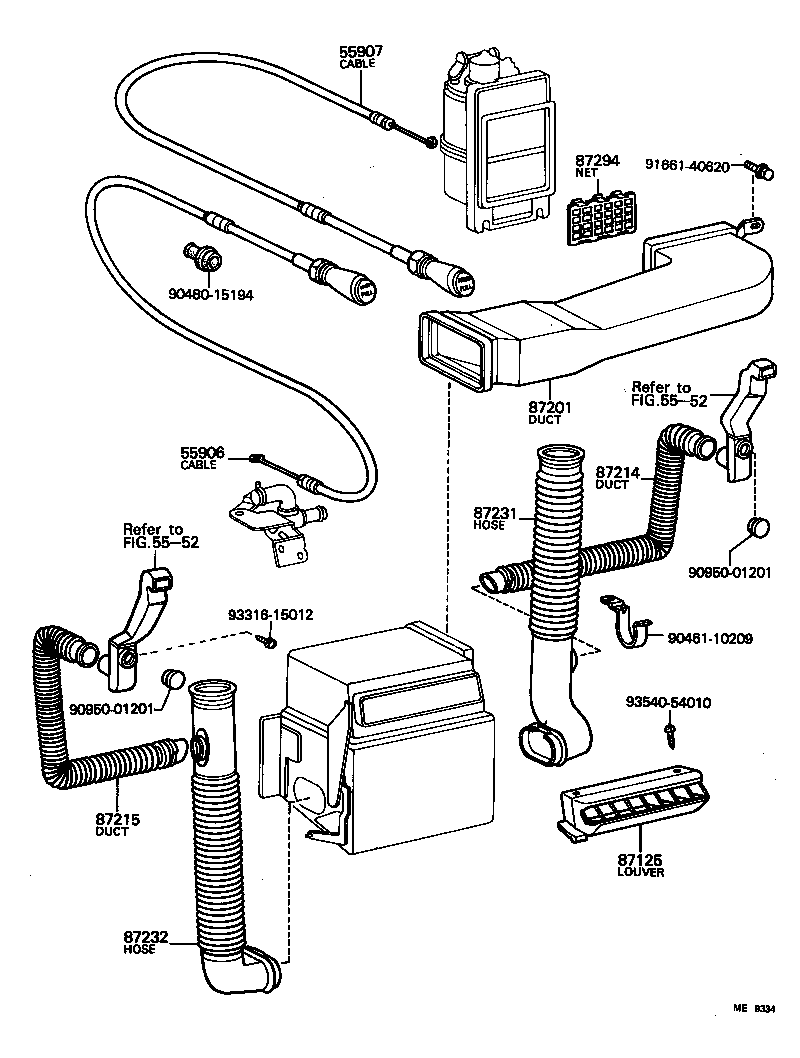

Click highlighted areas on diagram

diagram 5552 5552 55906 55907 87125 87201 87214 87215 87231 87232 87294 9046110209 9048015194 9095001201 9095001201 9166140620 9331615012 9354054010
Part # Description Qty Price
55906 - CABLE SUB-ASSY, HEATER CONTROL
87286-60151

BJ4#,HJ47..LHD

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
87296-60033

BJ4#,FJ4#,HJ47

 1
87125 - LOUVER, VENTILATION
88960-60060

BJ42,45,46..LHD..GEN

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-60031

BJ4#,FJ40,45,HJ47..LHD..(3F,4F)

 1
87211-60160

BJ40,42,45..LHD..(PIC,V)..GEN

W/COOLER

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-60032

BJ4#,FJ4#,HJ47..LHD

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-60102

BJ4#,FJ4#,HJ47..LHD

 1
87294 - NET, AIR DUCT
87294-60031

BJ4#,FJ4#,HJ47

 1
Common parts
90461-10209
90480-15194
90950-01201
91661-40620
93316-15012
93540-54010
Linked diagrams
5552
