BJ42LV-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )TP,V

Click highlighted areas on diagram

diagram 77014 77022 77022A 77022A 77022A 77022C 77031 77031B 77100 77100A 77100B 77100D 77201 77206 77206 77206G 77206G 77209 77213 77251 77308 77308A 77358 77519 77606 77611 77611 77631 77632 77652 77701T 9011910153 9011910155 9024010011 9024010011 9046062033 9046062033 9046112138 9046720134 9046720134 9161140612 9161160820 9161161020 9166540616 9166540620 9331515012 9331515012 9331616016 9331914010 9331914010 9538102520 9538102520 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
77014 - STRAINER SUB-ASSY, FUEL
77014-60011

BJ4#,FJ4#,HJ47

 1
77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77193-60013

BJ4#,FJ4#,HJ47

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06020

BJ4#,FJ4#,HJ47..TP,V

*H,L=150

 3
95332-06010

BJ4#,FJ4#,HJ47..TP,V

*H,L=80

 3
95332-06010

BJ4#,FJ4#,HJ47

*H,L=60

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06020

BJ4#,FJ4#,HJ47..TP,V

*H,L=150

 3
95332-06010

BJ4#,FJ4#,HJ47..TP,V

*H,L=80

 3
95332-06010

BJ4#,FJ4#,HJ47

*H,L=60

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06020

BJ4#,FJ4#,HJ47..TP,V

*H,L=150

 3
95332-06010

BJ4#,FJ4#,HJ47..TP,V

*H,L=80

 3
95332-06010

BJ4#,FJ4#,HJ47

*H,L=60

 1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06040

BJ4#,FJ4#,HJ47..TP,V

*H,L=360

 1
77031 - CAP ASSY, FUEL TANK
77310-12090

BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F)

 1
77310-12100

BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F)

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

BJ4#,FJ4#,HJ47..TP,V

 1
77100 - TANK ASSY, FUEL
77100-60045

BJ4#,FJ4#,HJ47

 1
77100A - PLUG(FOR FUEL TANK)
90341-24036

BJ4#,FJ4#,HJ47

 1
77100B - GASKET(FOR FUEL TANK)
90430-24047

BJ4#,FJ4#,HJ47

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-22016

BJ4#,FJ4#,HJ47..TP,V

L=220

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60052

BJ4#,FJ4#,HJ47..TP,V

 1
77201-60062

BJ4#,FJ4#,HJ47..TP,V

W/FUEL STRAINER

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-60030

BJ4#,HJ47

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-60030

BJ4#,HJ47

 1
77206G - GASKET (FOR FUEL TANK SUCTION TUBE)
83361-20030

BJ4#,FJ4#,HJ47

 1
77206G - GASKET (FOR FUEL TANK SUCTION TUBE)
83361-20030

BJ4#,FJ4#,HJ47

 1
77209 - CONNECTOR SUB-ASSY, FUEL TUBE
77209-60020

BJ4#,FJ4#,HJ47..TP,V

 1
77213 - HOSE, FUEL TANK SUB INLET
77217-60015

BJ4#,FJ4#,HJ47..TP,V

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77293-60030

BJ4#,FJ4#,HJ47

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
61802-90302

BJ4#,FJ4#,HJ47..TP,V

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-03078

BJ4#,FJ4#,HJ47..TP,V

 1
77358 - RETAINER, FUEL INLET CUSHION
61824-90302

BJ4#,FJ4#,HJ47..TP,V

 1
77519 - SPACER, FUEL TANK BRACKET
77519-60020

BJ4#,FJ4#,HJ47

T=4.5

 1
77519-60010

BJ4#,FJ4#,HJ47

T=1.0

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-60020

BJ4#,FJ4#,HJ47..(TP,V)..(3F,4F)

 1
77606-60020

BJ40,42,43,46,FJ40,43

 1
77611 - BAND, FUEL TANK
77601-60041

BJ4#,FJ4#,HJ47..TP,V

RH

 1
77602-60021

BJ4#,FJ4#,HJ47..TP,V

LH

 1
77611 - BAND, FUEL TANK
77601-60041

BJ4#,FJ4#,HJ47..TP,V

RH

 1
77602-60021

BJ4#,FJ4#,HJ47..TP,V

LH

 1
77631 - BRACKET, FUEL TANK, NO.1
77614-60030

BJ4#,FJ4#,HJ47

 1
77632 - BRACKET, FUEL TANK, NO.2
77615-60020

BJ4#,FJ4#,HJ47

 1
77652 - CUSHION, FUEL TANK, NO.1
77654-60010

BJ4#,FJ4#,HJ47

100X100

 4
77651-60020

BJ4#,FJ4#,HJ47

750X100

 1
77652-60011

BJ4#,FJ4#,HJ47

230X80

 2
77653-60010

BJ4#,FJ4#,HJ47

350X80

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

BJ4#,FJ4#,HJ47

 1
Common parts
90119-10153
90119-10155
90240-10011
90460-62033
90461-12138
90467-20134
91611-40612
91611-60820
91611-61020
91665-40616
91665-40620
93315-15012
93316-16016
93319-14010
95381-02520
96132-30600

(8008- )

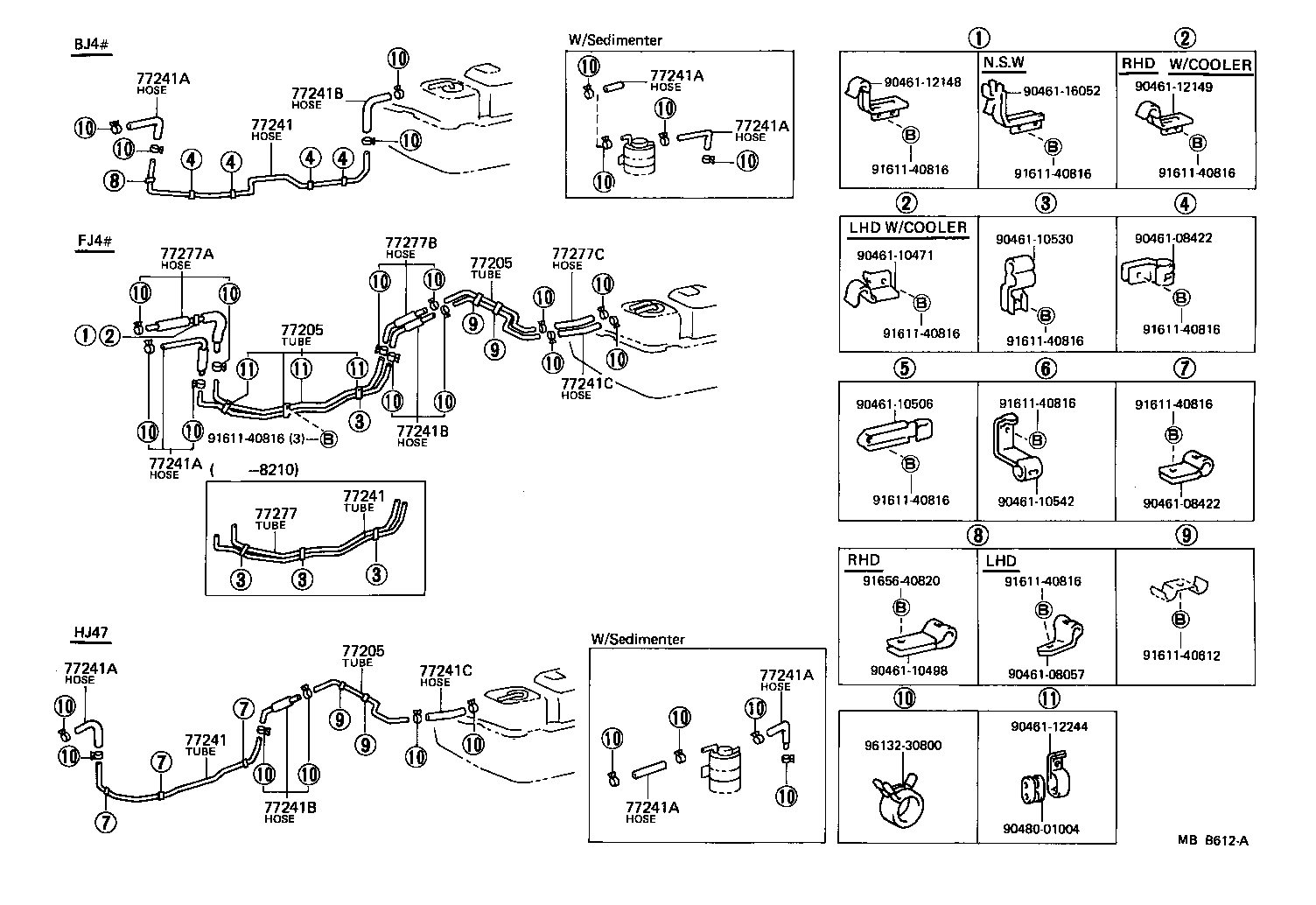

Click highlighted areas on diagram

diagram 77205 77205 77205 77241 77241 77241 77241A 77241A 77241A 77241A 77241A 77241A 77241A 77241B 77241B 77241B 77241C 77241C 77277 77277A 77277B 77277C 9046108057 9046108422 9046108422 9046110471 9046110498 9046110506 9046110530 9046110542 9046112148 9046112149 9046112244 9046116052 9048001004 9161140612 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9165640820 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-60131

BJ40,42,43,46..LHD

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-60131

BJ40,42,43,46..LHD

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-60131

BJ40,42,43,46..LHD

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,TUBE X ENGINE

 1
95332-08030

BJ4#

*H,L=280,ID=7.6,TUBE X SEDIMENTER

 1
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,SEGIMENTA X ENGINE

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,TUBE X ENGINE

 1
95332-08030

BJ4#

*H,L=280,ID=7.6,TUBE X SEDIMENTER

 1
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,SEGIMENTA X ENGINE

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,TUBE X ENGINE

 1
95332-08030

BJ4#

*H,L=280,ID=7.6,TUBE X SEDIMENTER

 1
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,SEGIMENTA X ENGINE

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,TUBE X ENGINE

 1
95332-08030

BJ4#

*H,L=280,ID=7.6,TUBE X SEDIMENTER

 1
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,SEGIMENTA X ENGINE

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,TUBE X ENGINE

 1
95332-08030

BJ4#

*H,L=280,ID=7.6,TUBE X SEDIMENTER

 1
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,SEGIMENTA X ENGINE

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,TUBE X ENGINE

 1
95332-08030

BJ4#

*H,L=280,ID=7.6,TUBE X SEDIMENTER

 1
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,SEGIMENTA X ENGINE

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,TUBE X ENGINE

 1
95332-08030

BJ4#

*H,L=280,ID=7.6,TUBE X SEDIMENTER

 1
95332-08040

BJ4#..LHD

*H,L=380,ID=7.6,SEGIMENTA X ENGINE

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#

*H,L=400,ID=7.6,W/SEDIMENTER

 1
95332-08040

BJ4#

*H,L=340,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#

*H,L=400,ID=7.6,W/SEDIMENTER

 1
95332-08040

BJ4#

*H,L=340,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040

BJ4#

*H,L=400,ID=7.6,W/SEDIMENTER

 1
95332-08040

BJ4#

*H,L=340,ID=7.6

 1
Common parts
90461-08057
90461-08422
90461-10471
90461-10498
90461-10506
90461-10530
90461-10542
90461-12148
90461-12149
90461-12244
90461-16052
90480-01004
91611-40612
91611-40816
91656-40820
96132-30800

(8008- )

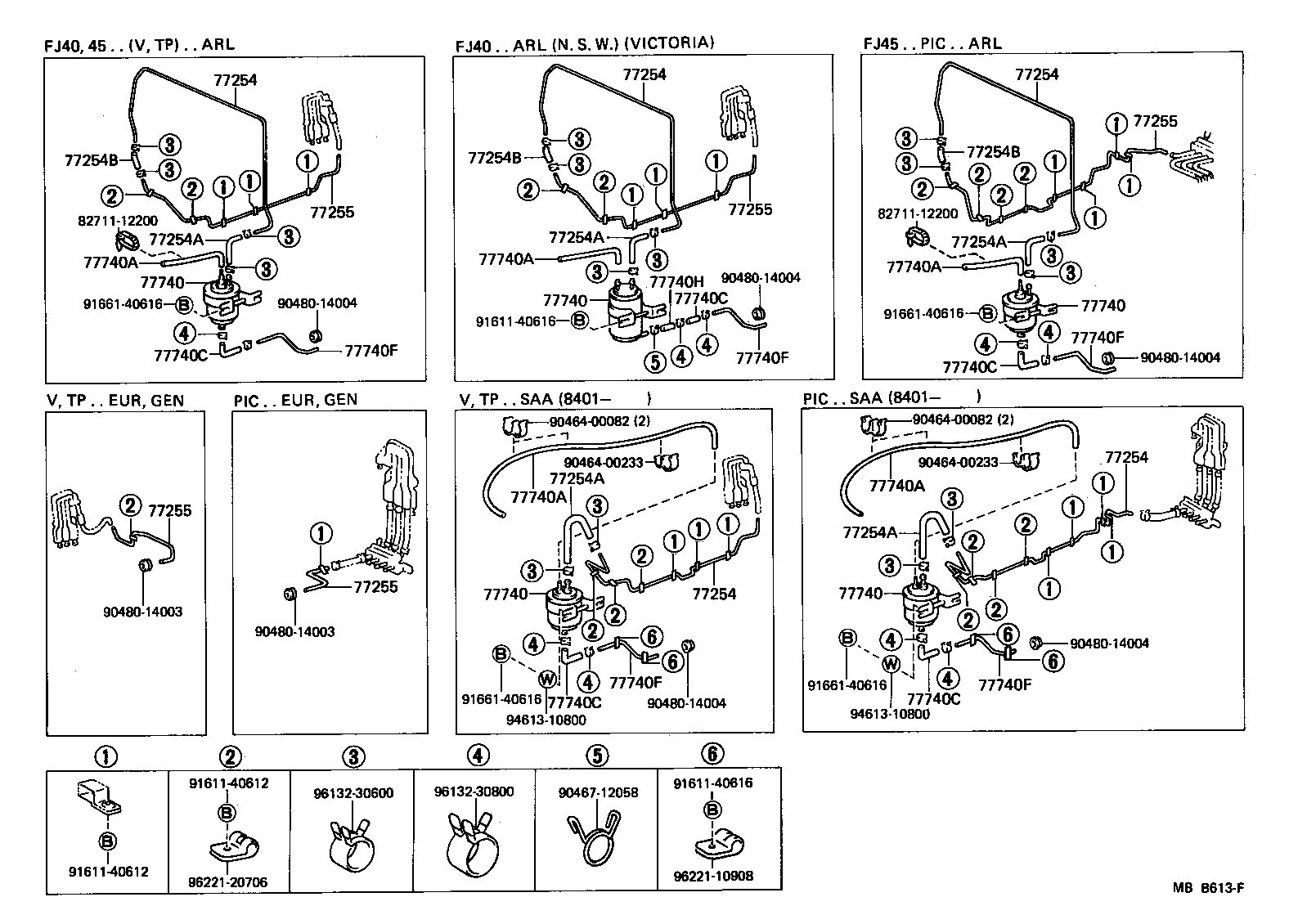

Click highlighted areas on diagram

diagram 77254 77254 77254 77254 77254 77254A 77254A 77254A 77254A 77254A 77254B 77254B 77254B 77255 77255 77255 77255 77255 77740 77740 77740 77740 77740 77740A 77740A 77740A 77740A 77740A 77740C 77740C 77740C 77740C 77740C 77740F 77740F 77740F 77740F 77740F 77740H 8271112200 8271112200 9046400082 9046400082 9046400233 9046400233 9046712058 9048014003 9048014003 9048014004 9048014004 9048014004 9048014004 9048014004 9161140612 9161140612 9161140616 9161140616 9166140616 9166140616 9166140616 9166140616 9461310800 9461310800 9613230600 9613230800 9622110908 9622120706
Part # Description Qty Price
77255 - TUBE, FUEL EMISSION, NO.2
77244-60030

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
77255 - TUBE, FUEL EMISSION, NO.2
77244-60030

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
77255 - TUBE, FUEL EMISSION, NO.2
77244-60030

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
77255 - TUBE, FUEL EMISSION, NO.2
77244-60030

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
77255 - TUBE, FUEL EMISSION, NO.2
77244-60030

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

 1
Common parts
82711-12200
90464-00082
90464-00233
90467-12058
90480-14003
90480-14004
91611-40612
91611-40616
91661-40616
94613-10800
96132-30600
96132-30800
96221-10908
96221-20706
