BJ42LV-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)3B

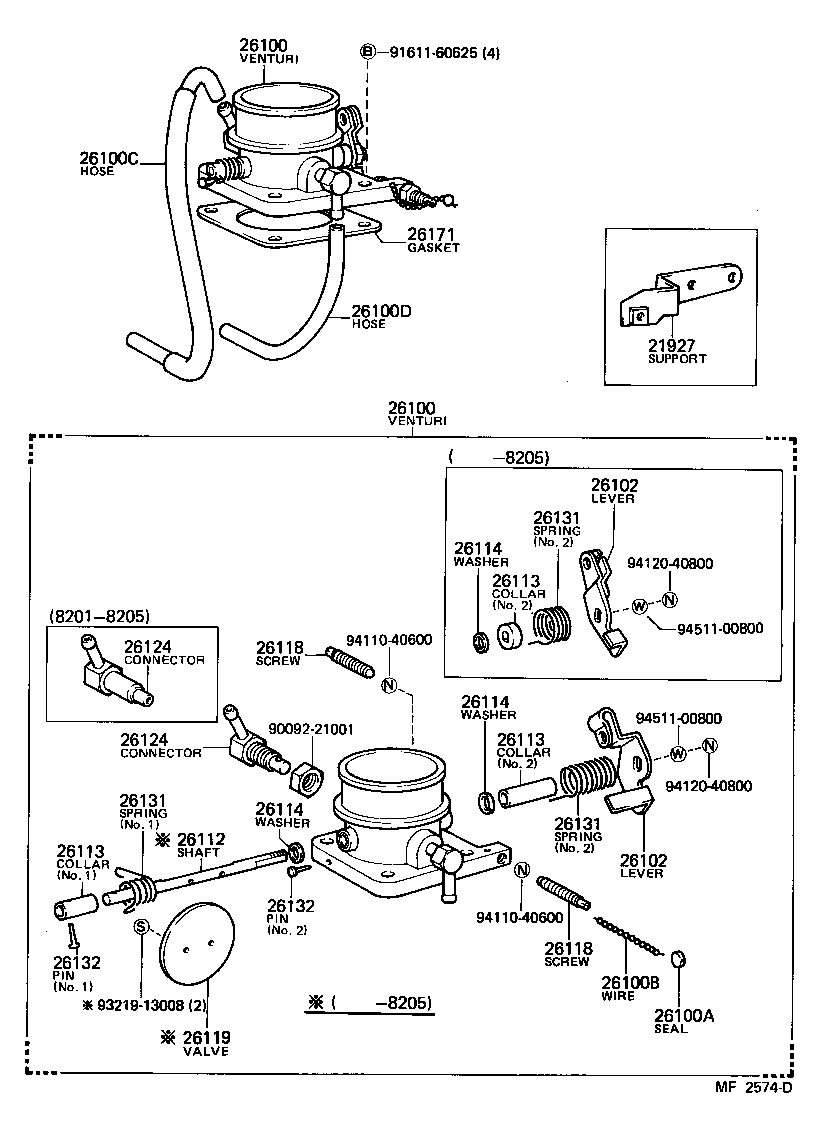

Click highlighted areas on diagram

diagram 21927 26100 26100 26100A 26100B 26100C 26100D 26102 26102 26112 26113 26113 26113 26114 26114 26114 26118 26118 26119 26124 26124 26131 26131 26131 26132 26132 26171 9009221001 9161160625 9321913008 9411040600 9411040600 9412040800 9412040800 9451100800 9451100800
Part # Description Qty Price
21927 - SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK)
21927-56020

B,3B..BJ4#..GEN

W/O EDIC

 1
26100 - VENTURI ASSY
26100-58020

3B..BJ42,45,46

 1
26100 - VENTURI ASSY
26100-58020

3B..BJ42,45,46

 1
26100A - SEAL, LEAD
22354-77050

B,3B..BJ4#

 1
26100B - WIRE, SEAL
22355-36010

B,3B..BJ4#

 1
26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)
90447-12016

B,3B..BJ4#

 1
26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)
90447-12001

B,3B..BJ4#

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-58020

B,3B..BJ4#

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-58020

B,3B..BJ4#

 1
26112 - SHAFT, VENTURI THROTTLE VALVE
26112-56050

3B..BJ42,45,46

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-58020

B,3B..BJ4#

N0.2

 1
26113-56050

3B..BJ42,45,46

NO.1

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-58020

B,3B..BJ4#

N0.2

 1
26113-56050

3B..BJ42,45,46

NO.1

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-58020

B,3B..BJ4#

N0.2

 1
26113-56050

3B..BJ42,45,46

NO.1

 1
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,3B..BJ4#

T=0.1,T=0.1

 2
26115-76010

B,3B..BJ4#

T=0.2,T=0.2

 2
26116-76010

B,3B..BJ4#

T=0.5,T=0.5

 2
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,3B..BJ4#

T=0.1,T=0.1

 2
26115-76010

B,3B..BJ4#

T=0.2,T=0.2

 2
26116-76010

B,3B..BJ4#

T=0.5,T=0.5

 2
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,3B..BJ4#

T=0.1,T=0.1

 2
26115-76010

B,3B..BJ4#

T=0.2,T=0.2

 2
26116-76010

B,3B..BJ4#

T=0.5,T=0.5

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

3B..BJ42,45,46

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

3B..BJ42,45,46

 2
26119 - VALVE, VENTURI THROTTLE
26119-56030

3B..BJ42,45,46

 1
26124 - CONNECTOR, VENTURI PIPE
26124-58021

3B..BJ42,45,46

 1
26124-58020

3B..BJ42,45,46

 1
26124 - CONNECTOR, VENTURI PIPE
26124-58021

3B..BJ42,45,46

 1
26124-58020

3B..BJ42,45,46

 1
26131 - SPRING, RETURN
26131-58020

3B..BJ42,45,46

NO.2

 1
26131-58022

3B..BJ42,45,46

NO.1

 1
26131 - SPRING, RETURN
26131-58020

3B..BJ42,45,46

NO.2

 1
26131-58022

3B..BJ42,45,46

NO.1

 1
26131 - SPRING, RETURN
26131-58020

3B..BJ42,45,46

NO.2

 1
26131-58022

3B..BJ42,45,46

NO.1

 1
26132 - PIN
26132-56011

B,3B..BJ4#

N0.2

 1
26132-56010

B,3B..BJ4#

NO.1

 1
26132 - PIN
26132-56011

B,3B..BJ4#

N0.2

 1
26132-56010

B,3B..BJ4#

NO.1

 1
26171 - GASKET, VENTURI
26171-56020

B,3B..BJ4#

 1
Common parts
90092-21001
91611-60625
93219-13008
94110-40600
94120-40800
94511-00800

(8008-8410)B

Click highlighted areas on diagram

diagram 21927 26100 26100 26100A 26100B 26100C 26100D 26102 26102 26112 26113 26113 26113 26114 26114 26114 26118 26118 26119 26124 26124 26131 26131 26132 26132 26171 9009221001 9161160625 9321913008 9411040600 9411040600 9412040800 9412040800 9451100800 9451100800
Part # Description Qty Price
21927 - SUPPORT, WIRE(FOR ACCELERATOR BELLCRANK)
21927-56020

B,3B..BJ4#..GEN

W/O EDIC

 1
26100 - VENTURI ASSY
26100-58020

3B..BJ42,45,46

 1
26100 - VENTURI ASSY
26100-58020

3B..BJ42,45,46

 1
26100A - SEAL, LEAD
22354-77050

B,3B..BJ4#

 1
26100B - WIRE, SEAL
22355-36010

B,3B..BJ4#

 1
26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)
90447-12016

B,3B..BJ4#

 1
26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)
90447-12001

B,3B..BJ4#

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-58020

B,3B..BJ4#

 1
26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26102-58020

B,3B..BJ4#

 1
26112 - SHAFT, VENTURI THROTTLE VALVE
26112-56050

3B..BJ42,45,46

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-58020

B,3B..BJ4#

N0.2

 1
26113-56050

3B..BJ42,45,46

NO.1

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-58020

B,3B..BJ4#

N0.2

 1
26113-56050

3B..BJ42,45,46

NO.1

 1
26113 - COLLAR, THROTTLE VALVE SHAFT
26113-58020

B,3B..BJ4#

N0.2

 1
26113-56050

3B..BJ42,45,46

NO.1

 1
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,3B..BJ4#

T=0.1,T=0.1

 2
26115-76010

B,3B..BJ4#

T=0.2,T=0.2

 2
26116-76010

B,3B..BJ4#

T=0.5,T=0.5

 2
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,3B..BJ4#

T=0.1,T=0.1

 2
26115-76010

B,3B..BJ4#

T=0.2,T=0.2

 2
26116-76010

B,3B..BJ4#

T=0.5,T=0.5

 2
26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING
26114-76010

B,3B..BJ4#

T=0.1,T=0.1

 2
26115-76010

B,3B..BJ4#

T=0.2,T=0.2

 2
26116-76010

B,3B..BJ4#

T=0.5,T=0.5

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

3B..BJ42,45,46

 2
26118 - SCREW, STOP PLATE ADJUSTING
26118-48014

3B..BJ42,45,46

 2
26119 - VALVE, VENTURI THROTTLE
26119-56030

3B..BJ42,45,46

 1
26124 - CONNECTOR, VENTURI PIPE
26124-58021

3B..BJ42,45,46

 1
26124-58020

3B..BJ42,45,46

 1
26124 - CONNECTOR, VENTURI PIPE
26124-58021

3B..BJ42,45,46

 1
26124-58020

3B..BJ42,45,46

 1
26131 - SPRING, RETURN
26131-58020

3B..BJ42,45,46

NO.2

 1
26131-58022

3B..BJ42,45,46

NO.1

 1
26131 - SPRING, RETURN
26131-58020

3B..BJ42,45,46

NO.2

 1
26131-58022

3B..BJ42,45,46

NO.1

 1
26132 - PIN
26132-56011

B,3B..BJ4#

N0.2

 1
26132-56010

B,3B..BJ4#

NO.1

 1
26132 - PIN
26132-56011

B,3B..BJ4#

N0.2

 1
26132-56010

B,3B..BJ4#

NO.1

 1
26171 - GASKET, VENTURI
26171-56020

B,3B..BJ4#

 1
Common parts
90092-21001
91611-60625
93219-13008
94110-40600
94120-40800
94511-00800
