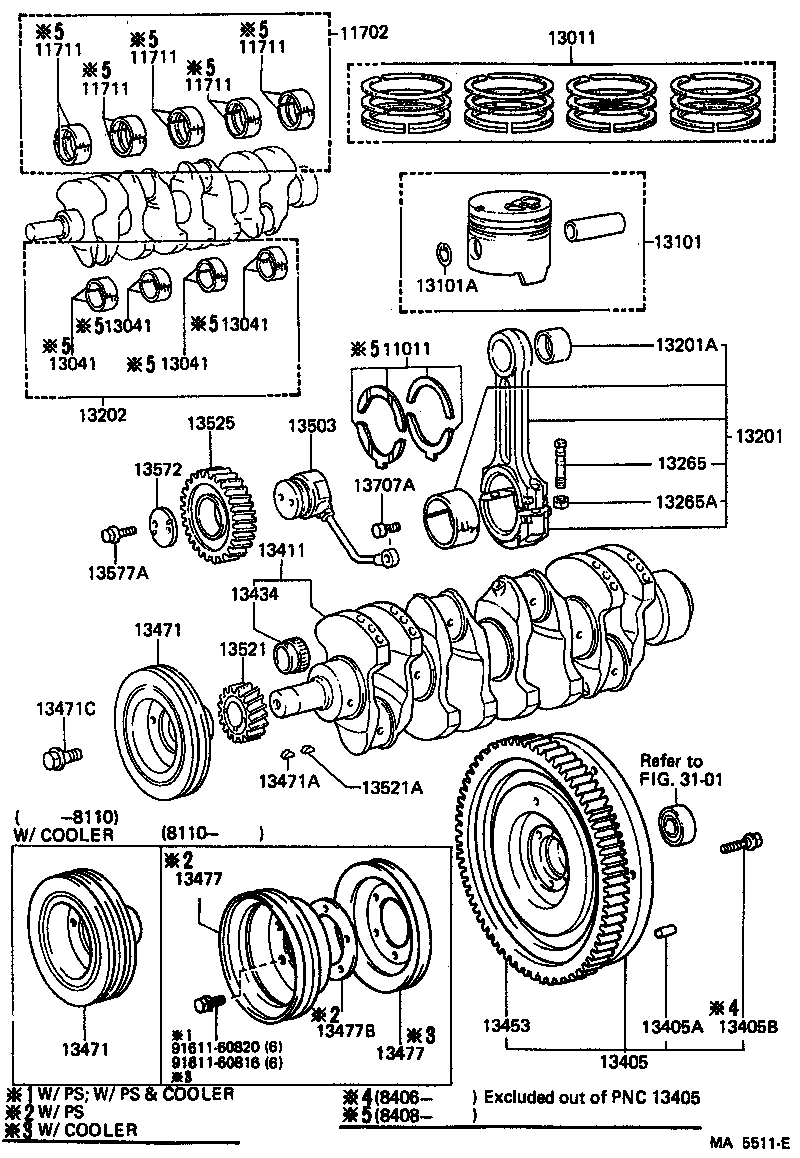

BJ42LV-KCJ (1980)
Toyota Land Cruiser
(8008-8410)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-56010 |
B,3B..BJ4# STD,STD |
1 | ||
| 11704-56010 |
B,3B..BJ4# U/S 0.25,U/S 0.25 |
1 | ||
| 11707-56010 |
B,3B..BJ4# U/S 1.00,U/S 1.00 |
1 | ||
| 11705-56010 |
B,3B..BJ4# U/S 0.50,U/S 0.50 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-58010 |
3B..BJ42,45,46 STD,STD |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-58011 |
3B..BJ42,45,46 STD,STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-36003 |
3B..BJ42,45,46 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-58010 |
3B..BJ42,45,46 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73088 |
3B..BJ42,45,46 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-58010 |
3B..BJ42,45,46 STD,STD |
1 | ||
| 13205-58010 |
3B..BJ42,45,46 U/S 0.50,U/S 0.50 |
1 | ||
| 13204-58010 |
3B..BJ42,45,46 U/S 0.25,U/S 0.25 |
1 | ||
| 13207-58010 |
3B..BJ42,45,46 U/S 1.00,U/S 1.00 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-58010 |
3B..BJ42,45,46 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-12010 |
3B..BJ42,45,46 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59055 |
B,3B..BJ4# |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
B,3B..BJ4# L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-13002 |
B,3B..BJ4# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-58010 |
3B..BJ42,45,46 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13519-56010 |
B,3B..BJ4# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-56020 |
B,3B..BJ4# N=110 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-56100 |
B,3B..BJ4# |
1 | ||
| 13470-56140 |
B,3B..BJ40,42,45..(PIC,V)..(ARL,GEN) W/COOLER |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-56100 |
B,3B..BJ4# |
1 | ||
| 13470-56140 |
B,3B..BJ40,42,45..(PIC,V)..(ARL,GEN) W/COOLER |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10416 |
B,3B..BJ4# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16003 |
B,3B..BJ4# |
1 | ||
| 13503 - SHAFT SUB-ASSY, IDLE GEAR | ||||
| 13504-56020 |
B,3B..BJ4# |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-56020 |
B,3B..BJ4# N=22 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
B,3B..BJ4# |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13525-56010 |
B,3B..BJ4# |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-56010 |
B,3B..BJ4# |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90119-10208 |
B,3B..BJ4# |
2 | ||
| 13707A - UNION(FOR OIL PIPE, NO.1) | ||||
| 90044-01010 |
B,3B..BJ4# |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 3101 | ||||
(8008-8410)3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-56010 |
B,3B..BJ4# STD,STD |
1 | ||
| 11704-56010 |
B,3B..BJ4# U/S 0.25,U/S 0.25 |
1 | ||
| 11707-56010 |
B,3B..BJ4# U/S 1.00,U/S 1.00 |
1 | ||
| 11705-56010 |
B,3B..BJ4# U/S 0.50,U/S 0.50 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-58010 |
3B..BJ42,45,46 STD,STD |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-58011 |
3B..BJ42,45,46 STD,STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-36003 |
3B..BJ42,45,46 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-58010 |
3B..BJ42,45,46 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73088 |
3B..BJ42,45,46 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-58010 |
3B..BJ42,45,46 STD,STD |
1 | ||
| 13205-58010 |
3B..BJ42,45,46 U/S 0.50,U/S 0.50 |
1 | ||
| 13204-58010 |
3B..BJ42,45,46 U/S 0.25,U/S 0.25 |
1 | ||
| 13207-58010 |
3B..BJ42,45,46 U/S 1.00,U/S 1.00 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-58010 |
3B..BJ42,45,46 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-12010 |
3B..BJ42,45,46 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59055 |
B,3B..BJ4# |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
B,3B..BJ4# L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-13002 |
B,3B..BJ4# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-58010 |
3B..BJ42,45,46 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13519-56010 |
B,3B..BJ4# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-56020 |
B,3B..BJ4# N=110 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-56100 |
B,3B..BJ4# |
1 | ||
| 13470-56140 |
B,3B..BJ40,42,45..(PIC,V)..(ARL,GEN) W/COOLER |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-56100 |
B,3B..BJ4# |
1 | ||
| 13470-56140 |
B,3B..BJ40,42,45..(PIC,V)..(ARL,GEN) W/COOLER |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10416 |
B,3B..BJ4# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16003 |
B,3B..BJ4# |
1 | ||
| 13503 - SHAFT SUB-ASSY, IDLE GEAR | ||||
| 13504-56020 |
B,3B..BJ4# |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-56020 |
B,3B..BJ4# N=22 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
B,3B..BJ4# |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13525-56010 |
B,3B..BJ4# |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-56010 |
B,3B..BJ4# |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90119-10208 |
B,3B..BJ4# |
2 | ||
| 13707A - UNION(FOR OIL PIPE, NO.1) | ||||
| 90044-01010 |
B,3B..BJ4# |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 3101 | ||||
