BJ42L-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )BJ40,42,FJ40

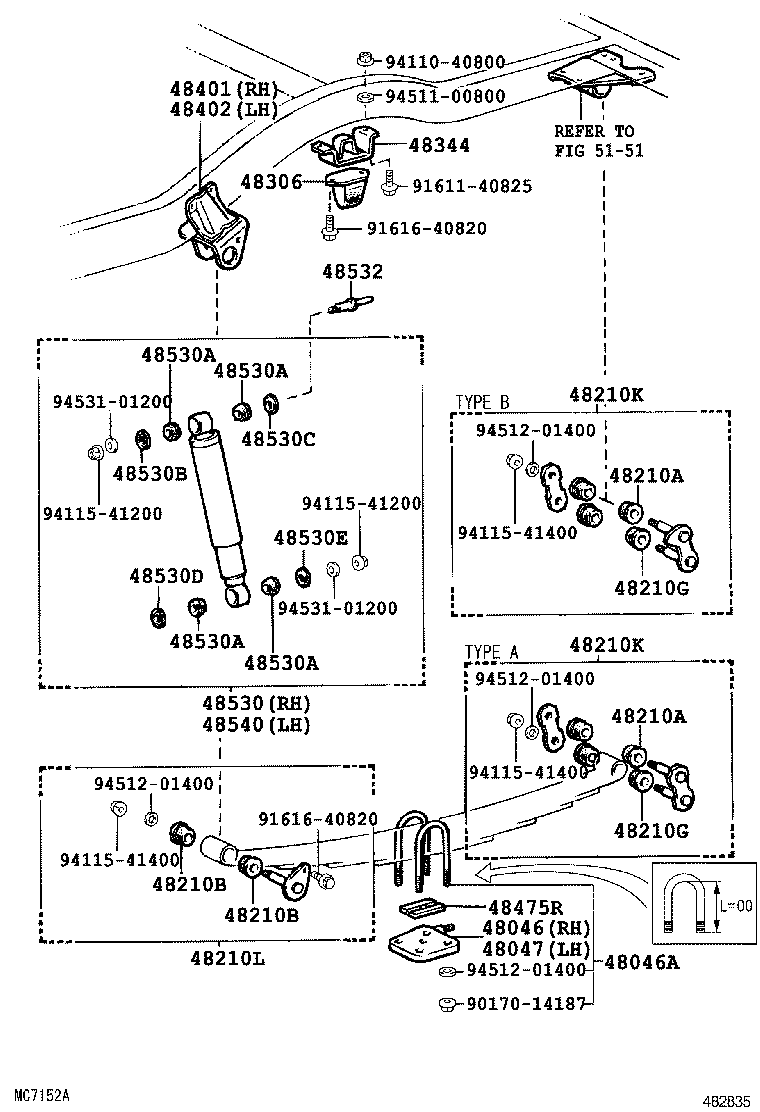

Click highlighted areas on diagram

diagram 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48210K 48210K 48210L 48306 48344 48401 48402 48475R 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48532 48540 5151 9017014187 9161140825 9161640820 9161640820 9411040800 9411541200 9411541200 9411541400 9411541400 9411541400 9451100800 9451201400 9451201400 9451201400 9451201400 9453101200 9453101200
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-60032

BJ40,42,43,46,FJ40,43

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-14158

BJ40,42,FJ40

L=170,D=14

 4
90118-14107

BJ40,42,FJ40

L=175,D=14,W/*DIP

 2
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-60032

BJ40,42,43,46,FJ40,43

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90389-18002

BJ4#,FJ4#,HJ47

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90389-18002

BJ4#,FJ4#,HJ47

 4
48210B - BUSH(FOR REAR SPRING PIN)
90389-18002

BJ4#,FJ4#,HJ47

 4
48210B - BUSH(FOR REAR SPRING PIN)
90389-18002

BJ4#,FJ4#,HJ47

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90389-18002

BJ4#,FJ4#,HJ47

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90389-18002

BJ4#,FJ4#,HJ47

 4
48210K - SHACKLE KIT, REAR SPRING
04483-60021

BJ40,42,FJ40

LH,TYPE B

 1
04481-60020

BJ40,42,FJ40..ARL,GEN

TYPE A

 2
04483-60011

BJ40,42,FJ40

RH,TYPE B

 1
48210K - SHACKLE KIT, REAR SPRING
04483-60021

BJ40,42,FJ40

LH,TYPE B

 1
04481-60020

BJ40,42,FJ40..ARL,GEN

TYPE A

 2
04483-60011

BJ40,42,FJ40

RH,TYPE B

 1
48210L - PIN KIT, REAR SPRING
04482-60040

BJ4#,FJ4#,HJ47

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-60040

BJ40,42,FJ40

 2
48344 - STOPPER, BUMPER, REAR
48035-60010

BJ40,42,FJ40

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-60021

BJ4#,FJ4#,HJ47

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48415-60021

BJ4#,FJ4#,HJ47

 1
48475R - PLATE, DISTANCE(FOR REAR)
48475-60020

BJ4#,FJ4#,HJ47

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-69047

BJ40,42,FJ40

MARK 48531-60061

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BJ4#,FJ4#,HJ47

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BJ4#,FJ4#,HJ47

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BJ4#,FJ4#,HJ47

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BJ4#,FJ4#,HJ47

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003

BJ4#,FJ4#,HJ47

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BJ4#,FJ4#,HJ47

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

BJ4#,FJ4#,HJ47

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BJ4#,FJ4#,HJ47

 2
48532 - PIN, REAR SHOCK ABSORBER PIVOT
48532-60010

BJ4#,FJ4#,HJ47

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-69047

BJ40,42,FJ40

MARK 48531-60061

 1
Common parts
90170-14187
91611-40825
91616-40820
94110-40800
94115-41200
94115-41400
94511-00800
94512-01400
94531-01200
Linked diagrams
5151

(8008-8210)BJ40,42,43,46,FJ40,43 ; (8210- )BJ40,42,43,FJ40,43

Click highlighted areas on diagram

diagram 48210 48210 48211 48211 48212 48212 48213 48213 48214 48214 48214 48215 48215 48216 48216 48217 48218 48219 48220 48220 48241 48241 48241A 48241A 48241B 48242 48243 48247 48247 48284 48284 9099990204 9099990210 9099990210 9411040800 9411040800 9511101022
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-60121

BJ40,42..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
48210 - SPRING ASSY, REAR RH
48210-60121

BJ40,42..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
48211 - LEAF, REAR SPRING, NO.1
48211-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48211-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48211 - LEAF, REAR SPRING, NO.1
48211-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48211-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48212 - LEAF, REAR SPRING, NO.2
48212-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48212-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48212 - LEAF, REAR SPRING, NO.2
48212-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48212-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48213 - LEAF, REAR SPRING, NO.3
48213-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48213-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48213 - LEAF, REAR SPRING, NO.3
48213-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48213-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48214 - LEAF, REAR SPRING, NO.4
48202-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48202-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48214 - LEAF, REAR SPRING, NO.4
48202-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48202-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48214 - LEAF, REAR SPRING, NO.4
48202-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48202-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48215 - LEAF, REAR SPRING, NO.5
48215-60123

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48215-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48215 - LEAF, REAR SPRING, NO.5
48215-60123

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48215-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48216 - LEAF, REAR SPRING, NO.6
48216-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48216-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48216 - LEAF, REAR SPRING, NO.6
48216-60202

BJ40,42,FJ40

DRIVERS SEAT SIDE

 1
48216-60122

BJ40,42,FJ40

PASSENGER SEAT SIDE

 1
48220 - SPRING ASSY, REAR LH
48210-60201

BJ40,42..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
48220 - SPRING ASSY, REAR LH
48210-60201

BJ40,42..LHD;FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F

 1
48241 - CLIP, REAR SPRING, NO.1
48141-60062

BJ40,42,FJ40

 4
48241 - CLIP, REAR SPRING, NO.1
48141-60062

BJ40,42,FJ40

 4
48247 - BOLT, REAR SPRING, CENTER
48247-60121

BJ40,42,FJ40

 2
48247 - BOLT, REAR SPRING, CENTER
48247-60121

BJ40,42,FJ40

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-60062

BJ4#,FJ4#,HJ47

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-60062

BJ4#,FJ4#,HJ47

 2
Common parts
90999-90204
90999-90210
94110-40800
95111-01022
