BJ40RV-KJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)GEN

Click highlighted areas on diagram

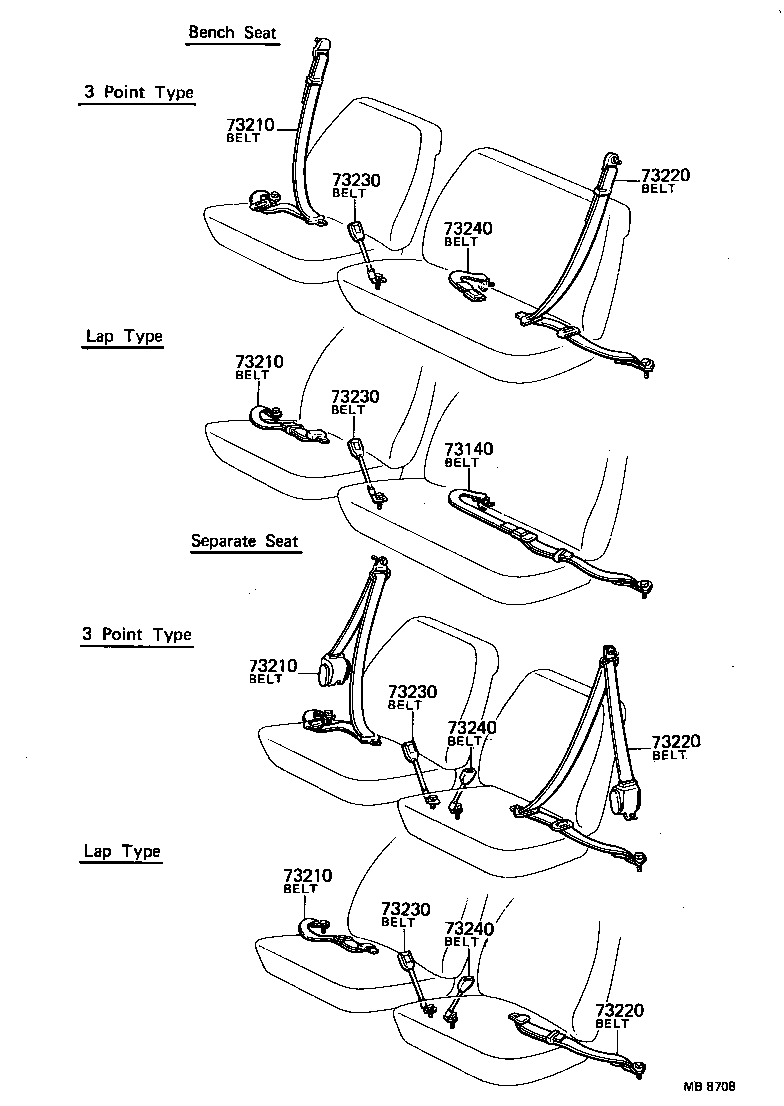

diagram 73130 73140 73210 73210 73220 73220 73230 73230 73240 73240
Part # Description Qty Price

(6903-7505)BJ4#,FJ4#,HJ45 ; (7505-7901)HJ45..ARL..IV ; (7505-7901)BJ4#,FJ4#,HJ45..E

Click highlighted areas on diagram

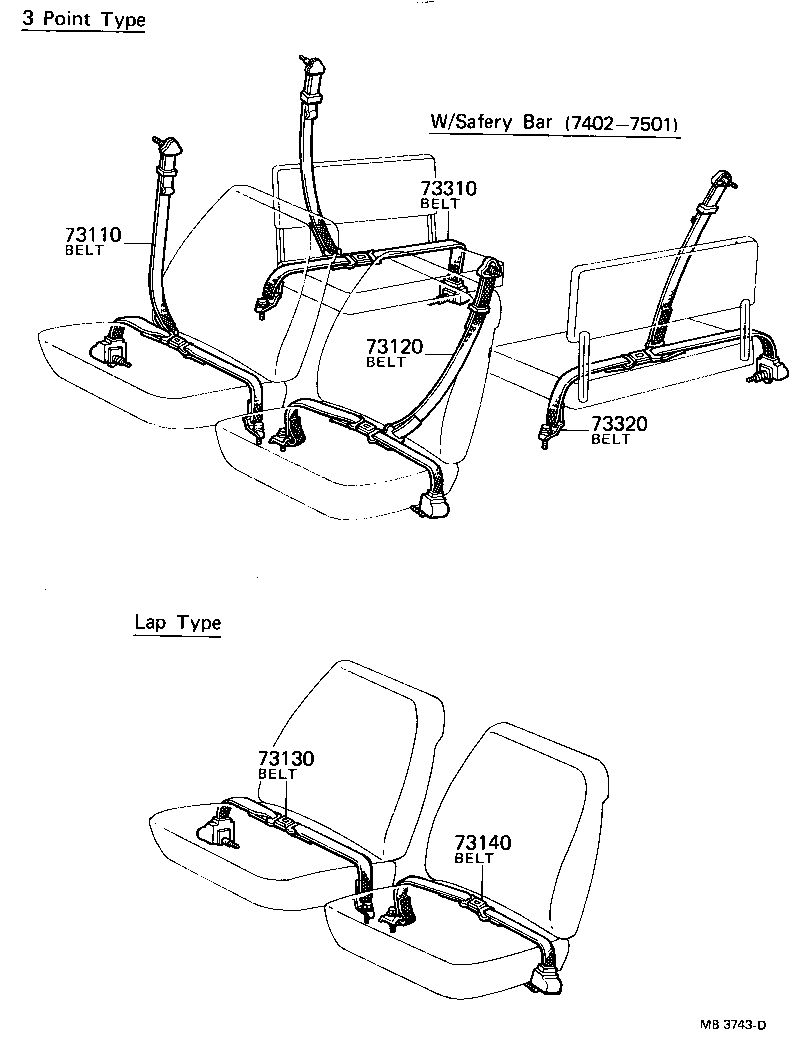

diagram 73110 73120 73130 73140 73310 73320
Part # Description Qty Price
73110 - BELT ASSY, FRONT SEAT 3 POINT TYPE, RH
71850-90337

BJ40,FJ40..V

BENCH SEAT

 1
71850-90337

BJ4#,FJ40,43..RB

BENCH SEAT

 1
73120 - BELT ASSY, FRONT SEAT 3 POINT TYPE, LH
71850-90337

BJ40,FJ40..V

BENCH SEAT

 1
71850-90337

BJ4#,FJ40,43..RB

BENCH SEAT

 1
73140 - BELT ASSY, FRONT SEAT LAP TYPE, LH
71840-90331

BJ4#,FJ4#,HJ45..RHD..GEN

BENCH SEAT

 1

(7901-8007)HJ45..ARL..IV ; (7901-8007)BJ4#,FJ4#,HJ45..RHD..GEN

Click highlighted areas on diagram

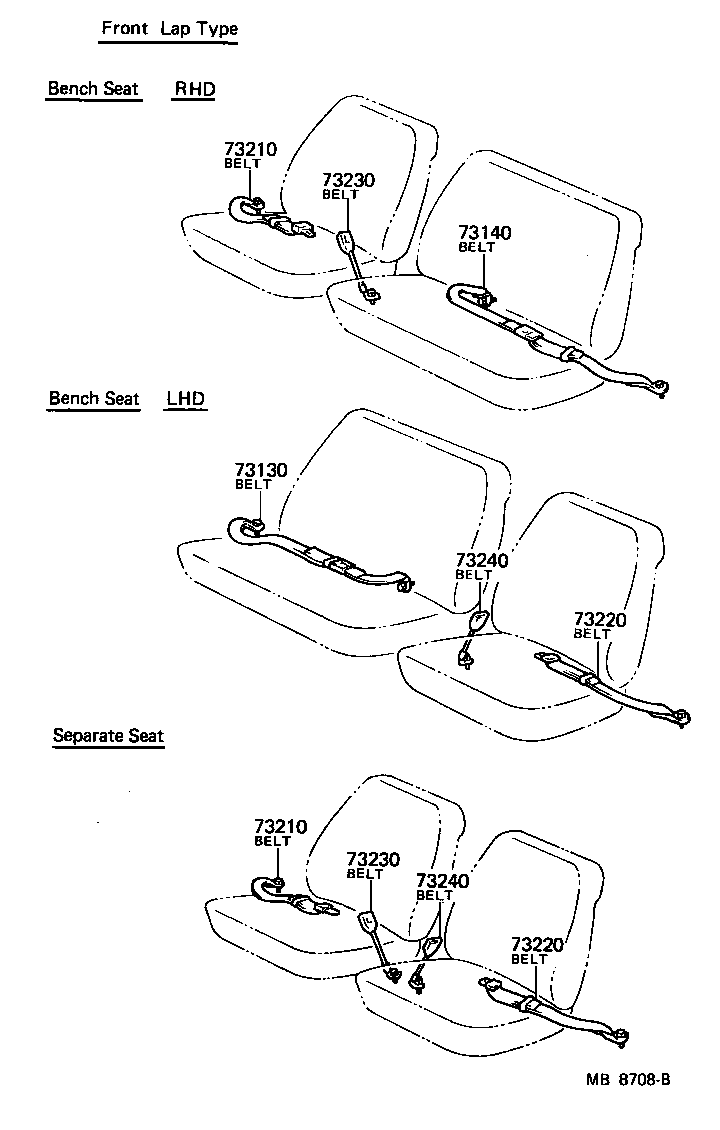

diagram 73140 73210 73210 73210 73210 73220 73220 73220 73230 73230 73230 73230 73240 73240 73240
Part # Description Qty Price
73140 - BELT ASSY, FRONT SEAT LAP TYPE, LH
71840-90331

BJ4#,FJ4#,HJ45..RHD..GEN

BENCH SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
71801-90335

BJ4#,FJ4#,HJ45..RHD..GEN

LAP TYPE,BENCH SEAT

 1
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
71801-90335

BJ4#,FJ4#,HJ45..RHD..GEN

LAP TYPE,BENCH SEAT

 1
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
71801-90335

BJ4#,FJ4#,HJ45..RHD..GEN

LAP TYPE,BENCH SEAT

 1
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
71801-90335

BJ4#,FJ4#,HJ45..RHD..GEN

LAP TYPE,BENCH SEAT

 1
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
71802-90327

BJ4#,FJ4#,HJ45..RHD..GEN

BENCH SEAT

 1
71802-90327

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
71802-90327

BJ4#,FJ4#,HJ45..RHD..GEN

BENCH SEAT

 1
71802-90327

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
71802-90327

BJ4#,FJ4#,HJ45..RHD..GEN

BENCH SEAT

 1
71802-90327

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
71802-90327

BJ4#,FJ4#,HJ45..RHD..GEN

BENCH SEAT

 1
71802-90327

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
71802-90333

BJ4#,FJ40,43..RHD..GEN

BENCH SEAT

 1
71802-90334

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
71802-90333

BJ4#,FJ40,43..RHD..GEN

BENCH SEAT

 1
71802-90334

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
71802-90333

BJ4#,FJ40,43..RHD..GEN

BENCH SEAT

 1
71802-90334

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1

(7901-8007)HJ45..ARL..IV ; (7901-8007)BJ4#,FJ4#,HJ45..RHD..GEN

Click highlighted areas on diagram

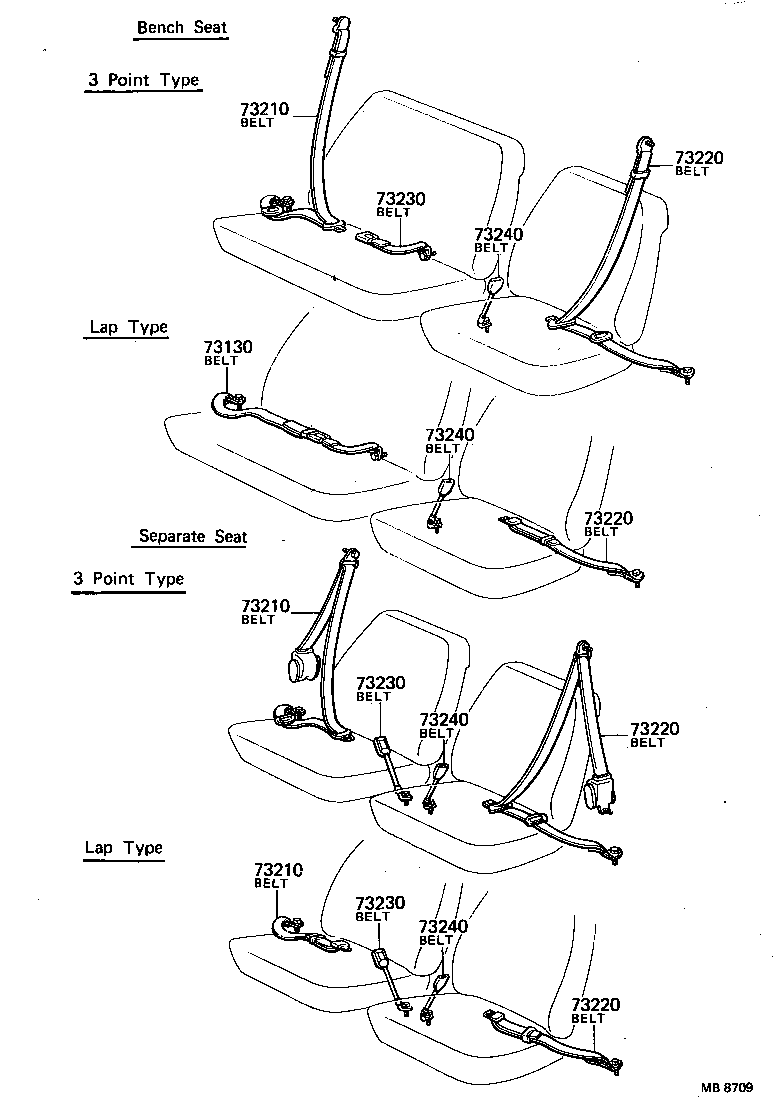

diagram 73130 73210 73210 73210 73220 73220 73220 73220 73230 73230 73230 73240 73240 73240 73240
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
71801-90335

BJ4#,FJ4#,HJ45..RHD..GEN

LAP TYPE,BENCH SEAT

 1
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
71801-90335

BJ4#,FJ4#,HJ45..RHD..GEN

LAP TYPE,BENCH SEAT

 1
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
71801-90335

BJ4#,FJ4#,HJ45..RHD..GEN

LAP TYPE,BENCH SEAT

 1
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
71801-90336

BJ4#,FJ40,43..GEN

3POINT TYPE,BENCH SEAT

 1
71801-90335

BJ4#,FJ4#..GEN

LAP TYPE,SEPARATE SEAT

 1
71801-90328

BJ4#,FJ40,43..GEN

3POINT TYPE,SEPARATE SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
71802-90327

BJ4#,FJ4#,HJ45..RHD..GEN

BENCH SEAT

 1
71802-90327

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
71802-90327

BJ4#,FJ4#,HJ45..RHD..GEN

BENCH SEAT

 1
71802-90327

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
71802-90327

BJ4#,FJ4#,HJ45..RHD..GEN

BENCH SEAT

 1
71802-90327

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
71802-90333

BJ4#,FJ40,43..RHD..GEN

BENCH SEAT

 1
71802-90334

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
71802-90333

BJ4#,FJ40,43..RHD..GEN

BENCH SEAT

 1
71802-90334

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
71802-90333

BJ4#,FJ40,43..RHD..GEN

BENCH SEAT

 1
71802-90334

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
71802-90333

BJ4#,FJ40,43..RHD..GEN

BENCH SEAT

 1
71802-90334

BJ4#,FJ4#..GEN

SEPARATE SEAT

 1
