BJ40RV-KJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)BJ4#

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31240 31240A 31250 33311W 9010908081 9010908081 9011908134 9017008197 9017008197 9020108567 9020108567 9451100800 9451100800
Part # Description Qty Price
Common parts
90109-08081
90119-08134
90170-08197
90201-08567
94511-00800

(7704-8007)BJ4#

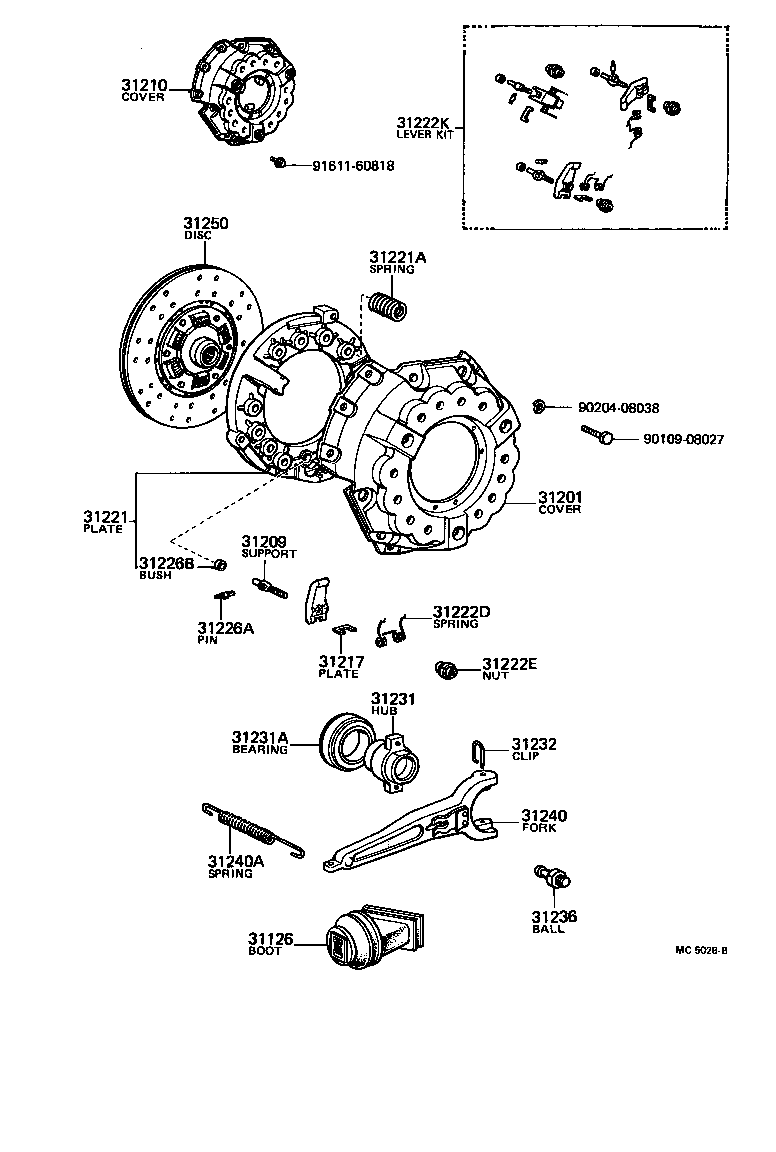

Click highlighted areas on diagram

diagram 31126 31201 31209 31210 31217 31221 31221A 31222D 31222E 31222K 31226A 31226B 31231 31231A 31232 31236 31240 31240A 31250 9010908027 9020408038 9161160818
Part # Description Qty Price
31209 - SUPPORT SUB-ASSY, CLUTCH RELEASE LEVER
31209-36010

BJ4#

 3
31210 - COVER ASSY, CLUTCH
31210-36052

BJ4#

 1
31221 - PLATE, CLUTCH PRESSURE
31221-39095

BJ4#

 1
31222K - LEVER KIT, CLUTCH PRESSURE
04315-36031

BJ4#

 1
31226A - RIVET OR PIN(FOR CLUTCH PRESSURE PLATE BOLT LOCK)
90249-08008

BJ4#

 3
31226B - BUSH(FOR CLUTCH PRESSURE PLATE BOLT)
90387-12005

BJ4#

 3
31231 - HUB, CLUTCH RELEASE BEARING
31231-36012

BJ4#

 1
Common parts
90109-08027
90204-08038
91611-60818
