BJ40RV-KC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7608-8007)BJ4#,FJ40,43

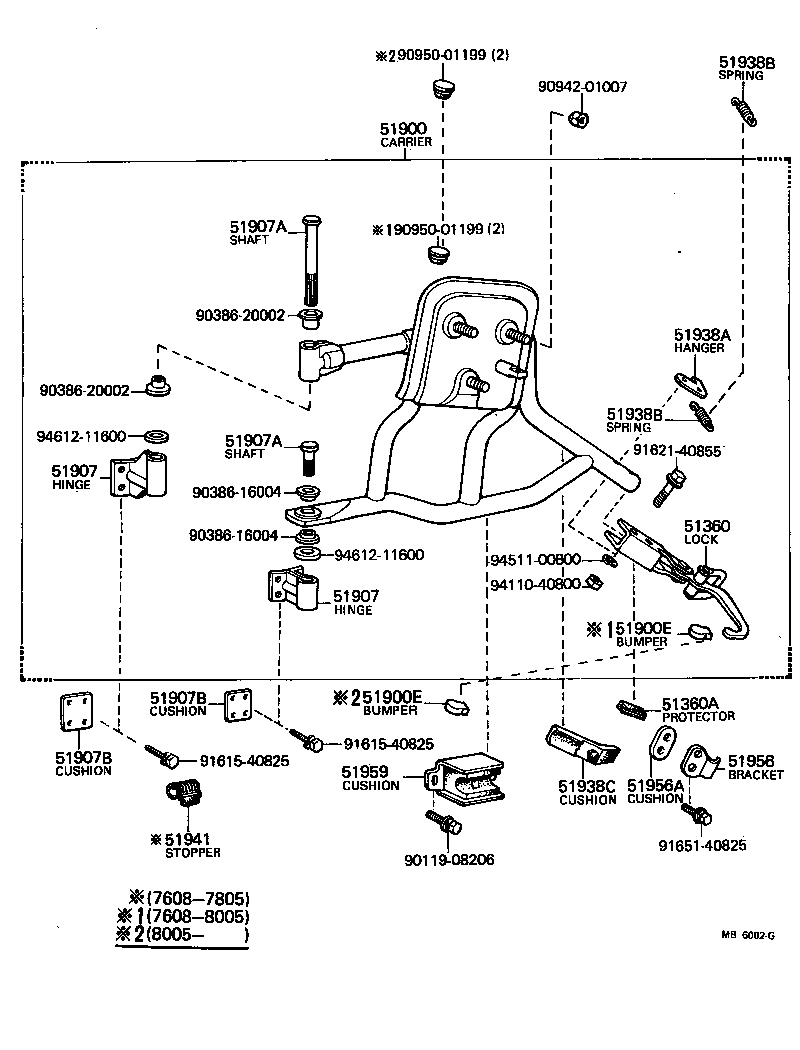

Click highlighted areas on diagram

diagram 51360 51360A 51900 51900E 51900E 51907 51907 51907A 51907A 51907B 51907B 51938A 51938B 51938B 51938C 51941 51956 51956A 51959 9011908206 9038616004 9038616004 9038620002 9038620002 9094201007 9095001199 9095001199 9161540825 9161540825 9162140855 9165140825 9411040800 9451100800 9461211600 9461211600
Part # Description Qty Price
51360 - LOCK ASSY, SPARE WHEEL
69360-60010

BJ4#,FJ40,43..RHD

 1
51930-90300

BJ4#,FJ40,43

 1
69360-60010

BJ4#,FJ40,43

 1
69360-60010

BJ4#,FJ40,43..ARL,GEN

 1
51360A - PROTECTOR, SPARE WHEEL LOCK
51973-90300

BJ4#,FJ40,43

 1
68959-90300

BJ4#,FJ40,43

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-90300

BJ4#,FJ40,43..ARL,GEN

 1
51900-90300

BJ4#,FJ40,43

 1
51900-90302

BJ4#,FJ40,43..ARL,GEN

 1
51903-90800

BJ4#,FJ40,43..ARL,GEN

 1
51900E - BUMPER, SPARE WHEEL CARRIER
51908-90300

BJ4#,FJ40,43

 1
53382-90902

BJ4#,FJ40,43

 1
51928-90300

BJ4#,FJ40,43

 1
51900E - BUMPER, SPARE WHEEL CARRIER
51908-90300

BJ4#,FJ40,43

 1
53382-90902

BJ4#,FJ40,43

 1
51928-90300

BJ4#,FJ40,43

 1
51907 - HINGE SUB-ASSY, SPARE WHEEL CARRIER
51955-90800

BJ4#,FJ40,43

UPPER

 1
51947-90300

BJ4#,FJ40,43

UPPER

 1
51937-90302

BJ4#,FJ40,43

LOWER

 1
51907 - HINGE SUB-ASSY, SPARE WHEEL CARRIER
51955-90800

BJ4#,FJ40,43

UPPER

 1
51947-90300

BJ4#,FJ40,43

UPPER

 1
51937-90302

BJ4#,FJ40,43

LOWER

 1
51907A - PIN, SPARE WHEEL CARRIER HINGE
90245-16001

BJ4#,FJ40,43

FOR UPPER

 1
51942-90302

BJ4#,FJ40,43

FOR LOWER

 1
51972-90300

BJ4#,FJ40,43

FOR UPPER

 1
90245-20001

BJ4#,FJ40,43

FOR LOWER

 1
51907A - PIN, SPARE WHEEL CARRIER HINGE
90245-16001

BJ4#,FJ40,43

FOR UPPER

 1
51942-90302

BJ4#,FJ40,43

FOR LOWER

 1
51972-90300

BJ4#,FJ40,43

FOR UPPER

 1
90245-20001

BJ4#,FJ40,43

FOR LOWER

 1
51907B - CUSHION, SPARE WHEEL CARRIER HINGE
51935-90800

BJ4#,FJ40,43

FOR UPPER

 1
51954-90300

BJ4#,FJ40,43

FOR LOWER

 1
51953-90300

BJ4#,FJ40,43

FOR UPPER

 1
51907B - CUSHION, SPARE WHEEL CARRIER HINGE
51935-90800

BJ4#,FJ40,43

FOR UPPER

 1
51954-90300

BJ4#,FJ40,43

FOR LOWER

 1
51953-90300

BJ4#,FJ40,43

FOR UPPER

 1
51938A - HANGER, SPARE WHEEL CARRIER LOCK SPRING
51938-90300

BJ4#,FJ40,43

 1
51938B - SPRING, TENSION(FOR SPARE WHEEL CARRIER LOCK)
90506-12480

BJ4#,FJ40,43

 1
51938B - SPRING, TENSION(FOR SPARE WHEEL CARRIER LOCK)
90506-12480

BJ4#,FJ40,43

 1
51938C - CUSHION(FOR SPARE WHEEL CARRIER LOCK)
51917-90301

BJ4#,FJ40,43

 1
51941 - STOPPER, SPARE WHEEL CARRIER
51948-90300

BJ4#,FJ40,43

 1
51956 - BRACKET, SPARE WHEEL CARRIER SUPPORT
51955-60010

BJ4#,FJ40,43..ARL,GEN

 1
51955-60010

BJ4#,FJ40,43..RHD

 1
51955-60010

BJ4#,FJ40,43

 1
51926-90301

BJ4#,FJ40,43

 1
51956A - CUSHION, SPARE WHEEL CARRIER HOOK
51941-90300

BJ4#,FJ40,43

 1
51959 - CUSHION, SPARE WHEEL
51929-90300

BJ4#,FJ40,43

 1
Common parts
90119-08206
90386-16004
90386-20002
90942-01007
90950-01199
91615-40825
91621-40855
91651-40825
94110-40800
94511-00800
94612-11600
