BJ40RV-KC (1975)
Toyota Land Cruiser
(8008-8411)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12134 | ||||
| 91111-40816 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||

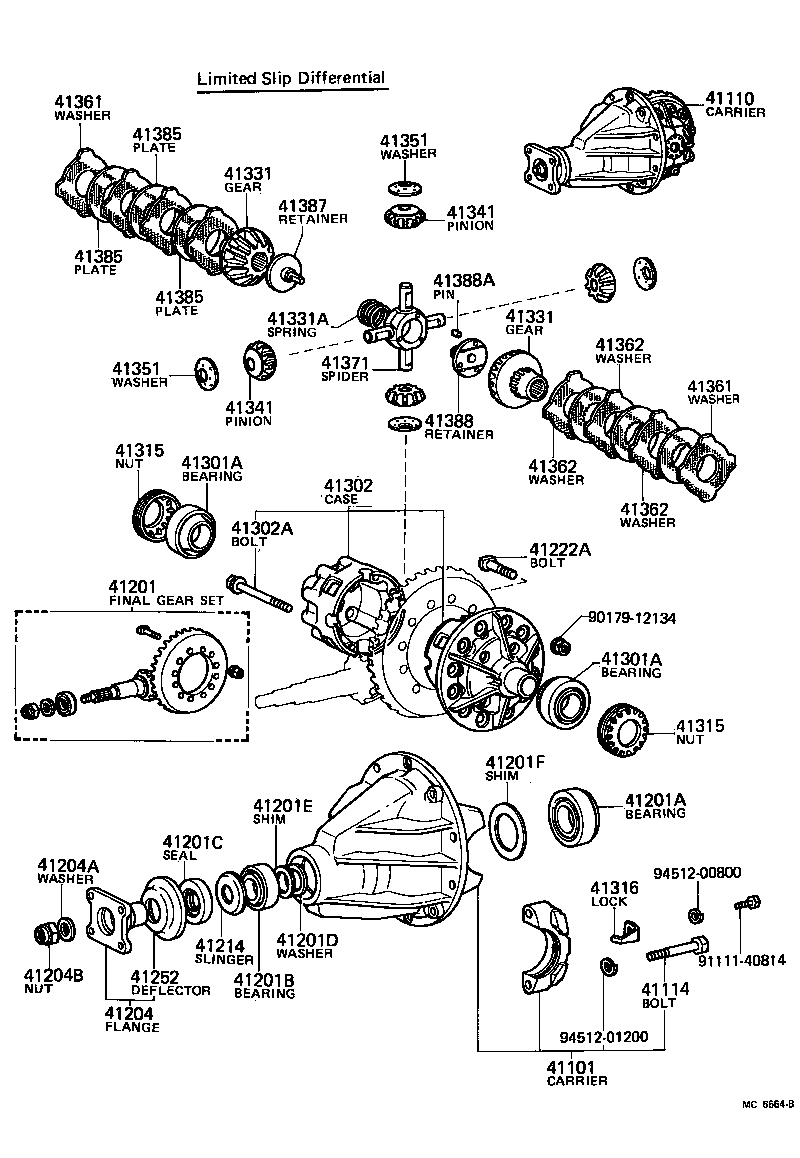

(6903-8007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60021 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60016 |
BJ4#,HJ45;FJ4#,55..ARL,GEN *AXC=K082,*FGR=37:9,R=37:9=4.111 |
1 | ||
| 41110-60015 |
BJ4#,HJ45;FJ4#,55..ARL,GEN R=37:9=4.111 |
1 | ||
| 41110-60070 |
BJ4#,HJ45;FJ4#,55..ARL,GEN R=37:9=4.111,L.S.D. |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69049 |
BJ4#,HJ45;FJ4#,55..ARL,GEN N=37:9 |
1 | ||
| 41201-69105 |
BJ4#,HJ45;FJ4#,55..ARL,GEN *FGR=37:9,N=37:9 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30187 |
BJ4#,FJ4#,55,HJ45 T=2.83-2.85,T=2.83-2.85 |
1 | ||
| 90560-30184 |
BJ4#,FJ4#,55,HJ45 T=2.74-2.76,T=2.74-2.76 |
1 | ||
| 90560-30191 |
BJ4#,FJ4#,55,HJ45 T=2.92-2.94,T=2.92-2.94 |
1 | ||
| 90560-30186 |
BJ4#,FJ4#,55,HJ45 T=2.80-2.82,T=2.80-2.82 |
1 | ||
| 90560-30185 |
BJ4#,FJ4#,55,HJ45 T=2.77-2.79,T=2.77-2.79 |
1 | ||
| 90560-30192 |
BJ4#,FJ4#,55,HJ45 T=2.95-2.97,T=2.95-2.97 |
1 | ||
| 90560-30199 |
BJ4#,FJ4#,55,HJ45 T=2.98-3.00,T=2.98-3.00 |
1 | ||
| 90560-30188 |
BJ4#,FJ4#,55,HJ45 T=2.86-2.88,T=2.86-2.88 |
1 | ||
| 90560-30190 |
BJ4#,FJ4#,55,HJ45 T=2.89-2.91,T=2.89-2.91 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-30035 |
BJ4#,FJ4#,55,HJ45 T=0.25 |
4 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-70102 |
BJ4#,FJ4#,55,HJ45 T=0.30 |
2 | ||
| 90564-68001 |
BJ4#,FJ4#,55,HJ45 T=0.25,T=0.25 |
2 | ||
| 90564-70104 |
BJ4#,FJ4#,55,HJ45 T=0.45 |
2 | ||
| 90564-70101 |
BJ4#,FJ4#,55,HJ45 T=0.25 |
2 | ||
| 90564-70103 |
BJ4#,FJ4#,55,HJ45 T=0.35 |
2 | ||
| 90564-70121 |
BJ4#,FJ4#,55,HJ45 T=0.40 |
2 | ||
| 90564-68003 |
BJ4#,FJ4#,55,HJ45 T=0.35,T=0.35 |
2 | ||
| 90564-68005 |
BJ4#,FJ4#,55,HJ45 T=0.45,T=0.45 |
2 | ||
| 90564-68002 |
BJ4#,FJ4#,55,HJ45 T=0.30,T=0.30 |
2 | ||
| 90564-68004 |
BJ4#,FJ4#,55,HJ45 T=0.40,T=0.40 |
2 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45001 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45001 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
1 | ||
| 41311-36010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ4#,FJ4#,55,HJ45 N=16,FOR L.S.D. |
2 | ||
| 41331-35020 |
BJ4#,FJ4#,55,HJ45 N=16 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ4#,FJ4#,55,HJ45 N=16,FOR L.S.D. |
2 | ||
| 41331-35020 |
BJ4#,FJ4#,55,HJ45 N=16 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-60010 |
BJ4#,FJ4#,55,HJ45 N=10,FOR L.S.D. |
4 | ||
| 41341-55012 |
BJ4#,FJ4#,55,HJ45 N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-60010 |
BJ4#,FJ4#,55,HJ45 N=10,FOR L.S.D. |
4 | ||
| 41341-55012 |
BJ4#,FJ4#,55,HJ45 N=10 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-55010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-55010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41344 - SPACER, DIFFERENTIAL PINION SHAFT | ||||
| 41346-35010 |
BJ4#,FJ4#,55,HJ45 T=30.575-30.600 |
1 | ||
| 41344-35010 |
BJ4#,FJ4#,55,HJ45 T=29.775-29.800 |
1 | ||
| 41346-35010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN T=30.575-30.600 |
1 | ||
| 41345-35010 |
BJ4#,FJ4#,55,HJ45 T=30.175-30.200 |
1 | ||
| 41344-35010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN T=29.775-29.800 |
1 | ||
| 41345-35010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN T=30.175-30.200 |
1 | ||
| 41348-35010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN T=29.375-29.400 |
1 | ||
| 41347-35010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN T=28.975-29.000 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41351-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
4 | ||
| 41351-35010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41351-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
4 | ||
| 41351-35010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BJ4#,FJ4#,55,HJ45 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60020 |
BJ4#,FJ4#,55,HJ45 T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60080 |
BJ4#,FJ4#,55,HJ45 MARK C,FOR L.S.D. |
2 | ||
| 41361-60040 |
BJ4#,FJ4#,55,HJ45 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60090 |
BJ4#,FJ4#,55,HJ45 MARK D,FOR L.S.D. |
2 | ||
| 41361-60070 |
BJ4#,FJ4#,55,HJ45 MARK B,FOR L.S.D. |
2 | ||
| 41361-60120 |
BJ4#,FJ4#,55,HJ45 MARK G,FOR L.S.D. |
2 | ||
| 41361-60060 |
BJ4#,FJ4#,55,HJ45 MARK A,FOR L.S.D. |
2 | ||
| 41361-60100 |
BJ4#,FJ4#,55,HJ45 MARK E,FOR L.S.D. |
2 | ||
| 41361-35010 |
BJ4#,FJ4#,55,HJ45 T=1.55-1.65 |
2 | ||
| 41361-60130 |
BJ4#,FJ4#,55,HJ45 MARK H,FOR L.S.D. |
2 | ||
| 41361-60110 |
BJ4#,FJ4#,55,HJ45 MARK F,FOR L.S.D. |
2 | ||
| 41361-60170 |
BJ4#,FJ4#,55,HJ45 MARK M,FOR L.S.D. |
2 | ||
| 41361-60160 |
BJ4#,FJ4#,55,HJ45 MARK L,FOR L.S.D. |
2 | ||
| 41361-60030 |
BJ4#,FJ4#,55,HJ45 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60150 |
BJ4#,FJ4#,55,HJ45 MARK K,FOR L.S.D. |
2 | ||
| 41361-60140 |
BJ4#,FJ4#,55,HJ45 MARK J,FOR L.S.D. |
2 | ||
| 41361-60180 |
BJ4#,FJ4#,55,HJ45 MARK N,FOR L.S.D. |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BJ4#,FJ4#,55,HJ45 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60020 |
BJ4#,FJ4#,55,HJ45 T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60080 |
BJ4#,FJ4#,55,HJ45 MARK C,FOR L.S.D. |
2 | ||
| 41361-60040 |
BJ4#,FJ4#,55,HJ45 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60090 |
BJ4#,FJ4#,55,HJ45 MARK D,FOR L.S.D. |
2 | ||
| 41361-60070 |
BJ4#,FJ4#,55,HJ45 MARK B,FOR L.S.D. |
2 | ||
| 41361-60120 |
BJ4#,FJ4#,55,HJ45 MARK G,FOR L.S.D. |
2 | ||
| 41361-60060 |
BJ4#,FJ4#,55,HJ45 MARK A,FOR L.S.D. |
2 | ||
| 41361-60100 |
BJ4#,FJ4#,55,HJ45 MARK E,FOR L.S.D. |
2 | ||
| 41361-35010 |
BJ4#,FJ4#,55,HJ45 T=1.55-1.65 |
2 | ||
| 41361-60130 |
BJ4#,FJ4#,55,HJ45 MARK H,FOR L.S.D. |
2 | ||
| 41361-60110 |
BJ4#,FJ4#,55,HJ45 MARK F,FOR L.S.D. |
2 | ||
| 41361-60170 |
BJ4#,FJ4#,55,HJ45 MARK M,FOR L.S.D. |
2 | ||
| 41361-60160 |
BJ4#,FJ4#,55,HJ45 MARK L,FOR L.S.D. |
2 | ||
| 41361-60030 |
BJ4#,FJ4#,55,HJ45 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60150 |
BJ4#,FJ4#,55,HJ45 MARK K,FOR L.S.D. |
2 | ||
| 41361-60140 |
BJ4#,FJ4#,55,HJ45 MARK J,FOR L.S.D. |
2 | ||
| 41361-60180 |
BJ4#,FJ4#,55,HJ45 MARK N,FOR L.S.D. |
2 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-40816 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 95381-04030 | ||||

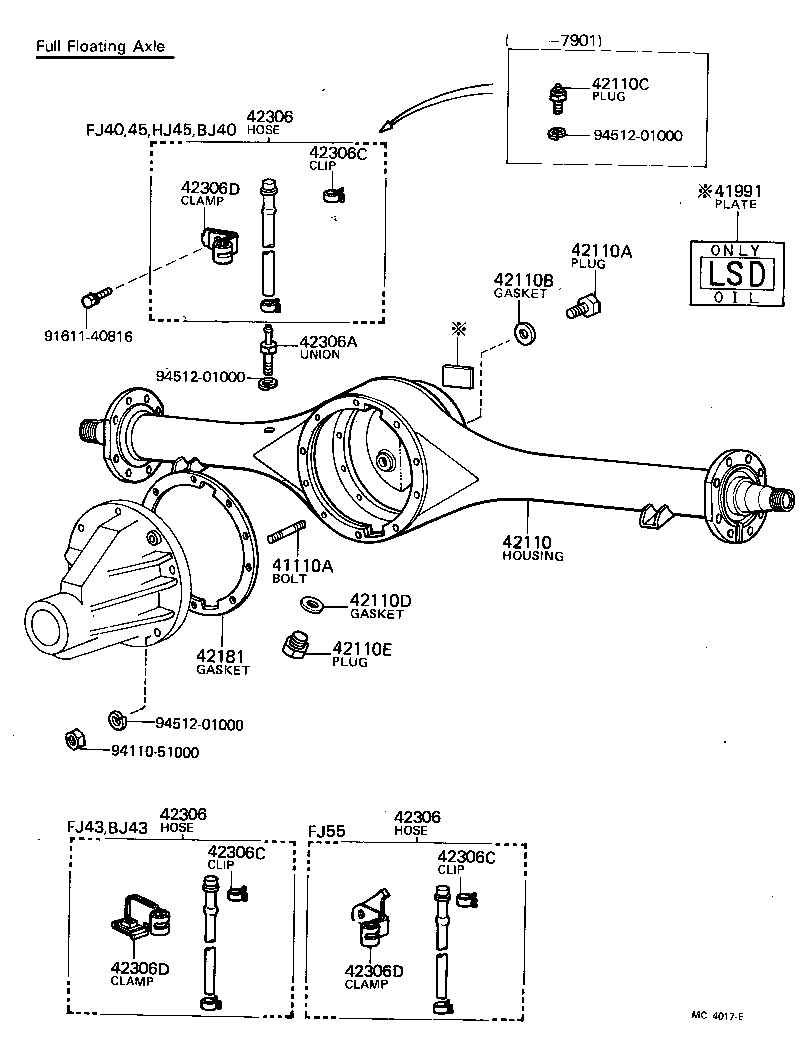

(6903-8007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10103 |
BJ4#,FJ4#,55,HJ45 L=37,S=12 & 25,L=37,S=12&25,FOR CARRIER |
8 | ||
| 90116-10107 |
BJ4#,FJ4#,55,HJ45 L=32,S=12 & 20,COVER,L=32,S=12&20,FOR COVER |
10 | ||
| 90116-10107 |
BJ4#,FJ4#,55,HJ45..EUR,GEN L=32,S=12 & 20,COVER,L=32,S=12&20,FOR COVER |
10 | ||
| 90116-10104 |
BJ4#,FJ4#,55,HJ45 L=50,S=12 & 18,L=50,S=12&18,FOR CARRIER |
2 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10103 |
BJ4#,FJ4#,55,HJ45 L=37,S=12 & 25,L=37,S=12&25,FOR CARRIER |
8 | ||
| 90116-10107 |
BJ4#,FJ4#,55,HJ45 L=32,S=12 & 20,COVER,L=32,S=12&20,FOR COVER |
10 | ||
| 90116-10107 |
BJ4#,FJ4#,55,HJ45..EUR,GEN L=32,S=12 & 20,COVER,L=32,S=12&20,FOR COVER |
10 | ||
| 90116-10104 |
BJ4#,FJ4#,55,HJ45 L=50,S=12 & 18,L=50,S=12&18,FOR CARRIER |
2 | ||
| 42109 - COVER SUB-ASSY, REAR AXLE HOUSING | ||||
| 42109-60020 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42109-60020 |
HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN);BJ4#,FJ4#,55..ARL,GEN |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60091 |
BJ40 FOR FULL FLOATING AXLE |
1 | ||
| 42110-60051 |
BJ40..EUR,GEN FOR SEMI FLOATING AXLE |
1 | ||
| 42110-60092 |
BJ40 FOR FULL FLOATING AXLE |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03023 |
BJ4#,FJ4#,55,HJ45 10-1.25PX30-14 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42137 - COLLAR, REAR AXLE HOUSING SIDE | ||||
| 42137-55010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42183 - GASKET, REAR AXLE HOUSING COVER | ||||
| 42183-35010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42183-35010 |
BJ4#,FJ4#,55,HJ45..EUR,GEN |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60010 |
BJ40 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60010 |
BJ40 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60010 |
BJ40 |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-10013 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10387 |
BJ40,FJ40,45,HJ45 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10387 |
BJ40,FJ40,45,HJ45 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10387 |
BJ40,FJ40,45,HJ45 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
(7509-8007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10103 |
BJ4#,FJ4#,55,HJ45 L=37,S=12 & 25,L=37,S=12&25,FOR CARRIER |
8 | ||
| 90116-10107 |
BJ4#,FJ4#,55,HJ45 L=32,S=12 & 20,COVER,L=32,S=12&20,FOR COVER |
10 | ||
| 90116-10107 |
BJ4#,FJ4#,55,HJ45..EUR,GEN L=32,S=12 & 20,COVER,L=32,S=12&20,FOR COVER |
10 | ||
| 90116-10104 |
BJ4#,FJ4#,55,HJ45 L=50,S=12 & 18,L=50,S=12&18,FOR CARRIER |
2 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60091 |
BJ40 FOR FULL FLOATING AXLE |
1 | ||
| 42110-60051 |
BJ40..EUR,GEN FOR SEMI FLOATING AXLE |
1 | ||
| 42110-60092 |
BJ40 FOR FULL FLOATING AXLE |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03023 |
BJ4#,FJ4#,55,HJ45 10-1.25PX30-14 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60010 |
BJ40 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60010 |
BJ40 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60010 |
BJ40 |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-10013 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10387 |
BJ40,FJ40,45,HJ45 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10387 |
BJ40,FJ40,45,HJ45 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10387 |
BJ40,FJ40,45,HJ45 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
(7909-8007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60021 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60016 |
BJ4#,HJ45;FJ4#,55..ARL,GEN *AXC=K082,*FGR=37:9,R=37:9=4.111 |
1 | ||
| 41110-60015 |
BJ4#,HJ45;FJ4#,55..ARL,GEN R=37:9=4.111 |
1 | ||
| 41110-60070 |
BJ4#,HJ45;FJ4#,55..ARL,GEN R=37:9=4.111,L.S.D. |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69049 |
BJ4#,HJ45;FJ4#,55..ARL,GEN N=37:9 |
1 | ||
| 41201-69105 |
BJ4#,HJ45;FJ4#,55..ARL,GEN *FGR=37:9,N=37:9 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30187 |
BJ4#,FJ4#,55,HJ45 T=2.83-2.85,T=2.83-2.85 |
1 | ||
| 90560-30184 |
BJ4#,FJ4#,55,HJ45 T=2.74-2.76,T=2.74-2.76 |
1 | ||
| 90560-30191 |
BJ4#,FJ4#,55,HJ45 T=2.92-2.94,T=2.92-2.94 |
1 | ||
| 90560-30186 |
BJ4#,FJ4#,55,HJ45 T=2.80-2.82,T=2.80-2.82 |
1 | ||
| 90560-30185 |
BJ4#,FJ4#,55,HJ45 T=2.77-2.79,T=2.77-2.79 |
1 | ||
| 90560-30192 |
BJ4#,FJ4#,55,HJ45 T=2.95-2.97,T=2.95-2.97 |
1 | ||
| 90560-30199 |
BJ4#,FJ4#,55,HJ45 T=2.98-3.00,T=2.98-3.00 |
1 | ||
| 90560-30188 |
BJ4#,FJ4#,55,HJ45 T=2.86-2.88,T=2.86-2.88 |
1 | ||
| 90560-30190 |
BJ4#,FJ4#,55,HJ45 T=2.89-2.91,T=2.89-2.91 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-30035 |
BJ4#,FJ4#,55,HJ45 T=0.25 |
4 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-70102 |
BJ4#,FJ4#,55,HJ45 T=0.30 |
2 | ||
| 90564-68001 |
BJ4#,FJ4#,55,HJ45 T=0.25,T=0.25 |
2 | ||
| 90564-70104 |
BJ4#,FJ4#,55,HJ45 T=0.45 |
2 | ||
| 90564-70101 |
BJ4#,FJ4#,55,HJ45 T=0.25 |
2 | ||
| 90564-70103 |
BJ4#,FJ4#,55,HJ45 T=0.35 |
2 | ||
| 90564-70121 |
BJ4#,FJ4#,55,HJ45 T=0.40 |
2 | ||
| 90564-68003 |
BJ4#,FJ4#,55,HJ45 T=0.35,T=0.35 |
2 | ||
| 90564-68005 |
BJ4#,FJ4#,55,HJ45 T=0.45,T=0.45 |
2 | ||
| 90564-68002 |
BJ4#,FJ4#,55,HJ45 T=0.30,T=0.30 |
2 | ||
| 90564-68004 |
BJ4#,FJ4#,55,HJ45 T=0.40,T=0.40 |
2 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45001 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45001 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
1 | ||
| 41311-36010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10021 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ4#,FJ4#,55,HJ45 N=16,FOR L.S.D. |
2 | ||
| 41331-35020 |
BJ4#,FJ4#,55,HJ45 N=16 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ4#,FJ4#,55,HJ45 N=16,FOR L.S.D. |
2 | ||
| 41331-35020 |
BJ4#,FJ4#,55,HJ45 N=16 |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-85001 |
BJ4#,FJ4#,55,HJ45 CW=3.5,WD=8.5,FOR L.S.D. |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-60010 |
BJ4#,FJ4#,55,HJ45 N=10,FOR L.S.D. |
4 | ||
| 41341-55012 |
BJ4#,FJ4#,55,HJ45 N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-60010 |
BJ4#,FJ4#,55,HJ45 N=10,FOR L.S.D. |
4 | ||
| 41341-55012 |
BJ4#,FJ4#,55,HJ45 N=10 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41351-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
4 | ||
| 41351-35010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41351-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
4 | ||
| 41351-35010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BJ4#,FJ4#,55,HJ45 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60020 |
BJ4#,FJ4#,55,HJ45 T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60080 |
BJ4#,FJ4#,55,HJ45 MARK C,FOR L.S.D. |
2 | ||
| 41361-60040 |
BJ4#,FJ4#,55,HJ45 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60090 |
BJ4#,FJ4#,55,HJ45 MARK D,FOR L.S.D. |
2 | ||
| 41361-60070 |
BJ4#,FJ4#,55,HJ45 MARK B,FOR L.S.D. |
2 | ||
| 41361-60120 |
BJ4#,FJ4#,55,HJ45 MARK G,FOR L.S.D. |
2 | ||
| 41361-60060 |
BJ4#,FJ4#,55,HJ45 MARK A,FOR L.S.D. |
2 | ||
| 41361-60100 |
BJ4#,FJ4#,55,HJ45 MARK E,FOR L.S.D. |
2 | ||
| 41361-35010 |
BJ4#,FJ4#,55,HJ45 T=1.55-1.65 |
2 | ||
| 41361-60130 |
BJ4#,FJ4#,55,HJ45 MARK H,FOR L.S.D. |
2 | ||
| 41361-60110 |
BJ4#,FJ4#,55,HJ45 MARK F,FOR L.S.D. |
2 | ||
| 41361-60170 |
BJ4#,FJ4#,55,HJ45 MARK M,FOR L.S.D. |
2 | ||
| 41361-60160 |
BJ4#,FJ4#,55,HJ45 MARK L,FOR L.S.D. |
2 | ||
| 41361-60030 |
BJ4#,FJ4#,55,HJ45 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60150 |
BJ4#,FJ4#,55,HJ45 MARK K,FOR L.S.D. |
2 | ||
| 41361-60140 |
BJ4#,FJ4#,55,HJ45 MARK J,FOR L.S.D. |
2 | ||
| 41361-60180 |
BJ4#,FJ4#,55,HJ45 MARK N,FOR L.S.D. |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
BJ4#,FJ4#,55,HJ45 T=1.60,T=1.55-1.65 |
2 | ||
| 41361-60020 |
BJ4#,FJ4#,55,HJ45 T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60080 |
BJ4#,FJ4#,55,HJ45 MARK C,FOR L.S.D. |
2 | ||
| 41361-60040 |
BJ4#,FJ4#,55,HJ45 T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60090 |
BJ4#,FJ4#,55,HJ45 MARK D,FOR L.S.D. |
2 | ||
| 41361-60070 |
BJ4#,FJ4#,55,HJ45 MARK B,FOR L.S.D. |
2 | ||
| 41361-60120 |
BJ4#,FJ4#,55,HJ45 MARK G,FOR L.S.D. |
2 | ||
| 41361-60060 |
BJ4#,FJ4#,55,HJ45 MARK A,FOR L.S.D. |
2 | ||
| 41361-60100 |
BJ4#,FJ4#,55,HJ45 MARK E,FOR L.S.D. |
2 | ||
| 41361-35010 |
BJ4#,FJ4#,55,HJ45 T=1.55-1.65 |
2 | ||
| 41361-60130 |
BJ4#,FJ4#,55,HJ45 MARK H,FOR L.S.D. |
2 | ||
| 41361-60110 |
BJ4#,FJ4#,55,HJ45 MARK F,FOR L.S.D. |
2 | ||
| 41361-60170 |
BJ4#,FJ4#,55,HJ45 MARK M,FOR L.S.D. |
2 | ||
| 41361-60160 |
BJ4#,FJ4#,55,HJ45 MARK L,FOR L.S.D. |
2 | ||
| 41361-60030 |
BJ4#,FJ4#,55,HJ45 T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60150 |
BJ4#,FJ4#,55,HJ45 MARK K,FOR L.S.D. |
2 | ||
| 41361-60140 |
BJ4#,FJ4#,55,HJ45 MARK J,FOR L.S.D. |
2 | ||
| 41361-60180 |
BJ4#,FJ4#,55,HJ45 MARK N,FOR L.S.D. |
2 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60050 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
6 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60050 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
6 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60050 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
6 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
1 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
6 | ||
| 41387 - RETAINER, SPRING, RH | ||||
| 41387-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
1 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-60010 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
1 | ||
| 41388A - PIN, STRAIGHT (FOR SPRING RETAINER, LH) | ||||
| 90250-04007 |
BJ4#,FJ4#,55,HJ45 FOR L.S.D. |
3 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
