BJ40R-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )TP,V

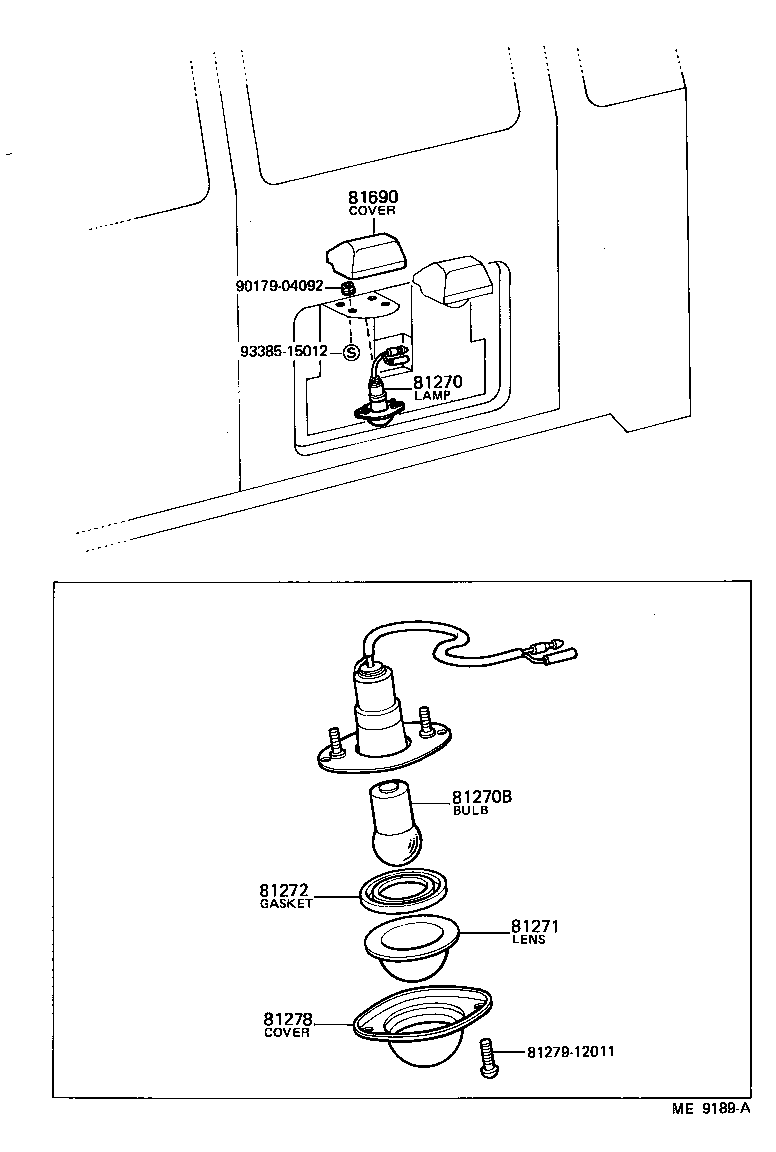

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 8127912011 81690 9017904092 9338515012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-60071

BJ4#..GEN

24V

 2
81270-60101

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V 10W,12V 10W

 2
90981-16017

BJ4#..EUR,GEN

24V 10W,24V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10011

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V

 2
81271-14010

BJ4#..GEN

24V

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

BJ4#,FJ4#,HJ47

 2
81278 - COVER, LICENSE PLATE LAMP
81278-60090

BJ4#..GEN

24V

 2
81278-10011

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V

 2
81690 - COVER SUB-ASSY, LICENSE PLATE LAMP
81690-90301

BJ4#,FJ4#,HJ47..(TP,V)..GEN

CHROME PLATED

 2
81690-90300

BJ4#,FJ4#,HJ47..TP,V

GRAY METALLIC PAINT

 2
Common parts
81279-12011
90179-04092
93385-15012
