BJ40R-KC (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Jul 1980
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8410)B,3B..ARL,GEN

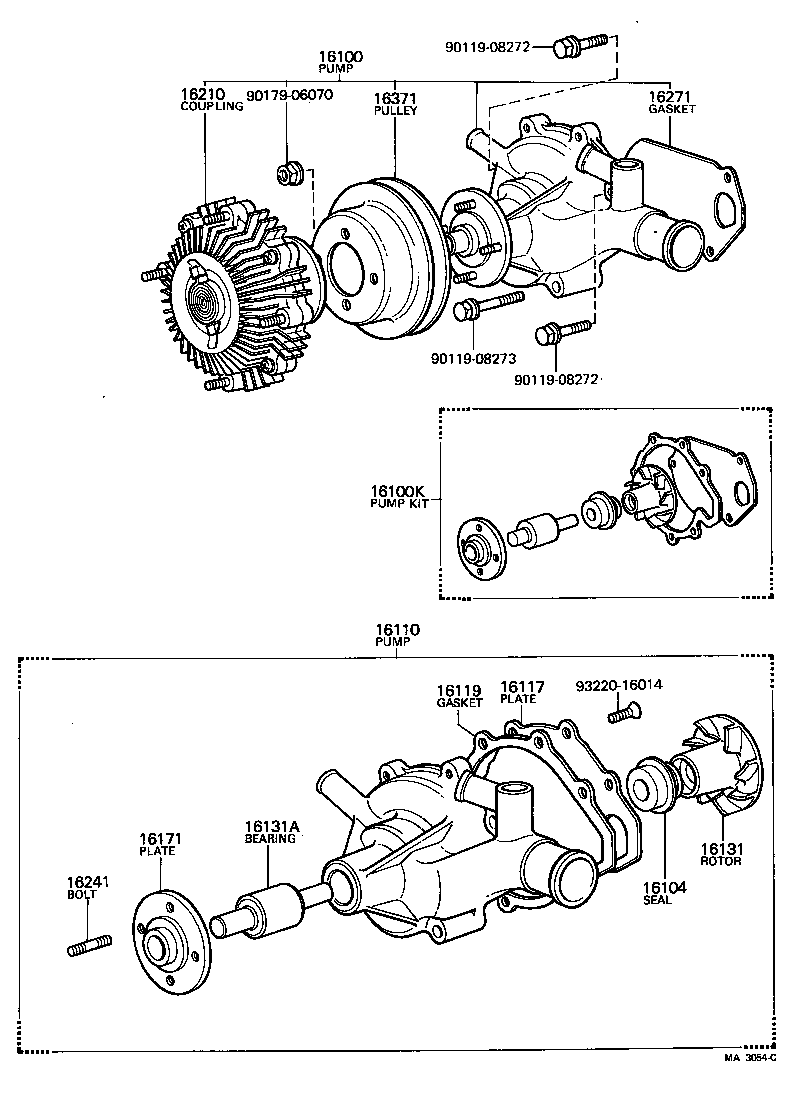

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08272 | ||||
| 90119-08273 | ||||
| 93220-16014 | ||||
(7709-8007)B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59035 |
B..BJ4#..EUR,GEN W/COUPLING |
1 | ||
| 16100-59017 |
B..BJ4# ALUMINUM BODY |
1 | ||
| 16100-59017 |
B..BJ4#..ARL,GEN ALUMINUM BODY |
1 | ||
| 16100-59055 |
B..BJ4#..ARL,GEN IRON BODY |
1 | ||
| 16100K - PUMP KIT, WATER | ||||
| 04161-56020 |
B..BJ4#..ARL,GEN |
1 | ||
| 04161-56030 |
B..BJ4#..EUR,GEN W/COUPLING |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41110 |
B..BJ4# |
1 | ||
| 16104-41110 |
B..BJ4# |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-56020 |
B..BJ4#..EUR,GEN W/COUPLING |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-56020 |
B..BJ4# |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30005 |
B..BJ4#..EUR,GEN W/COUPLING |
1 | ||
| 90369-30028 |
B..BJ4#..ARL,GEN |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-38022 |
B..BJ4#..EUR,GEN W/COUPLING |
1 | ||
| 16171-56010 |
B..BJ4#..ARL,GEN |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-56020 |
B..BJ4#..EUR,GEN |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16193-33030 |
B..BJ4#..EUR,GEN W/COUPLING |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-56012 |
B..BJ4# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-56020 |
B..BJ4#..EUR,GEN W/COUPLING |
1 | ||
| 16371-56010 |
B..BJ4#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90119-08272 | ||||
| 90119-08273 | ||||
| 90179-06070 | ||||
| 93220-16014 | ||||
