BJ40R-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

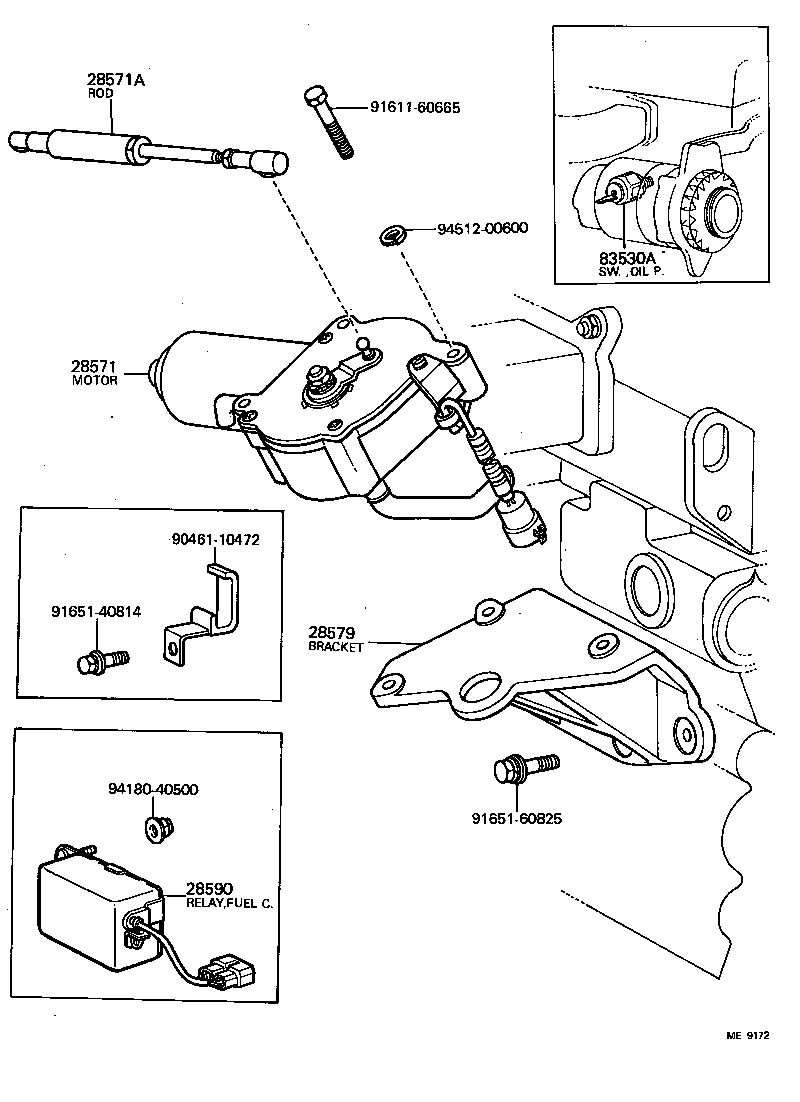

Click highlighted areas on diagram

diagram 28571 28571A 28579 28590 83530A 9046110472 9161160665 9165140814 9165160825 9418040500 9451200600
Part # Description Qty Price
28571 - MOTOR, FUEL CONTROL
28571-56130

B,3B..BJ40,42,43..GEN

24V

 1
28571-56120

B,3B..BJ4#..ARL,GEN

12V

 1
28571-56130

B,3B..BJ4#..EUR,GEN

24V

 1
28571A - ROD, FUEL CONTROL MOTOR
84580-36021

B,3B..BJ4#

 1
28579 - BRACKET, FUEL CONTROL MOTOR
28579-56030

B,3B..BJ4#

 1
28590 - RELAY ASSY, FUEL CONTROL
28590-57010

B,3B,2H..BJ4#,HJ47..ARL,GEN

12V

 1
28590-57020

B,3B..BJ4#..EUR,GEN

24V

 1
28590-57020

B,3B..BJ40,42,43..GEN

24V

 1
83530A - SWITCH ASSY, OIL PRESSURE
83530-14010

BJ4#,HJ47

 1
Common parts
90461-10472
91611-60665
91651-40814
91651-60825
94180-40500
94512-00600
