BJ40R-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )TP,V

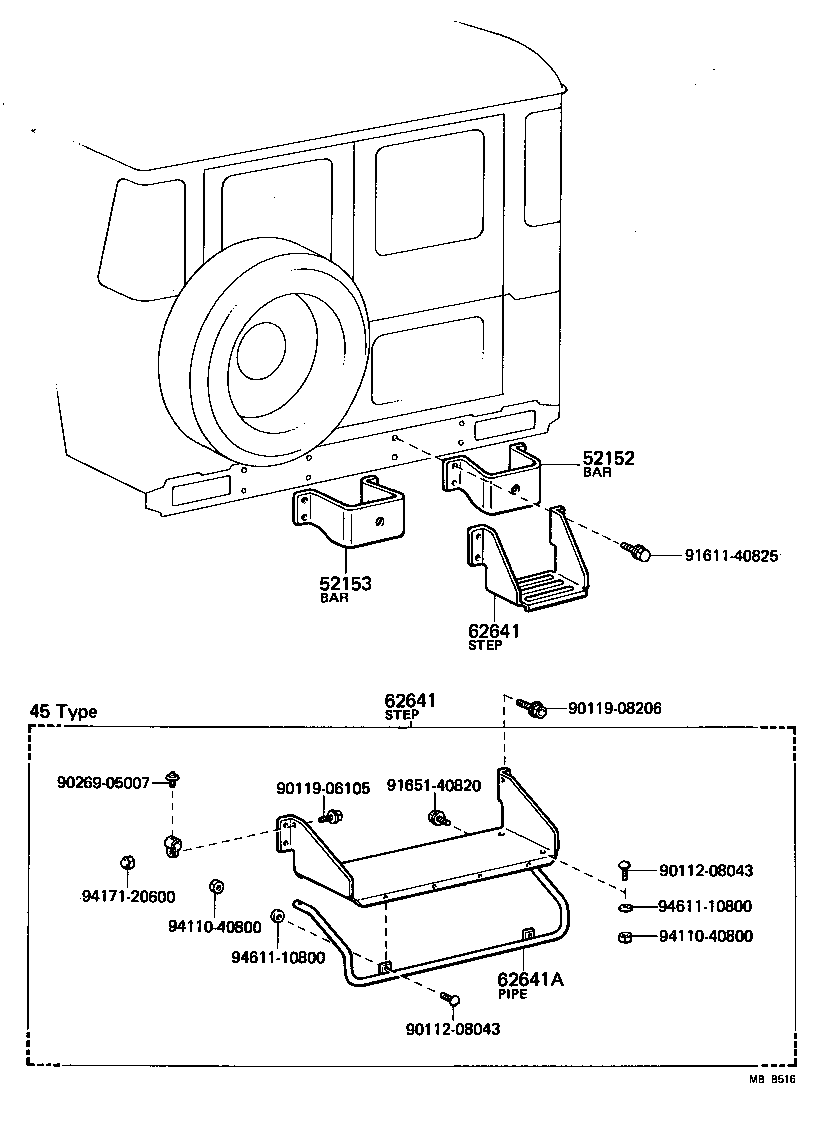

Click highlighted areas on diagram

diagram 52152 52153 62641 62641 62641A 9011208043 9011208043 9011906105 9011908206 9026905007 9161140825 9165140820 9411040800 9411040800 9417120600 9461110800 9461110800
Part # Description Qty Price
52152 - BAR, REAR BUMPER, RH
52152-60040

BJ40,42,43,46,FJ4#..(TP,V)..GEN

CHROME PLATED

 1
52152-60011

BJ40,42,43,46,FJ4#..TP,V

 1
52153 - BAR, REAR BUMPER, LH
52153-60011

BJ40,42,43,46,FJ4#..TP,V

 1
52153-60040

BJ40,42,43,46,FJ4#..(TP,V)..GEN

CHROME PLATED

 1
62641 - STEP, REAR
62641-90300

BJ40,42,43,46,FJ40,43

 1
62641 - STEP, REAR
62641-90300

BJ40,42,43,46,FJ40,43

 1
Common parts
90112-08043
90119-06105
90119-08206
90269-05007
91611-40825
91651-40820
94110-40800
94171-20600
94611-10800
