BJ40LV-KJ (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Jul 1980
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7709-8007)BJ4#

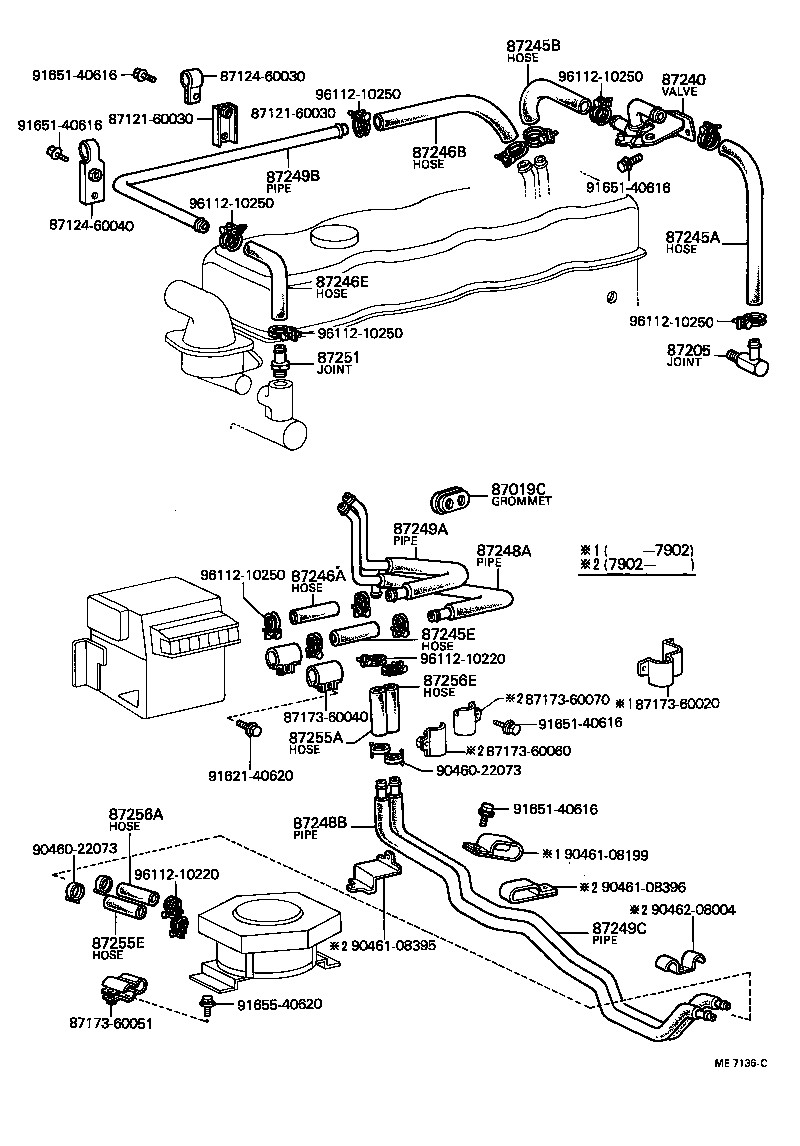

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01167 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-60330 |
BJ40..V..GEN W/COOLER |
1 | ||
| 87248-60251 |
BJ4# FOR W/REAR HEATER |
1 | ||
| 87248-60350 |
BJ40..V..GEN FOR W/REAR HEATER & COOLER |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-60122 |
BJ4#,FJ4#..TP,V |
1 | ||
| 87248-60123 |
BJ4#,FJ4#..TP,V |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87249-60121 |
BJ4# FOR W/REAR HEATER |
1 | ||
| 87248-60340 |
BJ40..V..GEN W/COOLER |
1 | ||
| 87248-60360 |
BJ40..V..GEN FOR W/REAR HEATER & COOLER |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-60133 |
BJ4#,FJ4#..TP,V |
1 | ||
| 87248-60132 |
BJ4#,FJ4#..TP,V |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99552-20060 |
BJ4#,FJ4#..TP,V L=60 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99552-20060 |
BJ4#,FJ4#..TP,V L=60 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99552-20060 |
BJ4#,FJ4#..TP,V L=60 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99552-20060 |
BJ4#,FJ4#..TP,V L=60 |
1 | ||
| Common parts | ||||
| 87121-60030 | ||||
| 87124-60030 | ||||
| 87124-60040 | ||||
| 87173-60020 | ||||
| 87173-60040 | ||||
| 87173-60051 | ||||
| 87173-60060 | ||||
| 87173-60070 | ||||
| 90460-22073 | ||||
| 90461-08199 | ||||
| 90461-08395 | ||||
| 90461-08396 | ||||
| 90462-08004 | ||||
| 91621-40620 | ||||
| 91651-40616 | ||||
| 91655-40620 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||
