BJ40LV-KCW (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

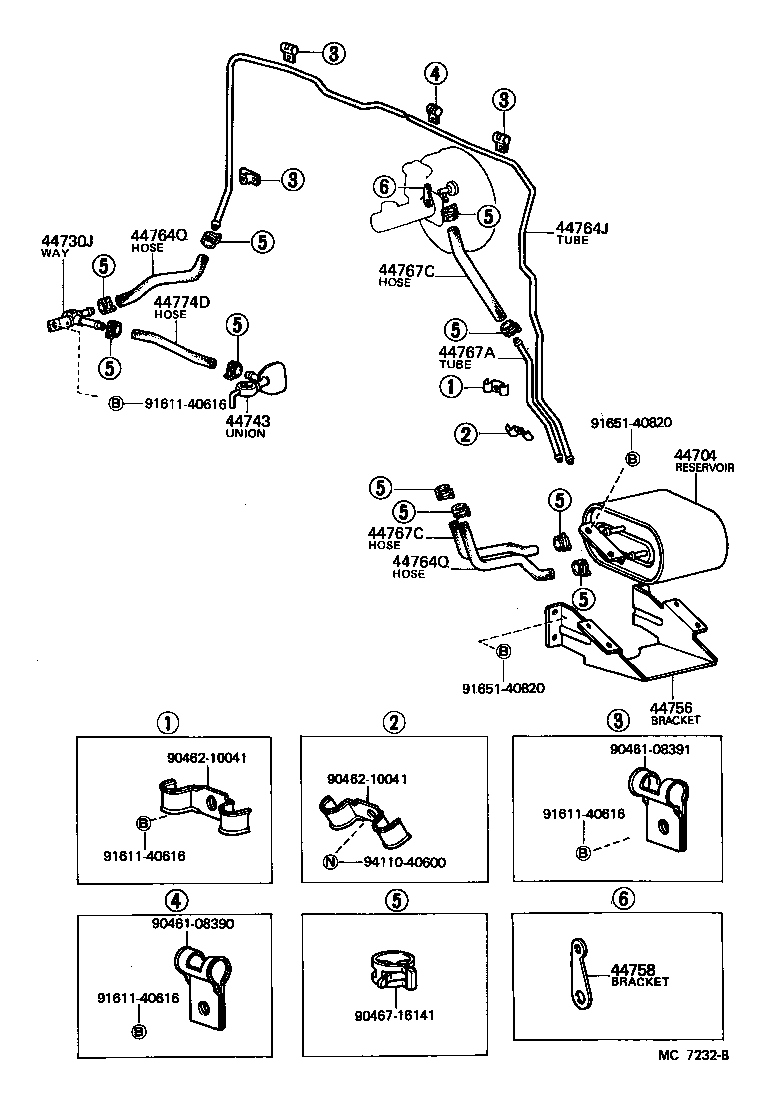

(8008-8410)BJ4#..LHD

Click highlighted areas on diagram

diagram 44704 44730J 44743 44756 44758 44764J 44764Q 44764Q 44767A 44767C 44767C 44774D 9046108390 9046108391 9046210041 9046210041 9046716141 9161140616 9161140616 9161140616 9161140616 9165140820 9165140820 9411040600
Part # Description Qty Price
Common parts
90461-08390
90461-08391
90462-10041
90467-16141
91611-40616
91651-40820
94110-40600

(7501-8007)

Click highlighted areas on diagram

diagram 44608 44610 44610K 44626 44629 44642 44643 44657A 44657B 44662 44662B 44662C 44683 44683A 44696 44730 44758 9017908146 9331914008
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-30050

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44610 - BOOSTER ASSY, BRAKE
44610-60030

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44610K - BOOSTER KIT, BRAKE
04443-60030

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

BJ4#,FJ4#,55,HJ45

FOR FRONT DRUM BRAKE

 1
44642 - PISTON, BRAKE BOOSTER
44642-14170

BJ4#,FJ4#,55,HJ45

 1
44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)
44645-20100

BJ4#,FJ4#,55,HJ45

 1
44662 - RETAINER, REACTION, NO.1
44662-20100

BJ4#,FJ4#,55,HJ45

 1
44662C - PLATE, REACTION, NO.1
44653-20150

BJ4#,FJ4#,55,HJ45

 1
44683 - CONNECTOR, BOOSTER BODY
44682-20150

BJ4#,FJ4#,55,HJ45

 1
44683A - LOCK, CONNECTOR
44683-20100

BJ4#,FJ4#,55,HJ45

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22060

BJ4#,FJ4#,55,HJ45

FOR BOOSTER

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-30040

BJ4#,FJ4#,55,HJ45..LHD

 1
Common parts
90179-08146
93319-14008
