BJ40LV-KC (1980)
Toyota Land Cruiser
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36041 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-36050 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73061 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-36070 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-60041 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-36050 |
BJ4#,FJ4#,HJ47 T=0.185-0.215,T=0.20 |
1 | ||
| 45323-36070 |
BJ4#,FJ4#,HJ47 T=0.055-0.065,T=0.06 |
1 | ||
| 45323-36010 |
BJ4#,FJ4#,HJ47 T=0.045-0.055,T=0.05 |
1 | ||
| 45323-36030 |
BJ4#,FJ4#,HJ47 T=0.072-0.088,T=0.08 |
1 | ||
| 45323-36080 |
BJ4#,FJ4#,HJ47 T=0.082-0.098,T=0.07 |
1 | ||
| 45323-36020 |
BJ4#,FJ4#,HJ47 T=0.065-0.075,T=0.07 |
1 | ||
| 45323-36060 |
BJ4#,FJ4#,HJ47 T=0.485-0.515,T=0.50 |
1 | ||
| 45323-36040 |
BJ4#,FJ4#,HJ47 T=0.092-0.108,T=0.10 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45354-36010 |
BJ4#,FJ4#,HJ47 T=2.10,T=2.10 |
1 | ||
| 45353-36010 |
BJ4#,FJ4#,HJ47 T=2.05,T=2.05 |
1 | ||
| 45355-36010 |
BJ4#,FJ4#,HJ47 T=2.15,T=2.15 |
1 | ||
| 45352-36010 |
BJ4#,FJ4#,HJ47 T=2.00,T=2.00 |
1 | ||
| 45356-36010 |
BJ4#,FJ4#,HJ47 T=2.20,T=2.20 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36020 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
BJ4#,FJ4#,HJ47 |
1 | ||
| Common parts | ||||
| 90116-10101 | ||||
| 90170-12161 | ||||
| 91112-71032 | ||||
| 91611-60822 | ||||
| 91611-61022 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(8008- )FJ4#..LHD ; (8210-8410)BJ4#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30050 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44105-30060 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-67001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 90301-35001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=43.4,OD=43.4,T=4.0 |
1 | ||
| 90301-65145 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 90301-35001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=43.4,OD=43.4,T=4.0 |
1 | ||
| 90301-65145 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 90301-35001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=43.4,OD=43.4,T=4.0 |
1 | ||
| 90301-65145 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=32,OD=42,OD=42.0 |
1 | ||
| 90562-31001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=35.7,OD=35.7 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=32,OD=42,OD=42.0 |
1 | ||
| 90562-31001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=35.7,OD=35.7 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-60020 |
FJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45..LHD |
2 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-60010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
| 93219-15008 | ||||
| 94521-00500 | ||||
| Linked diagrams | ||||
| 1702 | ||||
(8008-8506)FJ4#..RHD ; (8110-8410)BJ42..ARL ; (8210-8410)BJ40,45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30050 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44105-30060 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-67001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 90301-35001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=43.4,OD=43.4,T=4.0 |
1 | ||
| 90301-65145 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 90301-35001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=43.4,OD=43.4,T=4.0 |
1 | ||
| 90301-65145 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 90301-35001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=43.4,OD=43.4,T=4.0 |
1 | ||
| 90301-65145 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=32,OD=42,OD=42.0 |
1 | ||
| 90562-31001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=35.7,OD=35.7 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) ID=32,OD=42,OD=42.0 |
1 | ||
| 90562-31001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) OD=35.7,OD=35.7 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-60020 |
FJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45..LHD |
2 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-60010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90170-10208 | ||||
| 93219-15008 | ||||
| 94521-00500 | ||||

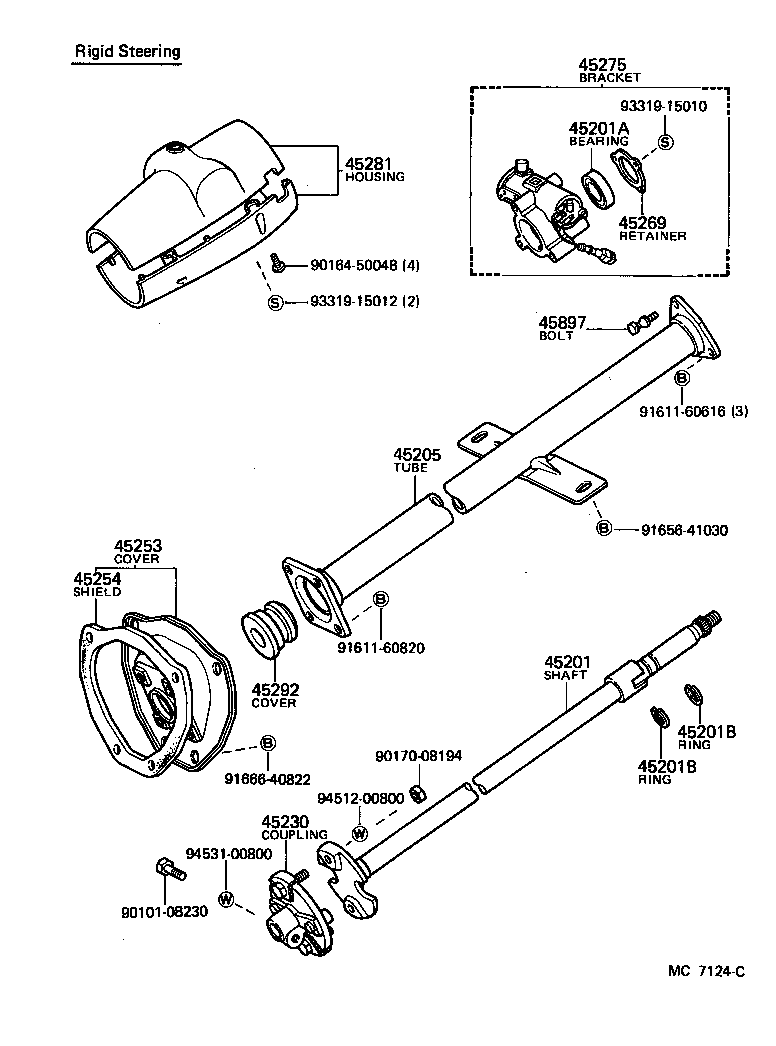

(8008- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-60034 |
BJ4#,FJ4#,HJ47 RIGID STEERING |
1 | ||
| 45201-60071 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) RIGID STRG,W/POWER STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BJ4#,FJ4#,HJ47 T=1.20,CURVED TYPE |
1 | ||
| 90520-17042 |
BJ4#,FJ4#,HJ47 T=1.20,FLAT TYPE |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BJ4#,FJ4#,HJ47 T=1.20,CURVED TYPE |
1 | ||
| 90520-17042 |
BJ4#,FJ4#,HJ47 T=1.20,FLAT TYPE |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60090 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD RIGID STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-60030 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD RIGID STEERING |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60040 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-60042 |
BJ4#,HJ47 W/STEERING LOCK |
1 | ||
| 45280-60032 |
BJ4#,HJ47..GEN W/O STEERING LOCK |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-60909 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD W/STEERING LOCK |
1 | ||
| 45286-60907 |
BJ4#,FJ4#,HJ47..LHD W/O STEERING LOCK |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-60011 |
BJ4#,FJ4#,HJ47 RIGID STEERING |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91656-41030 | ||||
| 91666-40822 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-60034 |
BJ4#,FJ4#,HJ47 RIGID STEERING |
1 | ||
| 45201-60071 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) RIGID STRG,W/POWER STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BJ4#,FJ4#,HJ47 T=1.20,CURVED TYPE |
1 | ||
| 90520-17042 |
BJ4#,FJ4#,HJ47 T=1.20,FLAT TYPE |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
BJ4#,FJ4#,HJ47 T=1.20,CURVED TYPE |
1 | ||
| 90520-17042 |
BJ4#,FJ4#,HJ47 T=1.20,FLAT TYPE |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60090 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD RIGID STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-60030 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD RIGID STEERING |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60040 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-36010 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-60042 |
BJ4#,HJ47 W/STEERING LOCK |
1 | ||
| 45280-60032 |
BJ4#,HJ47..GEN W/O STEERING LOCK |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-60909 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD W/STEERING LOCK |
1 | ||
| 45286-60907 |
BJ4#,FJ4#,HJ47..LHD W/O STEERING LOCK |
1 | ||
| Common parts | ||||
| 90101-08230 | ||||
| 90119-08185 | ||||
| 90119-10129 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 91611-40816 | ||||
| 91611-60616 | ||||
| 91666-40822 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
(8008-8506)FJ4#..RHD ; (8110-8410)BJ42..ARL ; (8210-8410)BJ40,45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-35040 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44111K - GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL | ||||
| 04455-35010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-60041 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| Common parts | ||||
| 90116-10101 | ||||
| 91112-71032 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(8008- )FJ4#..LHD ; (8210-8410)BJ4#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-35040 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 44111K - GASKET KIT, POWER STEERING CROSS SHAFT OVERHAUL | ||||
| 04455-35010 |
BJ42..5F;BJ40,45..VKC;BJ42..LHD..GEN;BJ45..LHD..PIC;BJ40,43,46..LHD..(TPC,VLS) |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-60041 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| Common parts | ||||
| 90116-10101 | ||||
| 91112-71032 | ||||
| 94110-51000 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
