BJ40LV-KC (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8204)B,3B

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27351 27352 27353 27356 27370 27371 27372 2737845020 2737845020 2737854010 2737854010 2738354010 2738754010 2738754010 2738756070 27410 27411 27441 9004179064 9009901437 9009902181 9009902208 9009904915 9009904916 9009904947 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9009914055 9010510041 9011908344 9017906158 9331515010
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-54010
27387-56070
90041-79064
90099-01437
90099-02181
90099-02208
90099-04915
90099-04916
90099-04947
90099-04948
90099-05118
90099-05119
90099-05135
90099-14055
90105-10041
90119-08344
90179-06158
93315-15010

(6903-7501)F

Click highlighted areas on diagram

diagram 27020 27036 27036 27113 27212 27310 27310A 27310B 27310C 27315 27316 27330 27330A 27350 27351 27352 27353 27359 27371 27371 27372 27373 27376 27381 2738340020 2738440010 2738440010 27410 27410A 27411 27411A 27441 27442 27443 27444 9009220482 9009605004 9009606005 9009900806 9009901012 9009902102 9009902103 9009902120 9009902129 9009904824 9009904829 9009905003 9010110131 9020108065 9111170830 9311914008 9311914010 9321914006 9321914008 9321915020 9321915020 9411041000 9412040600 9412040600 9451100400 9451100400 9451100400 9451100400 9451100500 9451100500 9451100500 9451100500 9451100500 9451100600 9451100600 9451200800 9451201000 9461110500 9461110500 9461110600 9461211000 9461211000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56012

B..BJ4#

24V 15A,FOR VACUUM PUMP

 1
27020-56022

B..BJ4#

12V 35A,FOR VACUUM PUMP

 1
27020-56050

B..BJ4#

12V 35A

 1
27020-56040

B..BJ40..GEN

24V 15A

 1
27020-56050

B..BJ40..GEN

12V 35A

 1
27020-56023

B..BJ4#..ARL,GEN

12V 35A,FOR VACUUM PUMP

 1
27020-56031

B..BJ4#

24V 20A,FOR VACUUM PUMP

 1
27020-56013

B..BJ4#

24V 15A,FOR VACUUM PUMP

 1
27020-56040

B..BJ4#

24V 15A

 1
27020-56032

B..BJ4#

24V 20A,FOR VACUUM PUMP

 1
27020-56013

B..BJ4#..ARL,GEN

24V 15A,FOR VACUUM PUMP

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-56011

B..BJ4#

 1
27036-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-56011

B..BJ4#

 1
27036-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-56011

B..BJ4#

 1
27312-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-56010

B..BJ4#

 1
27212-56010

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56011

B..BJ4#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56050

B..BJ4#

12V 35A,L/VACUUM PUMP

 1
27330-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27330-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27330-46031

B,H..BJ4#,HJ45

12V 35A,W/VACUUM PUMP

 1
27330-56030

B..BJ4#

24V 20A,W/VACUUM PUMP

 1
27330-56010

B..BJ4#..ARL,GEN

24V 15A,W/VACUUM PUMP

 1
27330-46031

B..BJ4#..ARL,GEN

12V 35A,W/VACUUM PUMP

 1
27330-56050

B..BJ40..GEN

12V 35A,L/VACUUM PUMP

 1
27330-56010

B..BJ4#

24V 15A,W/VACUUM PUMP

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10015

B..BJ40..GEN

L/VACUUM PUMP,6302 VV

 1
90099-10015

B..BJ4#

L/VACUUM PUMP,6302 VV

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56050

B..BJ4#

12V 35A,L/VACUUM PUMP

 1
27350-56011

B..BJ4#

W/VACUUM PUMP

 1
27350-56050

B..BJ40..GEN

12V 35A,L/VACUUM PUMP

 1
27350-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27350-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27350-56013

B..BJ4#

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

B,H..BJ4#,HJ45

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-56011

B..BJ4#

 1
27353-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27371 - BRUSH, ALTERNATOR
27371-31011

B,H,2F..BJ4#,FJ4#,55,HJ45

12V 40 & 35A,24V 15 & 20A

 2
27371-31011

B,F,H,2F..BJ4#,FJ4#,55,HJ45

12V 40,35 & 50A,24V 15 & 20A

 2
27371 - BRUSH, ALTERNATOR
27371-31011

B,H,2F..BJ4#,FJ4#,55,HJ45

12V 40 & 35A,24V 15 & 20A

 2
27371-31011

B,F,H,2F..BJ4#,FJ4#,55,HJ45

12V 40,35 & 50A,24V 15 & 20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

B,H,2F..BJ4#,FJ4#,55,HJ45

12V 40 & 35A ,24V 15 & 20A

 2
27372-31011

B,F,H,2F..BJ4#,FJ4#,55,HJ45

12V 40,35 & 50A,24V 15 & 20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-46031

B,H..BJ4#,HJ45

12V 35A

 1
27410-56010

B..BJ4#

24V 15A

 1
27410-56030

B..BJ4#

24V 20A

 1
27410-56010

B..BJ4#..ARL,GEN

24V 15A

 1
27410-46031

B..BJ4#..ARL,GEN

12V 35A

 1
27411 - PULLEY, ALTERNATOR
27411-56020

B..BJ4#

 1
27411-56010

B..BJ4#

 1
27441 - FAN, ALTERNATOR
27441-46031

B,H..BJ4#,HJ45

 1
27443 - COVER, ALTERNATOR BEARING
27039-56040

B..BJ4#

L/VACUUM PUMP

 1
27039-56040

B..BJ40..GEN

L/VACUUM PUMP

 1
Common parts
27383-40020
27384-40010
90092-20482
90096-05004
90096-06005
90099-00806
90099-01012
90099-02102
90099-02103
90099-02120
90099-02129
90099-04824
90099-04829
90099-05003
90101-10131
90201-08065
91111-70830
93119-14008
93119-14010
93219-14006
93219-14008
93219-15020
94110-41000
94120-40600
94511-00400
94511-00500
94511-00600
94512-00800
94512-01000
94611-10500
94611-10600
94612-11000

(7402-7709)B ; (7501-7709)H

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27311 27330 27330B 27350 27350A 27351 27353 27356 27357 27370 27371 27372 2738331011 2738731011 27410 27411 27411A 27441 2744556010 2744556031 2744656010 2744656011 9009220582 9009220582 9009900862 9009900866 9009900866 9009900891 9009900893 9009901014 9009901390 9009902181 9009905060 9010710459 9011908127 9011908127 9020110283 9020110283 9321914022 9411041000 9451100400 9451101400 9451201000 9452100500 9452100500
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56012

B..BJ4#

24V 15A,FOR VACUUM PUMP

 1
27020-56022

B..BJ4#

12V 35A,FOR VACUUM PUMP

 1
27020-56050

B..BJ4#

12V 35A

 1
27020-56040

B..BJ40..GEN

24V 15A

 1
27020-56050

B..BJ40..GEN

12V 35A

 1
27020-56023

B..BJ4#..ARL,GEN

12V 35A,FOR VACUUM PUMP

 1
27020-56031

B..BJ4#

24V 20A,FOR VACUUM PUMP

 1
27020-56013

B..BJ4#

24V 15A,FOR VACUUM PUMP

 1
27020-56040

B..BJ4#

24V 15A

 1
27020-56032

B..BJ4#

24V 20A,FOR VACUUM PUMP

 1
27020-56013

B..BJ4#..ARL,GEN

24V 15A,FOR VACUUM PUMP

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-56011

B..BJ4#

 1
27036-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-56011

B..BJ4#

 1
27312-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-56010

B..BJ4#

 1
27212-56010

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56011

B..BJ4#

 1
27311 - FRAME, ALTERNATOR DRIVE END
27311-56012

B..BJ4#

 1
27311-56012

B,H..BJ4#,HJ45

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56050

B..BJ4#

12V 35A,L/VACUUM PUMP

 1
27330-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27330-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27330-46031

B,H..BJ4#,HJ45

12V 35A,W/VACUUM PUMP

 1
27330-56030

B..BJ4#

24V 20A,W/VACUUM PUMP

 1
27330-56010

B..BJ4#..ARL,GEN

24V 15A,W/VACUUM PUMP

 1
27330-46031

B..BJ4#..ARL,GEN

12V 35A,W/VACUUM PUMP

 1
27330-56050

B..BJ40..GEN

12V 35A,L/VACUUM PUMP

 1
27330-56010

B..BJ4#

24V 15A,W/VACUUM PUMP

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

B..BJ4#

 1
90099-07103

B,H..BJ4#,HJ45

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56050

B..BJ4#

12V 35A,L/VACUUM PUMP

 1
27350-56011

B..BJ4#

W/VACUUM PUMP

 1
27350-56050

B..BJ40..GEN

12V 35A,L/VACUUM PUMP

 1
27350-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27350-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27350-56013

B..BJ4#

 1
27350A - COVER, REAR END FRAME(FOR VACUUM PUMP OIL SEAL)
27039-56010

B..BJ4#

 1
27039-56010

B,H..BJ4#,HJ45

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

B,H..BJ4#,HJ45

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-56011

B..BJ4#

 1
27353-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-56010

B..BJ4#

 1
27356-56010

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-56011

B..BJ4#

 1
27357-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56010

B..BJ4#

 1
27370-60080

B,H..BJ4#,HJ45

 1
27370-56010

B,H..BJ4#,HJ45

HJ:W/VACUUM PUMP

 1
27371 - BRUSH, ALTERNATOR
27371-31011

B,H,2F..BJ4#,FJ4#,55,HJ45

12V 40 & 35A,24V 15 & 20A

 2
27371-31011

B,F,H,2F..BJ4#,FJ4#,55,HJ45

12V 40,35 & 50A,24V 15 & 20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

B,H,2F..BJ4#,FJ4#,55,HJ45

12V 40 & 35A ,24V 15 & 20A

 2
27372-31011

B,F,H,2F..BJ4#,FJ4#,55,HJ45

12V 40,35 & 50A,24V 15 & 20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-46031

B,H..BJ4#,HJ45

12V 35A

 1
27410-56010

B..BJ4#

24V 15A

 1
27410-56030

B..BJ4#

24V 20A

 1
27410-56010

B..BJ4#..ARL,GEN

24V 15A

 1
27410-46031

B..BJ4#..ARL,GEN

12V 35A

 1
27411 - PULLEY, ALTERNATOR
27411-56020

B..BJ4#

 1
27411-56010

B..BJ4#

 1
27441 - FAN, ALTERNATOR
27441-46031

B,H..BJ4#,HJ45

 1
Common parts
27383-31011
27387-31011
27445-56010
27445-56031
27446-56010
27446-56011
90092-20582
90099-00862
90099-00866
90099-00891
90099-00893
90099-01014
90099-01390
90099-02181
90099-05060
90107-10459
90119-08127
90201-10283
93219-14022
94110-41000
94511-00400
94511-01400
94512-01000
94521-00500

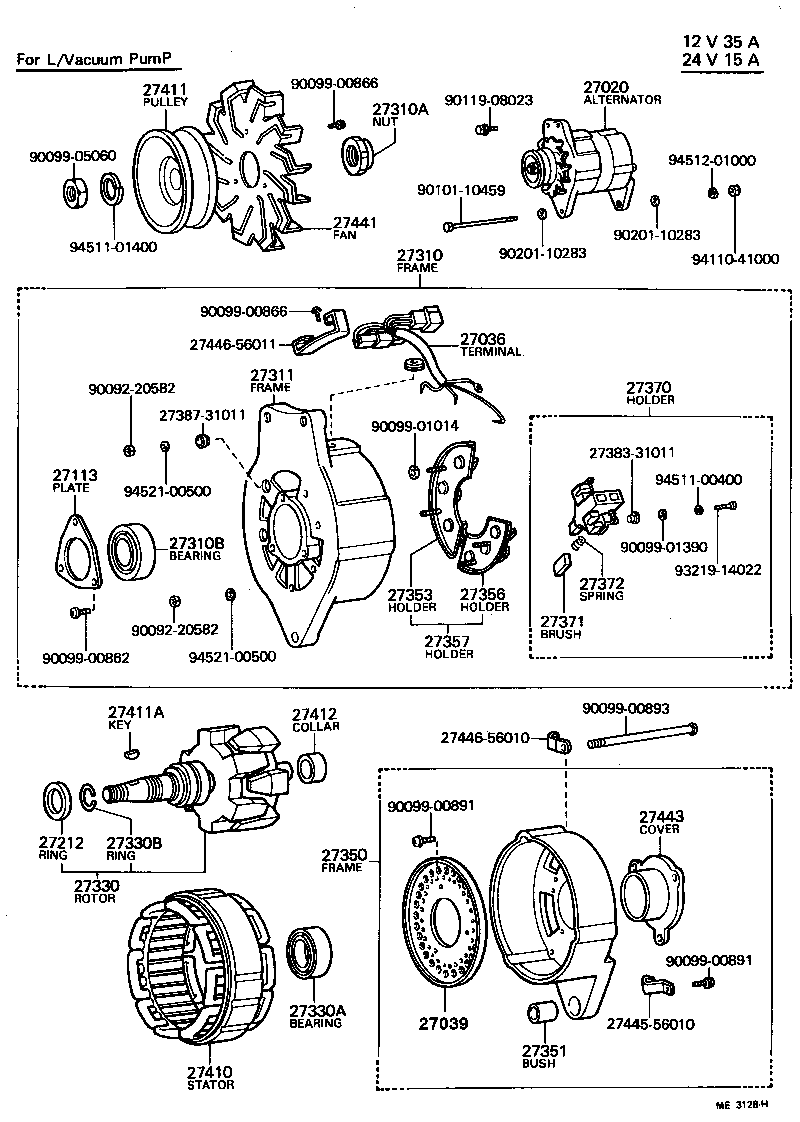

(7402-7709)B

Click highlighted areas on diagram

diagram 27020 27036 27039 27039 27113 27212 27310 27310A 27310B 27311 27330 27330A 27330B 27350 27351 27353 27356 27357 27370 27371 27372 2738331011 2738731011 27410 27411 27411A 27412 27441 27443 2744556010 2744656010 2744656011 9009220582 9009220582 9009900862 9009900866 9009900866 9009900891 9009900891 9009900893 9009901014 9009901390 9009905060 9010110459 9011908023 9020110283 9020110283 9321914022 9411041000 9451100400 9451101400 9451201000 9452100500 9452100500
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56012

B..BJ4#

24V 15A,FOR VACUUM PUMP

 1
27020-56022

B..BJ4#

12V 35A,FOR VACUUM PUMP

 1
27020-56050

B..BJ4#

12V 35A

 1
27020-56040

B..BJ40..GEN

24V 15A

 1
27020-56050

B..BJ40..GEN

12V 35A

 1
27020-56023

B..BJ4#..ARL,GEN

12V 35A,FOR VACUUM PUMP

 1
27020-56031

B..BJ4#

24V 20A,FOR VACUUM PUMP

 1
27020-56013

B..BJ4#

24V 15A,FOR VACUUM PUMP

 1
27020-56040

B..BJ4#

24V 15A

 1
27020-56032

B..BJ4#

24V 20A,FOR VACUUM PUMP

 1
27020-56013

B..BJ4#..ARL,GEN

24V 15A,FOR VACUUM PUMP

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-56011

B..BJ4#

 1
27036-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27039 - COVER, ALTERNATOR REAR END
27041-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27041-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27039 - COVER, ALTERNATOR REAR END
27041-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27041-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-56011

B..BJ4#

 1
27312-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-56010

B..BJ4#

 1
27212-56010

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56011

B..BJ4#

 1
27311 - FRAME, ALTERNATOR DRIVE END
27311-56012

B..BJ4#

 1
27311-56012

B,H..BJ4#,HJ45

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56050

B..BJ4#

12V 35A,L/VACUUM PUMP

 1
27330-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27330-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27330-46031

B,H..BJ4#,HJ45

12V 35A,W/VACUUM PUMP

 1
27330-56030

B..BJ4#

24V 20A,W/VACUUM PUMP

 1
27330-56010

B..BJ4#..ARL,GEN

24V 15A,W/VACUUM PUMP

 1
27330-46031

B..BJ4#..ARL,GEN

12V 35A,W/VACUUM PUMP

 1
27330-56050

B..BJ40..GEN

12V 35A,L/VACUUM PUMP

 1
27330-56010

B..BJ4#

24V 15A,W/VACUUM PUMP

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10015

B..BJ40..GEN

L/VACUUM PUMP,6302 VV

 1
90099-10015

B..BJ4#

L/VACUUM PUMP,6302 VV

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

B..BJ4#

 1
90099-07103

B,H..BJ4#,HJ45

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56050

B..BJ4#

12V 35A,L/VACUUM PUMP

 1
27350-56011

B..BJ4#

W/VACUUM PUMP

 1
27350-56050

B..BJ40..GEN

12V 35A,L/VACUUM PUMP

 1
27350-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27350-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27350-56013

B..BJ4#

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

B,H..BJ4#,HJ45

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-56011

B..BJ4#

 1
27353-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-56010

B..BJ4#

 1
27356-56010

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-56011

B..BJ4#

 1
27357-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56010

B..BJ4#

 1
27370-60080

B,H..BJ4#,HJ45

 1
27370-56010

B,H..BJ4#,HJ45

HJ:W/VACUUM PUMP

 1
27371 - BRUSH, ALTERNATOR
27371-31011

B,H,2F..BJ4#,FJ4#,55,HJ45

12V 40 & 35A,24V 15 & 20A

 2
27371-31011

B,F,H,2F..BJ4#,FJ4#,55,HJ45

12V 40,35 & 50A,24V 15 & 20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

B,H,2F..BJ4#,FJ4#,55,HJ45

12V 40 & 35A ,24V 15 & 20A

 2
27372-31011

B,F,H,2F..BJ4#,FJ4#,55,HJ45

12V 40,35 & 50A,24V 15 & 20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-46031

B,H..BJ4#,HJ45

12V 35A

 1
27410-56010

B..BJ4#

24V 15A

 1
27410-56030

B..BJ4#

24V 20A

 1
27410-56010

B..BJ4#..ARL,GEN

24V 15A

 1
27410-46031

B..BJ4#..ARL,GEN

12V 35A

 1
27411 - PULLEY, ALTERNATOR
27411-56020

B..BJ4#

 1
27411-56010

B..BJ4#

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27412-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27441 - FAN, ALTERNATOR
27441-46031

B,H..BJ4#,HJ45

 1
27443 - COVER, ALTERNATOR BEARING
27039-56040

B..BJ4#

L/VACUUM PUMP

 1
27039-56040

B..BJ40..GEN

L/VACUUM PUMP

 1
Common parts
27383-31011
27387-31011
27445-56010
27446-56010
27446-56011
90092-20582
90099-00862
90099-00866
90099-00891
90099-00893
90099-01014
90099-01390
90099-05060
90101-10459
90119-08023
90201-10283
93219-14022
94110-41000
94511-00400
94511-01400
94512-01000
94521-00500

(7709-8007)B,H

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27311 27330 27330B 27350 27351 27353 27356 27357 27370 27371 27372 2737831011 2738331011 27410 27411 27411A 27441 2744556011 2744656011 9009220582 9009220582 9009900862 9009900891 9009900893 9009901014 9009901390 9009902181 9009905060 9010110459 9011908162 9020110283 9020110283 9331914025 9331915008 9331915008 9411041000 9451101400 9451201000 9452100500 9452100500
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56012

B..BJ4#

24V 15A,FOR VACUUM PUMP

 1
27020-56022

B..BJ4#

12V 35A,FOR VACUUM PUMP

 1
27020-56050

B..BJ4#

12V 35A

 1
27020-56040

B..BJ40..GEN

24V 15A

 1
27020-56050

B..BJ40..GEN

12V 35A

 1
27020-56023

B..BJ4#..ARL,GEN

12V 35A,FOR VACUUM PUMP

 1
27020-56031

B..BJ4#

24V 20A,FOR VACUUM PUMP

 1
27020-56013

B..BJ4#

24V 15A,FOR VACUUM PUMP

 1
27020-56040

B..BJ4#

24V 15A

 1
27020-56032

B..BJ4#

24V 20A,FOR VACUUM PUMP

 1
27020-56013

B..BJ4#..ARL,GEN

24V 15A,FOR VACUUM PUMP

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-56011

B..BJ4#

 1
27036-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-56011

B..BJ4#

 1
27312-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-56010

B..BJ4#

 1
27212-56010

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56011

B..BJ4#

 1
27311 - FRAME, ALTERNATOR DRIVE END
27311-56012

B..BJ4#

 1
27311-56012

B,H..BJ4#,HJ45

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56050

B..BJ4#

12V 35A,L/VACUUM PUMP

 1
27330-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27330-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27330-46031

B,H..BJ4#,HJ45

12V 35A,W/VACUUM PUMP

 1
27330-56030

B..BJ4#

24V 20A,W/VACUUM PUMP

 1
27330-56010

B..BJ4#..ARL,GEN

24V 15A,W/VACUUM PUMP

 1
27330-46031

B..BJ4#..ARL,GEN

12V 35A,W/VACUUM PUMP

 1
27330-56050

B..BJ40..GEN

12V 35A,L/VACUUM PUMP

 1
27330-56010

B..BJ4#

24V 15A,W/VACUUM PUMP

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

B..BJ4#

 1
90099-07103

B,H..BJ4#,HJ45

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56050

B..BJ4#

12V 35A,L/VACUUM PUMP

 1
27350-56011

B..BJ4#

W/VACUUM PUMP

 1
27350-56050

B..BJ40..GEN

12V 35A,L/VACUUM PUMP

 1
27350-56040

B..BJ4#

24V 15A,L/VACUUM PUMP

 1
27350-56040

B..BJ40..GEN

24V 15A,L/VACUUM PUMP

 1
27350-56013

B..BJ4#

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

B,H..BJ4#,HJ45

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-56011

B..BJ4#

 1
27353-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-56010

B..BJ4#

 1
27356-56010

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-56011

B..BJ4#

 1
27357-56011

B,H..BJ4#,HJ45

W/VACUUM PUMP

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56010

B..BJ4#

 1
27370-60080

B,H..BJ4#,HJ45

 1
27370-56010

B,H..BJ4#,HJ45

HJ:W/VACUUM PUMP

 1
27371 - BRUSH, ALTERNATOR
27371-31011

B,H,2F..BJ4#,FJ4#,55,HJ45

12V 40 & 35A,24V 15 & 20A

 2
27371-31011

B,F,H,2F..BJ4#,FJ4#,55,HJ45

12V 40,35 & 50A,24V 15 & 20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

B,H,2F..BJ4#,FJ4#,55,HJ45

12V 40 & 35A ,24V 15 & 20A

 2
27372-31011

B,F,H,2F..BJ4#,FJ4#,55,HJ45

12V 40,35 & 50A,24V 15 & 20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-46031

B,H..BJ4#,HJ45

12V 35A

 1
27410-56010

B..BJ4#

24V 15A

 1
27410-56030

B..BJ4#

24V 20A

 1
27410-56010

B..BJ4#..ARL,GEN

24V 15A

 1
27410-46031

B..BJ4#..ARL,GEN

12V 35A

 1
27411 - PULLEY, ALTERNATOR
27411-56020

B..BJ4#

 1
27411-56010

B..BJ4#

 1
27441 - FAN, ALTERNATOR
27441-46031

B,H..BJ4#,HJ45

 1
Common parts
27378-31011
27383-31011
27445-56011
27446-56011
90092-20582
90099-00862
90099-00891
90099-00893
90099-01014
90099-01390
90099-02181
90099-05060
90101-10459
90119-08162
90201-10283
93319-14025
93319-15008
94110-41000
94511-01400
94512-01000
94521-00500
