BJ40LV-K (1974)
Toyota Land Cruiser

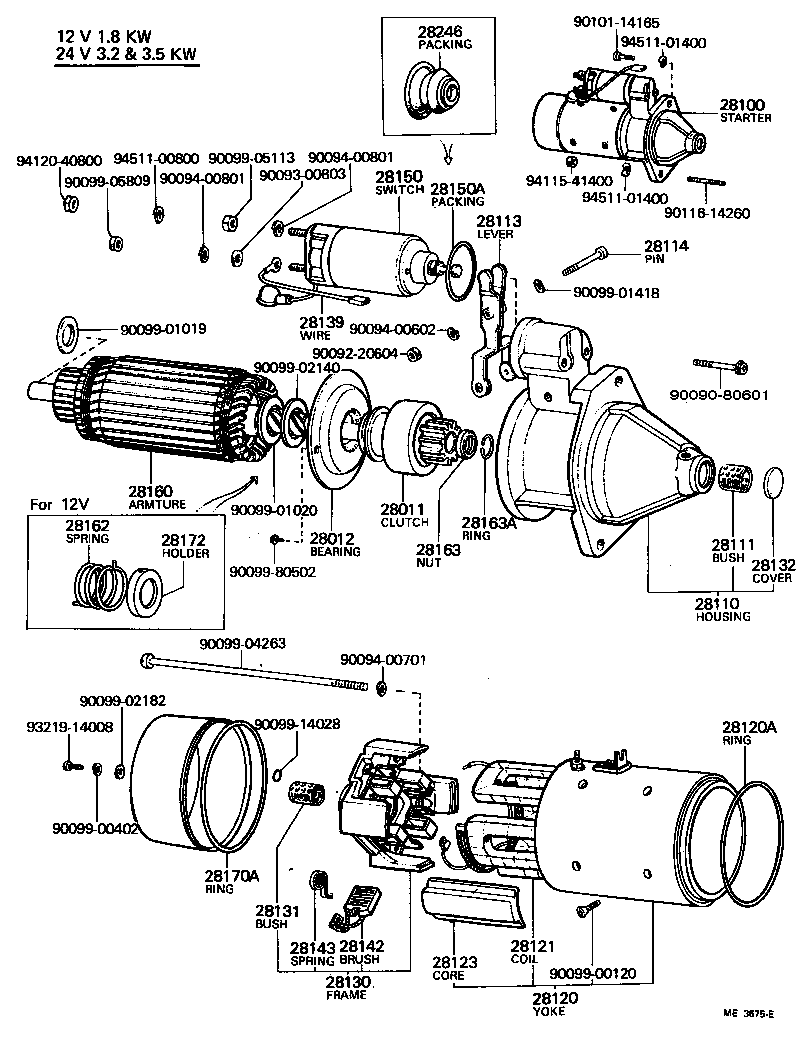

(7402-7709)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-56011 |
B..BJ4# |
1 | ||
| 28011-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28011-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28011-77090 |
B..BJ4# |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28012-56010 |
B..BJ4# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56010 |
B..BJ4# 24V 3.2KW |
1 | ||
| 28100-56021 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28100-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28100-56100 |
B..BJ4#..EUR,GEN 24V 4.5KW,REDUCTION.L/E.D.I.C. |
1 | ||
| 28100-56070 |
B..BJ4#..EUR,GEN 24V 4.5KW,REDUCTION.W/E.D.I.C. |
1 | ||
| 28100-56090 |
B..BJ4#..GEN 12V 2.5KW,REDUCTION.L/E.D.I.C. |
1 | ||
| 28100-56080 |
B..BJ4#..ARL,GEN 12V 2.5KW,REDUCTION.W/E.D.I.C. |
1 | ||
| 28100-56011 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28100-56100 |
B..BJ4#..GEN 24V 4.5KW,REDUCTION.L/E.D.I.C. |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-56010 |
B..BJ4# |
1 | ||
| 28110-56012 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28110-56011 |
B..BJ4# |
1 | ||
| 28110-56021 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28110-56080 |
B..BJ4# |
1 | ||
| 28110-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-46011 |
B..BJ4# |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-56011 |
B..BJ4# |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-46010 |
B..BJ4# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28120-56021 |
B..BJ4#..GEN 12V 1.8KW |
1 | ||
| 28120-56010 |
B..BJ4# |
1 | ||
| 28120-56011 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28120-77090 |
B..BJ4# 24V 4.5KW |
1 | ||
| 28120-47040 |
B..BJ4#..ARL,GEN 12V 2.5KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14027 |
B..BJ4# |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-56010 |
B..BJ4# 24V 3.2 & 3.5KW |
1 | ||
| 28121-46012 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-46011 |
B..BJ4# |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28130-56010 |
B..BJ4# 24V 3.2 & 3.5KW |
1 | ||
| 28130-56080 |
B..BJ4# |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28111-46011 |
B..BJ4# |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-21010 |
B..BJ4# |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
B,H..BJ4#,HJ45 NO.1 |
1 | ||
| 28139-46010 |
B..BJ4# |
1 | ||
| 28139-56050 |
B..BJ4#..GEN NO.2,L/E.D.I.C. |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-46020 |
B..BJ4# |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-46011 |
B..BJ4# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-56010 |
B..BJ4# |
1 | ||
| 28150-56011 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28150-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28150-56070 |
B..BJ4# 24V 4.5KW |
1 | ||
| 28150-56080 |
B..BJ4#..ARL,GEN 12V 2.5KW |
1 | ||
| 28150-56021 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28150A - PACKING(FOR STARTER MAGNET SWITCH) | ||||
| 90099-14029 |
B..BJ4# |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-56010 |
B..BJ4# 24V 3.2 & 3.5KW |
1 | ||
| 28160-47040 |
B..BJ4#..ARL,GEN 12V 2.5KW |
1 | ||
| 28160-46012 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28160-77090 |
B..BJ4# 24V 4.5KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-46011 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-46010 |
B..BJ4# |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07049 |
B..BJ4# |
1 | ||
| 28170A - RING, O(FOR STARTER COVER) | ||||
| 90099-14023 |
B..BJ4# |
1 | ||
| 28172 - HOLDER, STARTER SPRING | ||||
| 28172-46011 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28246 - COVER, MAGNET SWITCH | ||||
| 28246-56011 |
B..BJ4# |
1 | ||
| Common parts | ||||
| 90090-80601 | ||||
| 90092-20604 | ||||
| 90093-00803 | ||||
| 90094-00602 | ||||
| 90094-00701 | ||||
| 90094-00801 | ||||
| 90099-00120 | ||||
| 90099-00402 | ||||
| 90099-01019 | ||||
| 90099-01020 | ||||
| 90099-01418 | ||||
| 90099-02140 | ||||
| 90099-02182 | ||||
| 90099-04263 | ||||
| 90099-05113 | ||||
| 90099-05809 | ||||
| 90099-14028 | ||||
| 90099-80502 | ||||
| 90101-14165 | ||||
| 90116-14260 | ||||
| 93219-14008 | ||||
| 94115-41400 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
| 94511-01400 | ||||
(7709-8007)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-56011 |
B..BJ4# |
1 | ||
| 28011-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28011-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28011-77090 |
B..BJ4# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56010 |
B..BJ4# 24V 3.2KW |
1 | ||
| 28100-56021 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28100-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28100-56100 |
B..BJ4#..EUR,GEN 24V 4.5KW,REDUCTION.L/E.D.I.C. |
1 | ||
| 28100-56070 |
B..BJ4#..EUR,GEN 24V 4.5KW,REDUCTION.W/E.D.I.C. |
1 | ||
| 28100-56090 |
B..BJ4#..GEN 12V 2.5KW,REDUCTION.L/E.D.I.C. |
1 | ||
| 28100-56080 |
B..BJ4#..ARL,GEN 12V 2.5KW,REDUCTION.W/E.D.I.C. |
1 | ||
| 28100-56011 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28100-56100 |
B..BJ4#..GEN 24V 4.5KW,REDUCTION.L/E.D.I.C. |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-56010 |
B..BJ4# |
1 | ||
| 28110-56012 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28110-56011 |
B..BJ4# |
1 | ||
| 28110-56021 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28110-56080 |
B..BJ4# |
1 | ||
| 28110-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28120-56021 |
B..BJ4#..GEN 12V 1.8KW |
1 | ||
| 28120-56010 |
B..BJ4# |
1 | ||
| 28120-56011 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28120-77090 |
B..BJ4# 24V 4.5KW |
1 | ||
| 28120-47040 |
B..BJ4#..ARL,GEN 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28130-56010 |
B..BJ4# 24V 3.2 & 3.5KW |
1 | ||
| 28130-56080 |
B..BJ4# |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
B,H..BJ4#,HJ45 |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
B,H..BJ4#,HJ45 NO.1 |
1 | ||
| 28139-46010 |
B..BJ4# |
1 | ||
| 28139-56050 |
B..BJ4#..GEN NO.2,L/E.D.I.C. |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
B,H..BJ4#,HJ45 NO.1 |
1 | ||
| 28139-46010 |
B..BJ4# |
1 | ||
| 28139-56050 |
B..BJ4#..GEN NO.2,L/E.D.I.C. |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-56010 |
B..BJ4# |
1 | ||
| 28150-56011 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28150-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28150-56070 |
B..BJ4# 24V 4.5KW |
1 | ||
| 28150-56080 |
B..BJ4#..ARL,GEN 12V 2.5KW |
1 | ||
| 28150-56021 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-56010 |
B..BJ4# 24V 3.2 & 3.5KW |
1 | ||
| 28160-47040 |
B..BJ4#..ARL,GEN 12V 2.5KW |
1 | ||
| 28160-46012 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28160-77090 |
B..BJ4# 24V 4.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,H..BJ4#,HJ45 FRONT |
1 | ||
| 90099-10107 |
B,H..BJ4#,HJ45 REAR |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,H..BJ4#,HJ45 FRONT |
1 | ||
| 90099-10107 |
B,H..BJ4#,HJ45 REAR |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
B,H..BJ4#,HJ45 |
6 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
B,H..BJ4#,HJ45 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90116-14002 | ||||
| 91112-41465 | ||||
| 93319-15008 | ||||
| 94115-41400 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
(7709-8007)H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-56011 |
B..BJ4# |
1 | ||
| 28011-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28011-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28011-77090 |
B..BJ4# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56010 |
B..BJ4# 24V 3.2KW |
1 | ||
| 28100-56021 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28100-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28100-56100 |
B..BJ4#..EUR,GEN 24V 4.5KW,REDUCTION.L/E.D.I.C. |
1 | ||
| 28100-56070 |
B..BJ4#..EUR,GEN 24V 4.5KW,REDUCTION.W/E.D.I.C. |
1 | ||
| 28100-56090 |
B..BJ4#..GEN 12V 2.5KW,REDUCTION.L/E.D.I.C. |
1 | ||
| 28100-56080 |
B..BJ4#..ARL,GEN 12V 2.5KW,REDUCTION.W/E.D.I.C. |
1 | ||
| 28100-56011 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28100-56100 |
B..BJ4#..GEN 24V 4.5KW,REDUCTION.L/E.D.I.C. |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-56010 |
B..BJ4# |
1 | ||
| 28110-56012 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28110-56011 |
B..BJ4# |
1 | ||
| 28110-56021 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28110-56080 |
B..BJ4# |
1 | ||
| 28110-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28120-56021 |
B..BJ4#..GEN 12V 1.8KW |
1 | ||
| 28120-56010 |
B..BJ4# |
1 | ||
| 28120-56011 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28120-77090 |
B..BJ4# 24V 4.5KW |
1 | ||
| 28120-47040 |
B..BJ4#..ARL,GEN 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28130-56010 |
B..BJ4# 24V 3.2 & 3.5KW |
1 | ||
| 28130-56080 |
B..BJ4# |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
B,H..BJ4#,HJ45 |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
B,H..BJ4#,HJ45 NO.1 |
1 | ||
| 28139-46010 |
B..BJ4# |
1 | ||
| 28139-56050 |
B..BJ4#..GEN NO.2,L/E.D.I.C. |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
B,H..BJ4#,HJ45 NO.1 |
1 | ||
| 28139-46010 |
B..BJ4# |
1 | ||
| 28139-56050 |
B..BJ4#..GEN NO.2,L/E.D.I.C. |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-56010 |
B..BJ4# |
1 | ||
| 28150-56011 |
B..BJ4# 24V 3.5KW |
1 | ||
| 28150-56020 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28150-56070 |
B..BJ4# 24V 4.5KW |
1 | ||
| 28150-56080 |
B..BJ4#..ARL,GEN 12V 2.5KW |
1 | ||
| 28150-56021 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-56010 |
B..BJ4# 24V 3.2 & 3.5KW |
1 | ||
| 28160-47040 |
B..BJ4#..ARL,GEN 12V 2.5KW |
1 | ||
| 28160-46012 |
B..BJ4# 12V 1.8KW |
1 | ||
| 28160-77090 |
B..BJ4# 24V 4.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,H..BJ4#,HJ45 FRONT |
1 | ||
| 90099-10107 |
B,H..BJ4#,HJ45 REAR |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
B,H..BJ4#,HJ45 FRONT |
1 | ||
| 90099-10107 |
B,H..BJ4#,HJ45 REAR |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
B,H..BJ4#,HJ45 |
6 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
B,H..BJ4#,HJ45 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
B,H..BJ4#,HJ45 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 91619-61245 | ||||
| 92136-61240 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
