BJ40LV-K (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8110)B,3B

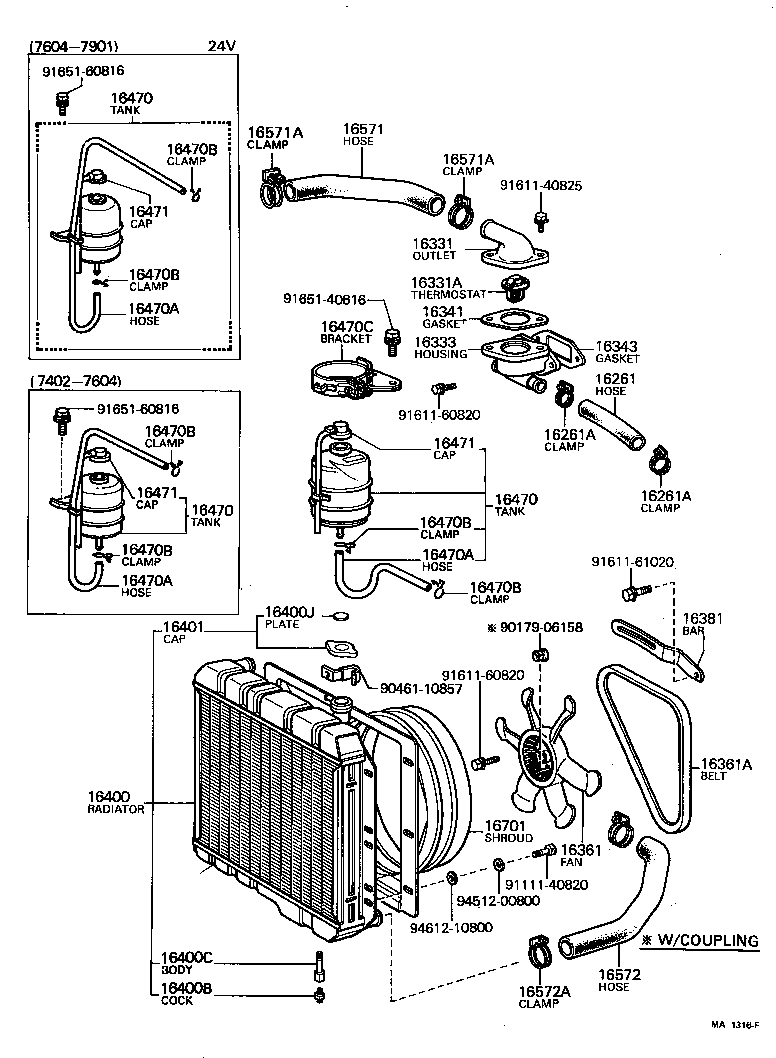

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361A 16365 16381 16400 16400B 16400C 16401 16470 16470A 16470B 16470B 16470C 16471 16472 16571 16571A 16571A 16572 16572 16572A 16572A 16572C 16572C 16577 16701 9011908162 9017906158 9046110857 9046315003 9046315067 9111140850 9161160822 9161160825 9161160825 9161161020 9165140816 9165160816 9165160816 9165161025 9451100800
Part # Description Qty Price
Common parts
90119-08162
90179-06158
90461-10857
90463-15003
90463-15067
91111-40850
91611-60822
91611-60825
91611-61020
91651-40816
91651-60816
91651-61025
94511-00800

(7402-7901)B

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361A 16381 16400 16400B 16400C 16400J 16401 16470 16470 16470 16470A 16470A 16470A 16470B 16470B 16470B 16470B 16470B 16470B 16470C 16471 16471 16471 16571 16571A 16571A 16572 16572A 16701 9017906158 9046110857 9111140820 9161140825 9161160820 9161160820 9161161020 9165140616 9165160816 9165160816 9451200800 9461210800
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-56011

B..BJ4#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

B..BJ4#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

B..BJ4#

 2
16331A - THERMOSTAT
90916-03032

B..BJ4#

WAX 82-95 NIHON THERMOSTAT

 1
90916-03039

B..BJ4#

*WAX 82-95,WAX 82-95 NIHON THERMOSTAT

 1
90916-03031

B..BJ4#

WAX 76.5-90 ONISHI SEIKI

 1
16333 - HOUSING, WATER OUTLET
16333-56012

B..BJ4#

 1
16333-56011

B..BJ4#

 1
16341 - GASKET, WATER OUTLET
16341-56010

B..BJ4#

 1
16341-51010

B..BJ4#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-56010

B..BJ4#

 1
16343-56011

B..BJ4#

 1
16361 - FAN
16361-41050

B..BJ4#

W/COUPLING,7 BLADES

 1
16361-56020

B..BJ4#

6 BLADES

 1
16361-56020

B..BJ4#..ARL,GEN

6 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99523-11176

B..BJ4#

L=1176

 1
99343-01175

B..BJ4#

L=1175

 1
99323-01175

B..BJ4#

L=1175

 1
16381 - BAR, FAN BELT ADJUSTING
16381-56010

B..BJ4#

 1
16381-56020

B..BJ4#

 1
16400 - RADIATOR ASSY
16400-59025

B..BJ4#..EUR,GEN

 1
16400-59045

B..BJ40..V..GEN

W/COOLER

 1
16400-59025

B..BJ4#

 1
16400C - BODY, RADIATOR DRAIN COCK
90910-09066

B..BJ4#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-41020

B..BJ4#

 1
16401-41021

B..BJ4#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-24010

B..BJ4#

 1
16470-56031

B..BJ4#

12V

 1
16470-56031

B..BJ4#

 1
16470-56041

B..BJ4#

24V

 1
16470-56030

B..BJ4#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-24010

B..BJ4#

 1
16470-56031

B..BJ4#

12V

 1
16470-56031

B..BJ4#

 1
16470-56041

B..BJ4#

24V

 1
16470-56030

B..BJ4#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-24010

B..BJ4#

 1
16470-56031

B..BJ4#

12V

 1
16470-56031

B..BJ4#

 1
16470-56041

B..BJ4#

24V

 1
16470-56030

B..BJ4#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12560

B..BJ4#

*H,L=840

 1
90445-12046

B..BJ4#

*H,L=760

 1
90445-12560

B..BJ4#

*H,L=840,24V

 1
90445-12046

B..BJ4#

*H,L=760,12V

 1
90445-12078

B..BJ4#..ARL,GEN

L=600,12V

 1
90445-12023

B..BJ4#..EUR,GEN

*H,L=380,24V

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12560

B..BJ4#

*H,L=840

 1
90445-12046

B..BJ4#

*H,L=760

 1
90445-12560

B..BJ4#

*H,L=840,24V

 1
90445-12046

B..BJ4#

*H,L=760,12V

 1
90445-12078

B..BJ4#..ARL,GEN

L=600,12V

 1
90445-12023

B..BJ4#..EUR,GEN

*H,L=380,24V

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12560

B..BJ4#

*H,L=840

 1
90445-12046

B..BJ4#

*H,L=760

 1
90445-12560

B..BJ4#

*H,L=840,24V

 1
90445-12046

B..BJ4#

*H,L=760,12V

 1
90445-12078

B..BJ4#..ARL,GEN

L=600,12V

 1
90445-12023

B..BJ4#..EUR,GEN

*H,L=380,24V

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-61010

B..BJ4#

12V

 1
16402-56010

B..BJ4#..EUR,GEN

24V

 1
16402-56040

B..BJ4#..ARL,GEN

12V

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-56030

B..BJ4#

 1
16471-56030

B..BJ4#

 1
16405-56020

B..BJ4#..ARL,GEN

12V

 1
16405-56010

B..BJ4#..EUR,GEN

24V

 1
16471-56030

B..BJ4#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-56030

B..BJ4#

 1
16471-56030

B..BJ4#

 1
16405-56020

B..BJ4#..ARL,GEN

12V

 1
16405-56010

B..BJ4#..EUR,GEN

24V

 1
16471-56030

B..BJ4#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-56030

B..BJ4#

 1
16471-56030

B..BJ4#

 1
16405-56020

B..BJ4#..ARL,GEN

12V

 1
16405-56010

B..BJ4#..EUR,GEN

24V

 1
16471-56030

B..BJ4#

 1
16571 - HOSE, RADIATOR, INLET
16571-56010

B..BJ4#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10500

B..BJ4#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10500

B..BJ4#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-56020

B..BJ4#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10500

B..BJ4#

ID=50(FJ=1)

 3
96111-10560

B..BJ4#

ID=56

 1
16701 - SHROUD SUB-ASSY, FAN
16701-56020

B..BJ4#

 1
16701-56021

B..BJ4#

 1
Common parts
90179-06158
90461-10857
91111-40820
91611-40825
91611-60820
91611-61020
91651-40616
91651-60816
94512-00800
94612-10800

(7901-8007)B

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361A 16365 16381 16400 16400B 16400C 16401 16470 16470A 16470B 16470B 16470C 16470C 16471 16571 16571A 16571A 16572 16572A 16701 9017906158 9046110857 9046315067 9111140820 9161140825 9161160820 9161160820 9161161020 9165140616 9165160816 9451200800 9461210800
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-56011

B..BJ4#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

B..BJ4#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

B..BJ4#

 2
16331A - THERMOSTAT
90916-03032

B..BJ4#

WAX 82-95 NIHON THERMOSTAT

 1
90916-03039

B..BJ4#

*WAX 82-95,WAX 82-95 NIHON THERMOSTAT

 1
90916-03031

B..BJ4#

WAX 76.5-90 ONISHI SEIKI

 1
16333 - HOUSING, WATER OUTLET
16333-56012

B..BJ4#

 1
16333-56011

B..BJ4#

 1
16341 - GASKET, WATER OUTLET
16341-56010

B..BJ4#

 1
16341-51010

B..BJ4#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-56010

B..BJ4#

 1
16343-56011

B..BJ4#

 1
16361 - FAN
16361-41050

B..BJ4#

W/COUPLING,7 BLADES

 1
16361-56020

B..BJ4#

6 BLADES

 1
16361-56020

B..BJ4#..ARL,GEN

6 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99523-11176

B..BJ4#

L=1176

 1
99343-01175

B..BJ4#

L=1175

 1
99323-01175

B..BJ4#

L=1175

 1
16381 - BAR, FAN BELT ADJUSTING
16381-56010

B..BJ4#

 1
16381-56020

B..BJ4#

 1
16400 - RADIATOR ASSY
16400-59025

B..BJ4#..EUR,GEN

 1
16400-59045

B..BJ40..V..GEN

W/COOLER

 1
16400-59025

B..BJ4#

 1
16400C - BODY, RADIATOR DRAIN COCK
90910-09066

B..BJ4#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-41020

B..BJ4#

 1
16401-41021

B..BJ4#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-24010

B..BJ4#

 1
16470-56031

B..BJ4#

12V

 1
16470-56031

B..BJ4#

 1
16470-56041

B..BJ4#

24V

 1
16470-56030

B..BJ4#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12560

B..BJ4#

*H,L=840

 1
90445-12046

B..BJ4#

*H,L=760

 1
90445-12560

B..BJ4#

*H,L=840,24V

 1
90445-12046

B..BJ4#

*H,L=760,12V

 1
90445-12078

B..BJ4#..ARL,GEN

L=600,12V

 1
90445-12023

B..BJ4#..EUR,GEN

*H,L=380,24V

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-61010

B..BJ4#

12V

 1
16402-56010

B..BJ4#..EUR,GEN

24V

 1
16402-56040

B..BJ4#..ARL,GEN

12V

 1
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-61010

B..BJ4#

12V

 1
16402-56010

B..BJ4#..EUR,GEN

24V

 1
16402-56040

B..BJ4#..ARL,GEN

12V

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-56030

B..BJ4#

 1
16471-56030

B..BJ4#

 1
16405-56020

B..BJ4#..ARL,GEN

12V

 1
16405-56010

B..BJ4#..EUR,GEN

24V

 1
16471-56030

B..BJ4#

 1
16571 - HOSE, RADIATOR, INLET
16571-56010

B..BJ4#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10500

B..BJ4#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10500

B..BJ4#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-56020

B..BJ4#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10500

B..BJ4#

ID=50(FJ=1)

 3
96111-10560

B..BJ4#

ID=56

 1
16701 - SHROUD SUB-ASSY, FAN
16701-56020

B..BJ4#

 1
16701-56021

B..BJ4#

 1
Common parts
90179-06158
90461-10857
90463-15067
91111-40820
91611-40825
91611-60820
91611-61020
91651-40616
91651-60816
94512-00800
94612-10800

(7901-8007)H

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361A 16381 16400 16400B 16400C 16401 16470 16470A 16470B 16470B 16470B 16470C 16471 16471 16571 16571A 16571A 16572 16572A 16572A 16701 8726860010 9111140820 9161160818 9161160822 9161161022 9161161028 9165160816 9418040600 9451200800 9461210800
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-56011

B..BJ4#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

B..BJ4#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

B..BJ4#

 2
16331A - THERMOSTAT
90916-03032

B..BJ4#

WAX 82-95 NIHON THERMOSTAT

 1
90916-03039

B..BJ4#

*WAX 82-95,WAX 82-95 NIHON THERMOSTAT

 1
90916-03031

B..BJ4#

WAX 76.5-90 ONISHI SEIKI

 1
16333 - HOUSING, WATER OUTLET
16333-56012

B..BJ4#

 1
16333-56011

B..BJ4#

 1
16341 - GASKET, WATER OUTLET
16341-56010

B..BJ4#

 1
16341-51010

B..BJ4#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-56010

B..BJ4#

 1
16343-56011

B..BJ4#

 1
16361 - FAN
16361-41050

B..BJ4#

W/COUPLING,7 BLADES

 1
16361-56020

B..BJ4#

6 BLADES

 1
16361-56020

B..BJ4#..ARL,GEN

6 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99523-11176

B..BJ4#

L=1176

 1
99343-01175

B..BJ4#

L=1175

 1
99323-01175

B..BJ4#

L=1175

 1
16381 - BAR, FAN BELT ADJUSTING
16381-56010

B..BJ4#

 1
16381-56020

B..BJ4#

 1
16400 - RADIATOR ASSY
16400-59025

B..BJ4#..EUR,GEN

 1
16400-59045

B..BJ40..V..GEN

W/COOLER

 1
16400-59025

B..BJ4#

 1
16400C - BODY, RADIATOR DRAIN COCK
90910-09066

B..BJ4#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-41020

B..BJ4#

 1
16401-41021

B..BJ4#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-24010

B..BJ4#

 1
16470-56031

B..BJ4#

12V

 1
16470-56031

B..BJ4#

 1
16470-56041

B..BJ4#

24V

 1
16470-56030

B..BJ4#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12560

B..BJ4#

*H,L=840

 1
90445-12046

B..BJ4#

*H,L=760

 1
90445-12560

B..BJ4#

*H,L=840,24V

 1
90445-12046

B..BJ4#

*H,L=760,12V

 1
90445-12078

B..BJ4#..ARL,GEN

L=600,12V

 1
90445-12023

B..BJ4#..EUR,GEN

*H,L=380,24V

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B..BJ4#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-61010

B..BJ4#

12V

 1
16402-56010

B..BJ4#..EUR,GEN

24V

 1
16402-56040

B..BJ4#..ARL,GEN

12V

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-56030

B..BJ4#

 1
16471-56030

B..BJ4#

 1
16405-56020

B..BJ4#..ARL,GEN

12V

 1
16405-56010

B..BJ4#..EUR,GEN

24V

 1
16471-56030

B..BJ4#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-56030

B..BJ4#

 1
16471-56030

B..BJ4#

 1
16405-56020

B..BJ4#..ARL,GEN

12V

 1
16405-56010

B..BJ4#..EUR,GEN

24V

 1
16471-56030

B..BJ4#

 1
16571 - HOSE, RADIATOR, INLET
16571-56010

B..BJ4#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10500

B..BJ4#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10500

B..BJ4#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-56020

B..BJ4#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10500

B..BJ4#

ID=50(FJ=1)

 3
96111-10560

B..BJ4#

ID=56

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10500

B..BJ4#

ID=50(FJ=1)

 3
96111-10560

B..BJ4#

ID=56

 1
16701 - SHROUD SUB-ASSY, FAN
16701-56020

B..BJ4#

 1
16701-56021

B..BJ4#

 1
Common parts
87268-60010
91111-40820
91611-60818
91611-60822
91611-61022
91611-61028
91651-60816
94180-40600
94512-00800
94612-10800
