BJ40L-KJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8007)BJ4#,HJ45

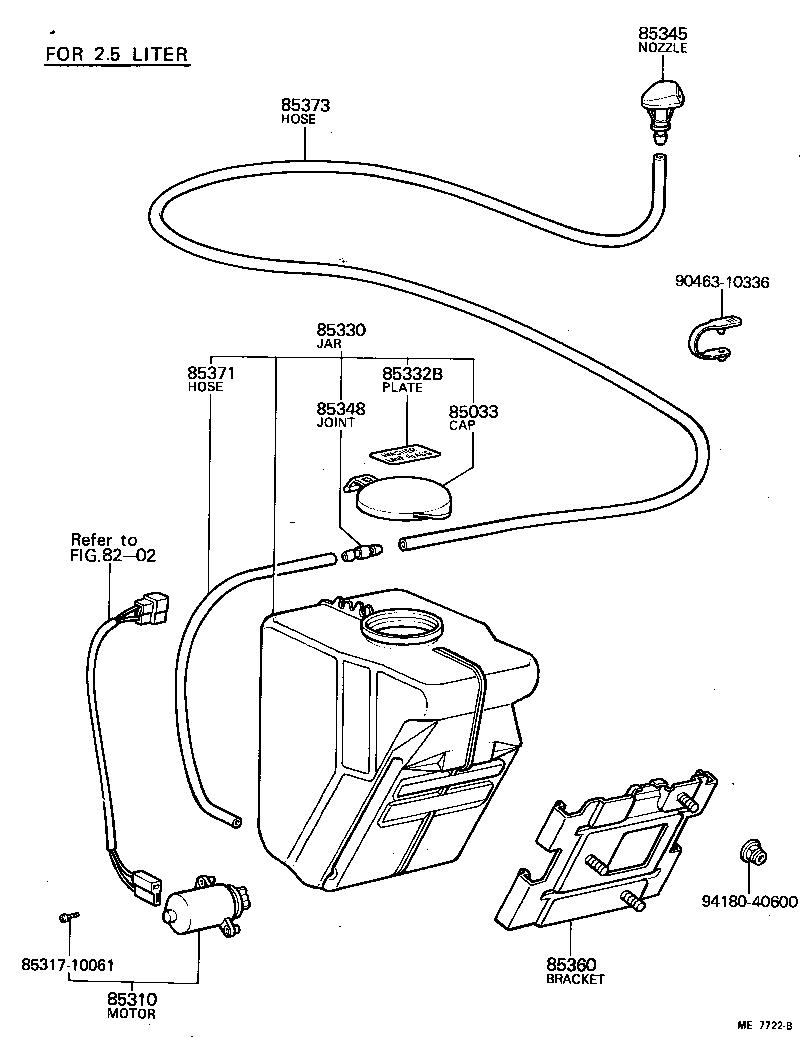

Click highlighted areas on diagram

diagram 8202 85033 85310 8531710061 85330 85332B 85345 85348 85360 85371 85373 9046310336 9418040600
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-10061

BJ4#

 1
85332-60010

BJ4#,FJ4#,55,HJ45

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-60010

BJ4#

FOR 12V

 1
85310-60020

BJ4#,HJ45

FOR 24V

 1
85310-10060

BJ4#,FJ4#,55,HJ45

FOR 12V

 1
85310-10060

BJ4#

FOR 12V

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-60051

BJ4#;HJ45..EUR

FOR 2.5LITER

 1
85330-10070

BJ4#

FOR 1.2LITER

 1
85332B - LABEL, WASHER
85332-60020

BJ4#;HJ45..EUR

FOR 2.5LITERS

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-60050

BJ4#,FJ4#,HJ45

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-10060

BJ4#

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-60060

BJ4#

FOR 2.5LITER

 1
85361-60023

BJ4#

FOR 1.2LITER

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06341

BJ4#

*H,L=280

 1
90446-06055

BJ4#

L=1300

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06205

BJ4#

L=1200

 1
Common parts
85317-10061
90463-10336
94180-40600
Linked diagrams
8202
