BJ40L-KJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

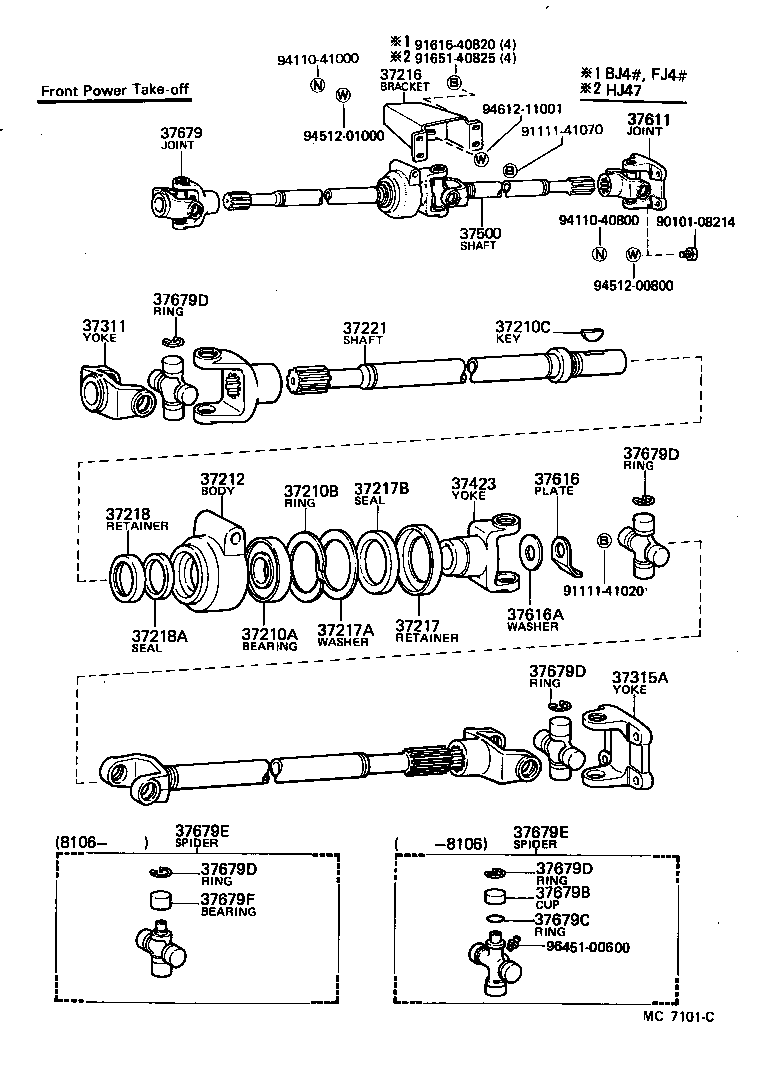

(8008-8210)4F

Click highlighted areas on diagram

diagram 37210A 37210B 37210C 37212 37216 37217 37217A 37217B 37218 37218A 37221 37311 37315A 37423 37500 37611 37616 37616A 37679 37679B 37679C 37679D 37679D 37679D 37679D 37679D 37679E 37679E 37679F 9010108214 9111141020 9111141070 9161640820 9165140825 9411040800 9411041000 9451200800 9451201000 9461211001 9645100600
Part # Description Qty Price
Common parts
90101-08214
91111-41020
91111-41070
91616-40820
91651-40825
94110-40800
94110-41000
94512-00800
94512-01000
94612-11001
96451-00600

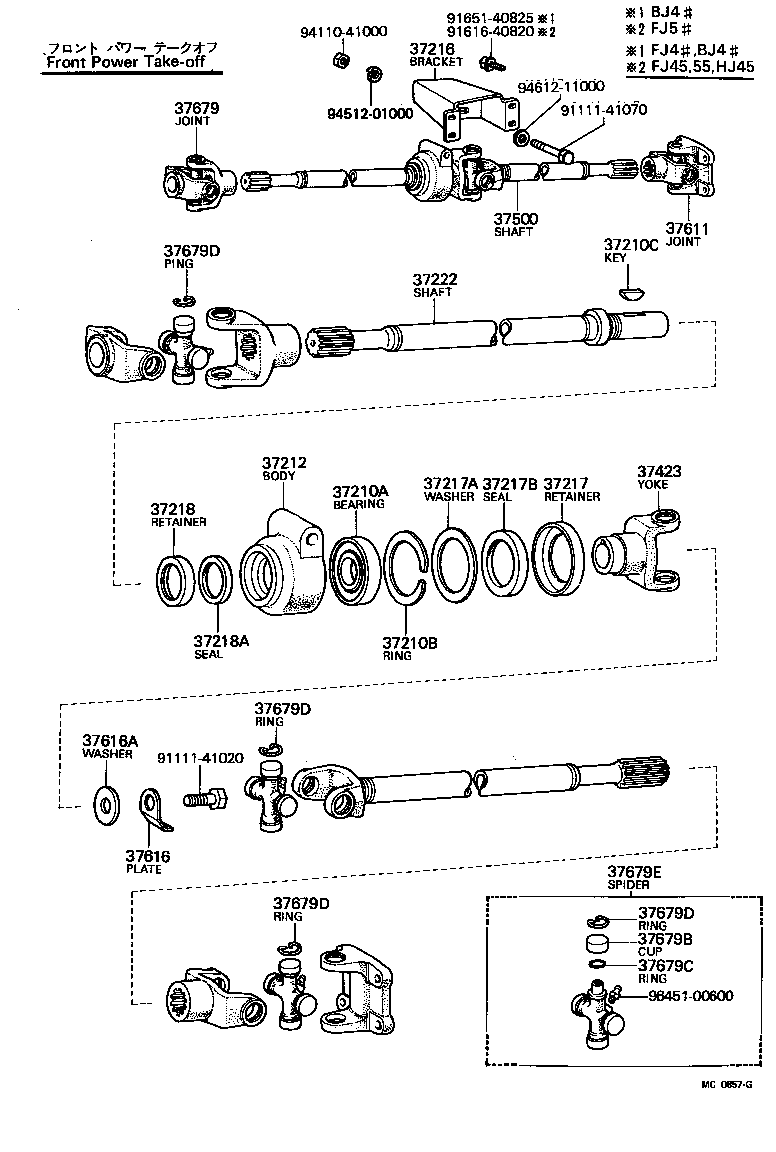

(6903-7901)BJ4#,FJ55,HJ45 ; (7808- )FJ55 ; (7901-8007)BJ4#,FJ4#,HJ45..4F

Click highlighted areas on diagram

diagram 37210A 37210B 37210C 37212 37216 37217 37217A 37217B 37218 37218A 37222 37423 37500 37611 37616 37616A 37679 37679B 37679C 37679D 37679D 37679D 37679D 37679E 9111141020 9111141070 9161640820 9165140825 9411041000 9451201000 9461211000 9645100600
Part # Description Qty Price
37210A - BEARING (FOR PILLOW BLOCK)
97143-06205

FJ4#..4F;BJ4#,FJ55,HJ45

 5
97143-06205

BJ4#,FJ40,43,45,55,HJ45

 5
37210B - RING, HOLE SNAP (FOR PILLOW BLOCK BEARING)
90521-55007

BJ4#,FJ40,43,45,55,HJ45

 5
90521-55007

FJ4#..4F;BJ4#,FJ55,HJ45

 5
37210C - KEY, WOODRUFF (FOR PILLOW BLOCK)
90280-05001

BJ4#,FJ40,43,45,55,HJ45

 5
90280-05001

FJ4#..4F;BJ4#,FJ55,HJ45

 5
37212 - BODY, PILLOW BLOCK, NO.2
37212-60020

FJ4#..4F;BJ4#,FJ55,HJ45

 1
37212-60020

BJ4#,FJ55,HJ45

 1
37216 - BRACKET, PILLOW BLOCK
37216-60030

BJ4#,FJ4#,HJ45..4F

 1
37217 - RETAINER, DUST SEAL, NO.1
37217-60010

FJ4#..4F;BJ4#,FJ55,HJ45

 5
37217-60010

BJ4#,FJ40,43,45,55,HJ45

 5
37217A - WASHER, PLATE (FOR PILLOW BLOCK RETAINER)
90201-37068

BJ4#,FJ40,43,45,55,HJ45

 5
90201-37068

FJ4#..4F;BJ4#,FJ55,HJ45

 5
37217B - SEAL, DUST (FOR PILLOW BLOCK RETAINER)
90303-37008

BJ4#,FJ40,43,45,55,HJ45

 5
90303-37008

FJ4#..4F;BJ4#,FJ55,HJ45

 5
37218 - RETAINER, DUST SEAL, NO.2
37218-60020

BJ4#,FJ55,HJ45

 1
37218-60020

FJ4#..4F;BJ4#,FJ55,HJ45

 1
37218A - SEAL, DUST (FOR NO.2 PILLOW BLOCK RETAINER)
90303-30025

FJ4#..4F;BJ4#,FJ55,HJ45

 1
90303-30025

BJ4#,FJ55,HJ45

 1
37222 - SHAFT, PILLOW BLOCK, NO.2
37601-60060

BJ4#,FJ4#,HJ45..4F

 1
37423 - YOKE, UNIVERSAL JOINT FLANGE(FOR POWER TAKE-OFF DRIVE S
37313-60050

BJ4#,FJ55,HJ45

 1
37313-60050

FJ4#..4F;BJ4#,FJ55,HJ45

 1
37611 - JOINT ASSY, UNIVERSAL, W/YOKE (FOR WINCH)
37410-60010

FJ4#..4F;BJ4#,FJ55,HJ45

 3
37410-60010

BJ4#,FJ40,43,45,55,HJ45

 3
37616 - PLATE, DRIVE SHAFT LOCK
37616-60010

FJ4#..4F;BJ4#,FJ55,HJ45

 1
37616-60010

BJ4#,FJ55,HJ45

 1
37616A - WASHER (FOR DRIVE SHAFT LOCK PLATE)
90201-12169

BJ4#,FJ55,HJ45

 1
90201-12169

FJ4#..4F;BJ4#,FJ55,HJ45

 1
37679 - JOINT ASSY, UNIVERSAL (FOR WINCH DRIVE SHAFT)
37420-60020

BJ4#,FJ55,HJ45

 1
37420-60020

FJ4#..4F;BJ4#,FJ55,HJ45

 1
37679B - CUP, UNIVERSAL JOINT (FOR WINCH DRIVE SHAFT)
37431-60010

FJ4#..4F;BJ4#,FJ55,HJ45

 28
37431-60010

BJ4#,FJ40,43,45,55,HJ45

 28
37679C - RING, O (FOR WINCH DRIVE SHAFT)
96710-02010

FJ4#..4F;BJ4#,FJ55,HJ45

 28
37679D - RING, HOLE SNAP (FOR WINCH DRIVE SHAFT)
90521-22014

FJ4#..4F;BJ4#,FJ55,HJ45

 28
90521-22014

BJ4#,FJ40,43,45,55,HJ45

 28
37679D - RING, HOLE SNAP (FOR WINCH DRIVE SHAFT)
90521-22014

FJ4#..4F;BJ4#,FJ55,HJ45

 28
90521-22014

BJ4#,FJ40,43,45,55,HJ45

 28
37679D - RING, HOLE SNAP (FOR WINCH DRIVE SHAFT)
90521-22014

FJ4#..4F;BJ4#,FJ55,HJ45

 28
90521-22014

BJ4#,FJ40,43,45,55,HJ45

 28
37679D - RING, HOLE SNAP (FOR WINCH DRIVE SHAFT)
90521-22014

FJ4#..4F;BJ4#,FJ55,HJ45

 28
90521-22014

BJ4#,FJ40,43,45,55,HJ45

 28
37679E - SPIDER (FOR WINCH DRIVE SHAFT)
04371-60020

FJ4#..4F;BJ4#,FJ55,HJ45

 7
04371-60020

BJ4#,FJ40,43,45,55,HJ45

 7
Common parts
91111-41020
91111-41070
91616-40820
91651-40825
94110-41000
94512-01000
94612-11000
96451-00600
