BJ40L-KCJW (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17705 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883A 17883A 9165140616 9165140616 9165140818
Part # Description Qty Price
Common parts
91651-40616
91651-40818

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17705 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883A 17883A 9165140616 9165140616 9165140818
Part # Description Qty Price
Common parts
91651-40616
91651-40818

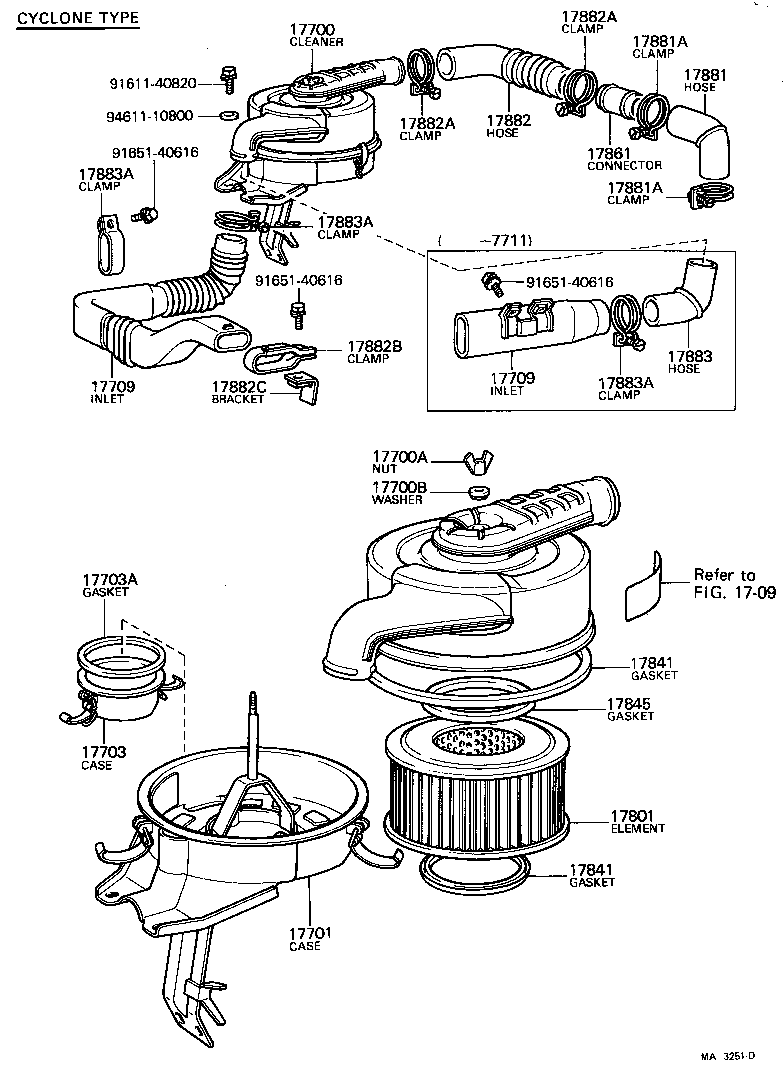

(8008-8410)B,3B..EUR,GEN

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17701 17703 17703A 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883A 17883A 9165140616 9165140616 9165140818
Part # Description Qty Price
Common parts
91651-40616
91651-40818

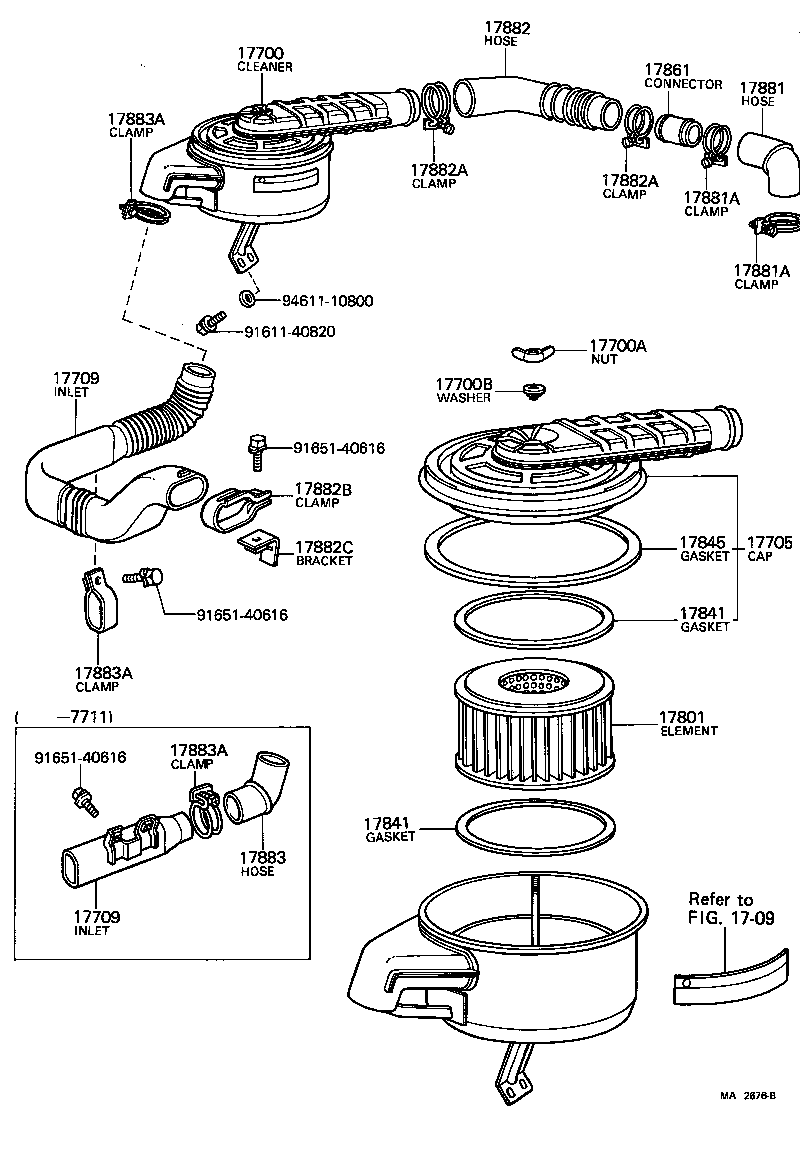

(7609-8007)B

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700B 17705 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883 17883A 17883A 17883A 9161140820 9165140616 9165140616 9165140616 9461110800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-56061

B..BJ4#

 1
17700-56071

B..BJ4#

OIL BATH

 1
17700-56062

B..BJ4#

 1
17700-56220

B..BJ4#

CYCLONE

 1
17700-56221

B..BJ4#

CYCLONE

 1
17700-56072

B..BJ4#

OIL BATH

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

B..BJ4#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003

B..BJ4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-47021

B..BJ4#

OIL BATH

 1
17705-56071

B..BJ4#

PAPER ELEMENT

 1
17709 - INLET SUB-ASSY, AIR CLEANER
17709-90300

B..BJ4#

 1
17709-90301

B..BJ4#

 1
17709 - INLET SUB-ASSY, AIR CLEANER
17709-90300

B..BJ4#

 1
17709-90301

B..BJ4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-66020

B..BJ4#

PAPER ELEMENT

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17845 - GASKET, AIR CLEANER CAP
17845-60040

B..BJ4#

 1
17845-56040

B..BJ4#

 1
17845-60040

B..BJ4#

 1
17845-56040

B..BJ4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

B..BJ4#

ID=67

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

B..BJ4#

ID=67

 1
17882B - CLAMP(FOR COOL AIR INTAKE)
17782-90300

B..BJ4#

 1
17882C - BRACKET(FOR COOL AIR INTAKE)
17781-90300

B..BJ4#

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-56050

B..BJ4#

CYCLONE

 1
17883-56020

B..BJ4#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17783-90300

B..BJ4#

INLET SIDE

 1
96111-10750

B..BJ4#

ID=75

 2
96111-10690

B..BJ4#

AIR CLEANER SIDE

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17783-90300

B..BJ4#

INLET SIDE

 1
96111-10750

B..BJ4#

ID=75

 2
96111-10690

B..BJ4#

AIR CLEANER SIDE

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17783-90300

B..BJ4#

INLET SIDE

 1
96111-10750

B..BJ4#

ID=75

 2
96111-10690

B..BJ4#

AIR CLEANER SIDE

 2
Common parts
91611-40820
91651-40616
94611-10800
Linked diagrams
1709

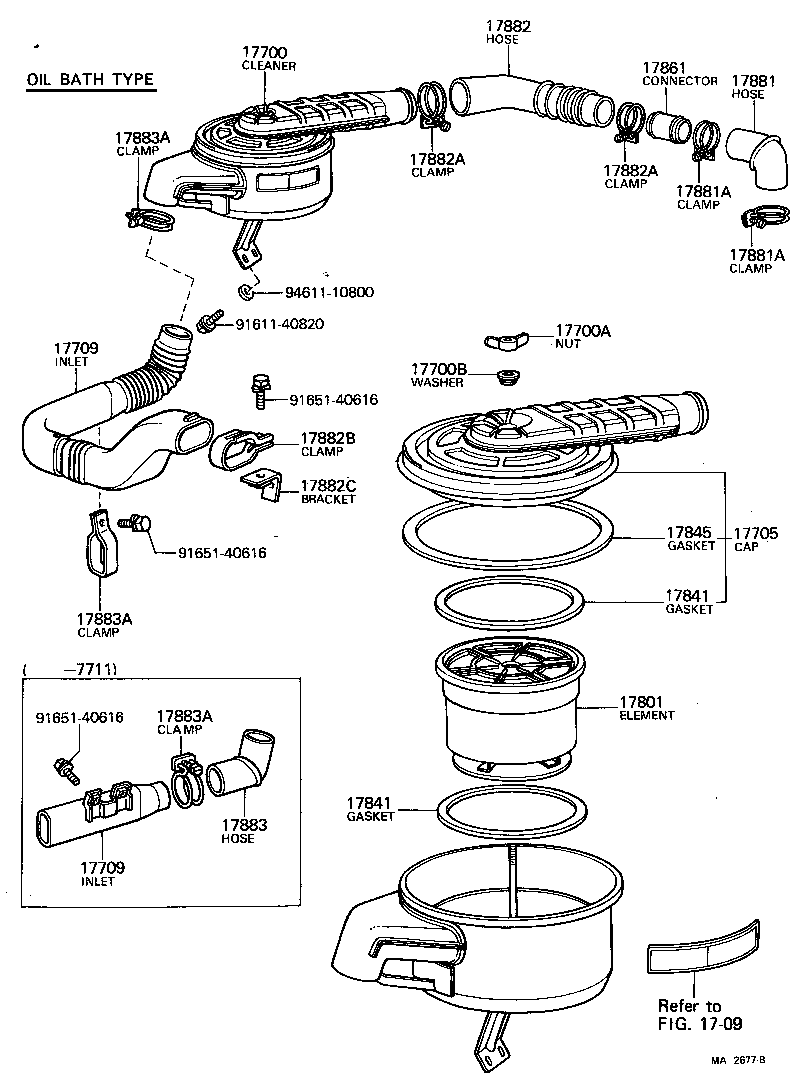

(7609-8007)B

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700B 17705 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883 17883A 17883A 17883A 9161140820 9165140616 9165140616 9165140616 9461110800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-56061

B..BJ4#

 1
17700-56071

B..BJ4#

OIL BATH

 1
17700-56062

B..BJ4#

 1
17700-56220

B..BJ4#

CYCLONE

 1
17700-56221

B..BJ4#

CYCLONE

 1
17700-56072

B..BJ4#

OIL BATH

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

B..BJ4#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003

B..BJ4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-47021

B..BJ4#

OIL BATH

 1
17705-56071

B..BJ4#

PAPER ELEMENT

 1
17709 - INLET SUB-ASSY, AIR CLEANER
17709-90300

B..BJ4#

 1
17709-90301

B..BJ4#

 1
17709 - INLET SUB-ASSY, AIR CLEANER
17709-90300

B..BJ4#

 1
17709-90301

B..BJ4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-66020

B..BJ4#

PAPER ELEMENT

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17845 - GASKET, AIR CLEANER CAP
17845-60040

B..BJ4#

 1
17845-56040

B..BJ4#

 1
17845-60040

B..BJ4#

 1
17845-56040

B..BJ4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

B..BJ4#

ID=67

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

B..BJ4#

ID=67

 1
17882B - CLAMP(FOR COOL AIR INTAKE)
17782-90300

B..BJ4#

 1
17882C - BRACKET(FOR COOL AIR INTAKE)
17781-90300

B..BJ4#

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-56050

B..BJ4#

CYCLONE

 1
17883-56020

B..BJ4#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17783-90300

B..BJ4#

INLET SIDE

 1
96111-10750

B..BJ4#

ID=75

 2
96111-10690

B..BJ4#

AIR CLEANER SIDE

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17783-90300

B..BJ4#

INLET SIDE

 1
96111-10750

B..BJ4#

ID=75

 2
96111-10690

B..BJ4#

AIR CLEANER SIDE

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17783-90300

B..BJ4#

INLET SIDE

 1
96111-10750

B..BJ4#

ID=75

 2
96111-10690

B..BJ4#

AIR CLEANER SIDE

 2
Common parts
91611-40820
91651-40616
94611-10800
Linked diagrams
1709

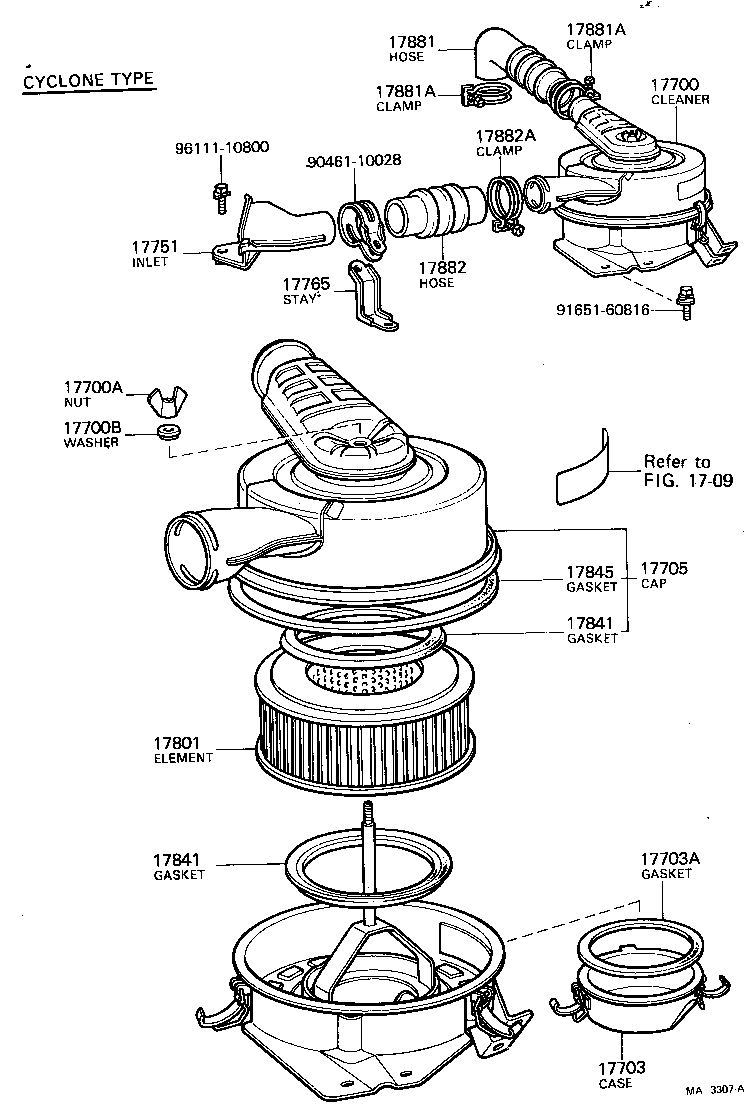

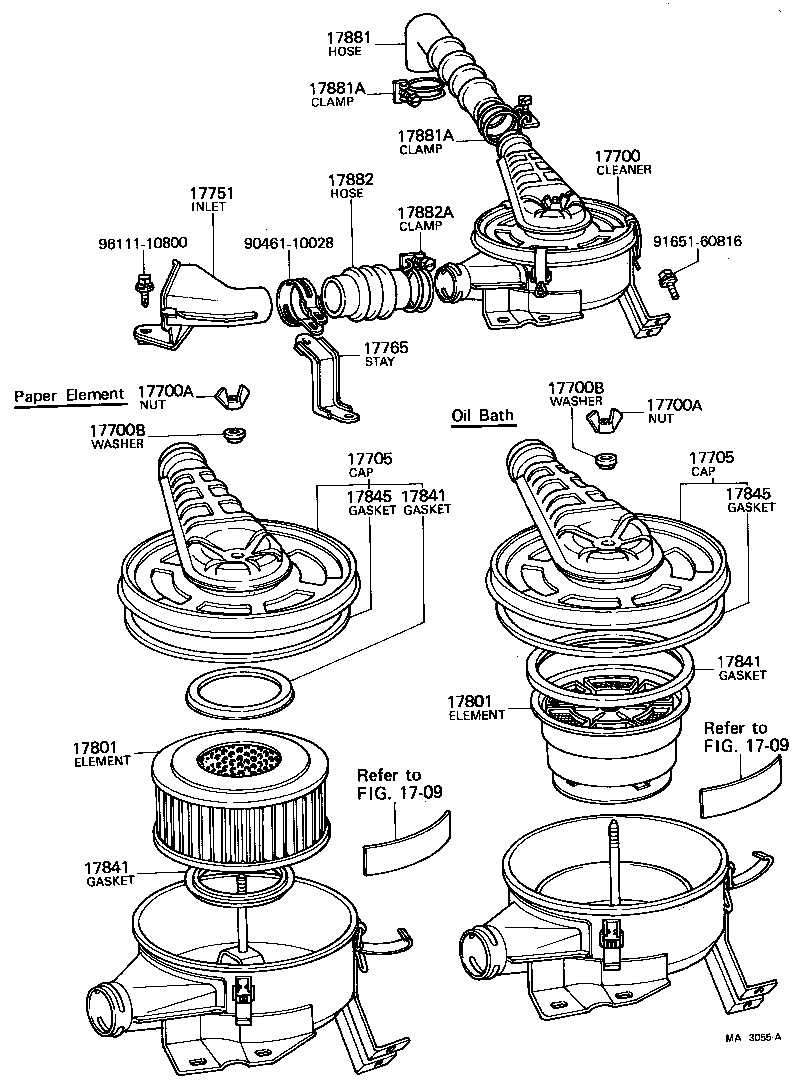

(7709-8007)H

Click highlighted areas on diagram

diagram 1709 1709 17700 17700A 17700A 17700B 17700B 17705 17705 17751 17765 17801 17801 17841 17841 17841 17845 17845 17881 17881A 17881A 17882 17882A 9046110028 9165160816 9611110800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-56061

B..BJ4#

 1
17700-56071

B..BJ4#

OIL BATH

 1
17700-56062

B..BJ4#

 1
17700-56220

B..BJ4#

CYCLONE

 1
17700-56221

B..BJ4#

CYCLONE

 1
17700-56072

B..BJ4#

OIL BATH

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

B..BJ4#

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

B..BJ4#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003

B..BJ4#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003

B..BJ4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-47021

B..BJ4#

OIL BATH

 1
17705-56071

B..BJ4#

PAPER ELEMENT

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-47021

B..BJ4#

OIL BATH

 1
17705-56071

B..BJ4#

PAPER ELEMENT

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-66020

B..BJ4#

PAPER ELEMENT

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-66020

B..BJ4#

PAPER ELEMENT

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17845 - GASKET, AIR CLEANER CAP
17845-56040

B..BJ4#

 1
17845-60040

B..BJ4#

 1
17845-56040

B..BJ4#

 1
17845-60040

B..BJ4#

 1
17845 - GASKET, AIR CLEANER CAP
17845-56040

B..BJ4#

 1
17845-60040

B..BJ4#

 1
17845-56040

B..BJ4#

 1
17845-60040

B..BJ4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

B..BJ4#

ID=67

 1
Common parts
90461-10028
91651-60816
96111-10800
Linked diagrams
1709

(7709-8007)B

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700B 17701 17703 17703A 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883 17883A 17883A 17883A 9161140820 9165140616 9165140616 9165140616 9461110800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-56061

B..BJ4#

 1
17700-56071

B..BJ4#

OIL BATH

 1
17700-56062

B..BJ4#

 1
17700-56220

B..BJ4#

CYCLONE

 1
17700-56221

B..BJ4#

CYCLONE

 1
17700-56072

B..BJ4#

OIL BATH

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

B..BJ4#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003

B..BJ4#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-56110

B..BJ4#

CYCLONE

 1
17703 - CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
17703-77020

B..BJ4#

CYCLONE

 1
17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
90430-98001

B..BJ4#

CYCLONE

 1
17709 - INLET SUB-ASSY, AIR CLEANER
17709-90300

B..BJ4#

 1
17709-90301

B..BJ4#

 1
17709 - INLET SUB-ASSY, AIR CLEANER
17709-90300

B..BJ4#

 1
17709-90301

B..BJ4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-66020

B..BJ4#

PAPER ELEMENT

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17845 - GASKET, AIR CLEANER CAP
17845-60040

B..BJ4#

 1
17845-56040

B..BJ4#

 1
17845-60040

B..BJ4#

 1
17845-56040

B..BJ4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

B..BJ4#

ID=67

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

B..BJ4#

ID=67

 1
17882B - CLAMP(FOR COOL AIR INTAKE)
17782-90300

B..BJ4#

 1
17882C - BRACKET(FOR COOL AIR INTAKE)
17781-90300

B..BJ4#

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-56050

B..BJ4#

CYCLONE

 1
17883-56020

B..BJ4#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17783-90300

B..BJ4#

INLET SIDE

 1
96111-10750

B..BJ4#

ID=75

 2
96111-10690

B..BJ4#

AIR CLEANER SIDE

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17783-90300

B..BJ4#

INLET SIDE

 1
96111-10750

B..BJ4#

ID=75

 2
96111-10690

B..BJ4#

AIR CLEANER SIDE

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17783-90300

B..BJ4#

INLET SIDE

 1
96111-10750

B..BJ4#

ID=75

 2
96111-10690

B..BJ4#

AIR CLEANER SIDE

 2
Common parts
91611-40820
91651-40616
94611-10800
Linked diagrams
1709

(7709-8007)H

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700B 17703 17703A 17705 17751 17765 17801 17841 17841 17845 17881 17881A 17881A 17882 17882A 9046110028 9165160816 9611110800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-56061

B..BJ4#

 1
17700-56071

B..BJ4#

OIL BATH

 1
17700-56062

B..BJ4#

 1
17700-56220

B..BJ4#

CYCLONE

 1
17700-56221

B..BJ4#

CYCLONE

 1
17700-56072

B..BJ4#

OIL BATH

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

B..BJ4#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003

B..BJ4#

 1
17703 - CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
17703-77020

B..BJ4#

CYCLONE

 1
17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
90430-98001

B..BJ4#

CYCLONE

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-47021

B..BJ4#

OIL BATH

 1
17705-56071

B..BJ4#

PAPER ELEMENT

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-66020

B..BJ4#

PAPER ELEMENT

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17841 - GASKET, FILTER ELEMENT
17841-24020

B..BJ4#

 1
90430-10164

B..BJ4#

OIL BATH,LWR

 1
17841-56020

B..BJ4#

OIL BATH UPPER

 1
17845 - GASKET, AIR CLEANER CAP
17845-56040

B..BJ4#

 1
17845-60040

B..BJ4#

 1
17845-56040

B..BJ4#

 1
17845-60040

B..BJ4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B..BJ4#

ID=67

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

B..BJ4#

ID=67

 1
Common parts
90461-10028
91651-60816
96111-10800
Linked diagrams
1709
