BJ40L-KCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7501-7608)2F ; (7608-7804)2F..ARL,GEN ; (7608-7804)2F..FJ45..EUR..IV ; (7804-8007)

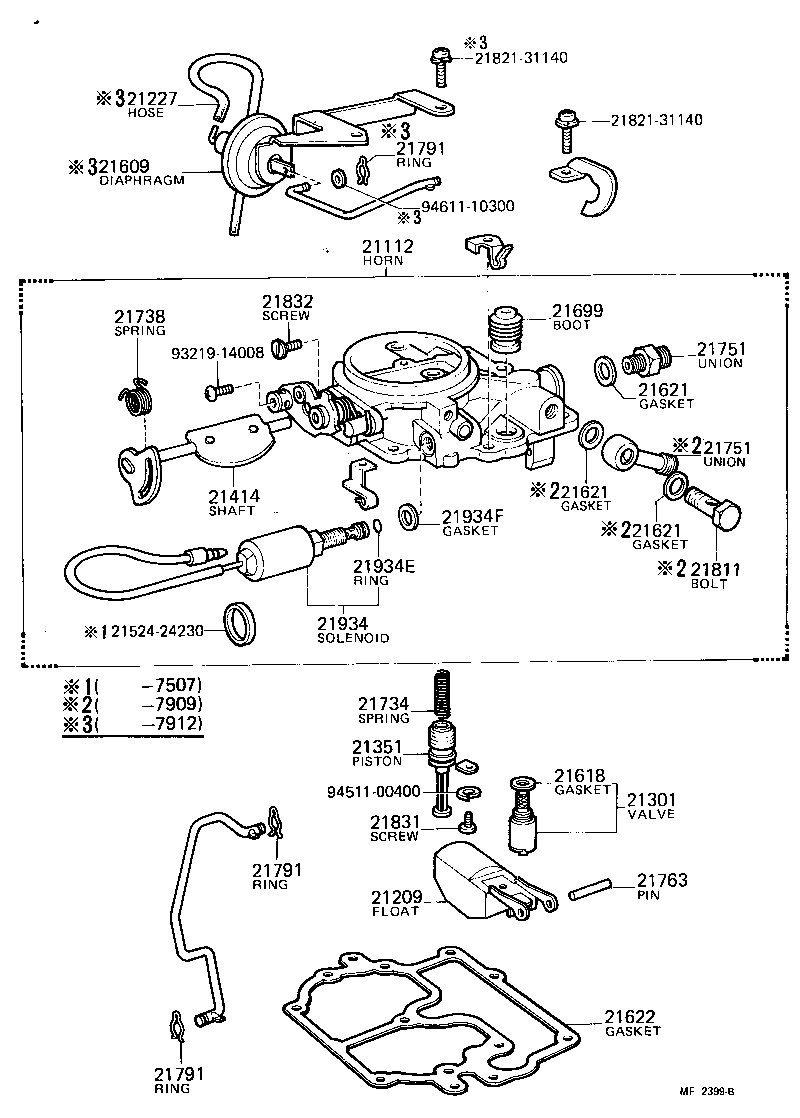

Click highlighted areas on diagram

diagram 21112 21209 21227 21301 21351 21414 2152424230 21609 21618 21621 21621 21621 21622 21699 21734 21738 21751 21751 21763 21791 21791 21791 21811 2182131140 2182131140 21831 21832 21934 21934E 21934F 9321914008 9451100400 9461110300
Part # Description Qty Price
Common parts
21524-24230
21821-31140
93219-14008
94511-00400
94611-10300
