Toyota Land cruiser BJ40 ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

BJ40L-KC (1974)

Toyota Land Cruiser

Production Feb 1974 - Jul 1980

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

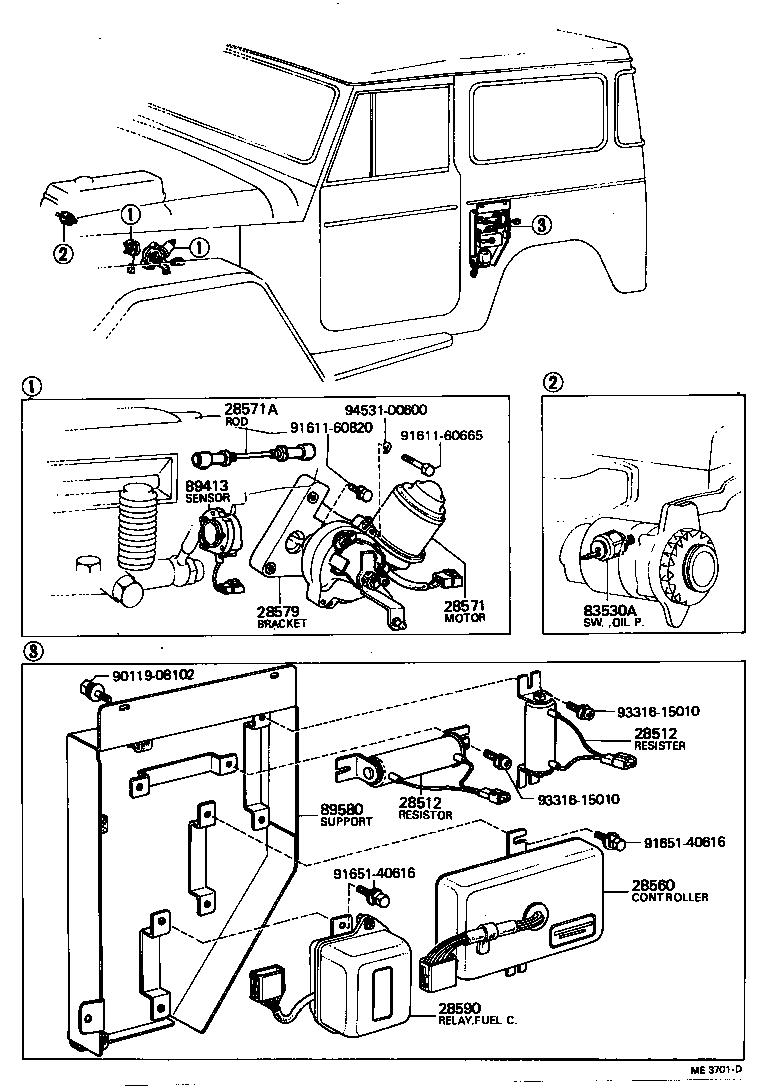

Click highlighted areas on diagram

Part #	Description	Period	Qty
28512 - RESISTOR, MOTOR CONTROL
28512-56011	B..BJ4# 6 OHM	02/1974 - 09/1977	1
28512-56021	B..BJ4# 3 OHM	02/1974 - 09/1977	1
28560 - CONTROLLER ASSY, FUEL
28560-56011	B..BJ4#	02/1974 - 09/1977	1
28571 - MOTOR, FUEL CONTROL
28571-56010	B..BJ4#	02/1974 - 07/1974	1
28571-56030	B..BJ4#..ARL,GEN FOR 12V	09/1977 - 07/1980	1
28571-56050	B..BJ4# FOR 24V	09/1977 - 07/1980	1
28571-56011	B..BJ4#	07/1974 - 12/1976	1
28571-56012	B..BJ4#	12/1976 - 09/1977	1
28571A - ROD, FUEL CONTROL MOTOR
26380-56010	B..BJ4#	02/1974 - 09/1977	1
84580-36021	B..BJ4#	09/1977 - 07/1980	1
28579 - BRACKET, FUEL CONTROL MOTOR
28579-56010	B..BJ4#	02/1974 - 09/1977	1
28579-56030	B..BJ4#	09/1977 - 07/1980	1
28590 - RELAY ASSY, FUEL CONTROL
28590-56060	B,H..BJ4#,HJ45 FOR 12V	09/1977 - 07/1980	1
28590-56070	B,H..BJ4#,HJ45 FOR 24V	01/1979 - 07/1980	1
28590-56011	B..BJ4#	02/1974 - 09/1977	1
28590-56070	B..BJ4# FOR 24V	09/1977 - 01/1979	1
83530A - SWITCH ASSY, OIL PRESSURE
83530-36011	BJ4#	02/1974 - 09/1977	1
83530-14010	BJ4#,HJ45	09/1977 - 07/1980	1
89413 - SENSOR, ENGINE SPEED
89413-60011	BJ4#	02/1974 - 09/1977	1
89580 - SUPPORT ASSY, FUEL CONTROL
89580-90300	BJ4#	02/1974 - 09/1977	1
Common parts
90119-08102
91611-60665
91611-60820
91651-40616
93316-15010
94531-00600

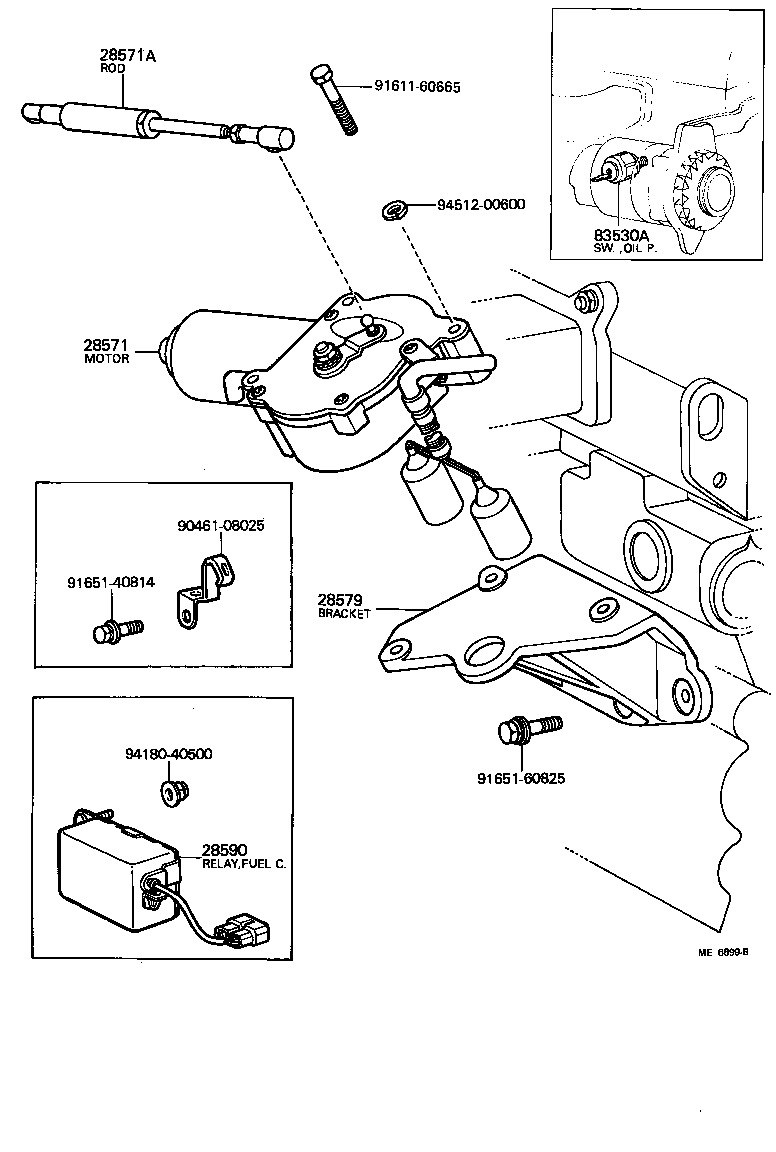

Click highlighted areas on diagram

Part #	Description	Period	Qty
28571 - MOTOR, FUEL CONTROL
28571-56010	B..BJ4#	02/1974 - 07/1974	1
28571-56030	B..BJ4#..ARL,GEN FOR 12V	09/1977 - 07/1980	1
28571-56050	B..BJ4# FOR 24V	09/1977 - 07/1980	1
28571-56011	B..BJ4#	07/1974 - 12/1976	1
28571-56012	B..BJ4#	12/1976 - 09/1977	1
28571A - ROD, FUEL CONTROL MOTOR
26380-56010	B..BJ4#	02/1974 - 09/1977	1
84580-36021	B..BJ4#	09/1977 - 07/1980	1
28579 - BRACKET, FUEL CONTROL MOTOR
28579-56010	B..BJ4#	02/1974 - 09/1977	1
28579-56030	B..BJ4#	09/1977 - 07/1980	1
28590 - RELAY ASSY, FUEL CONTROL
28590-56060	B,H..BJ4#,HJ45 FOR 12V	09/1977 - 07/1980	1
28590-56070	B,H..BJ4#,HJ45 FOR 24V	01/1979 - 07/1980	1
28590-56011	B..BJ4#	02/1974 - 09/1977	1
28590-56070	B..BJ4# FOR 24V	09/1977 - 01/1979	1
83530A - SWITCH ASSY, OIL PRESSURE
83530-36011	BJ4#	02/1974 - 09/1977	1
83530-14010	BJ4#,HJ45	09/1977 - 07/1980	1
Common parts
90461-08025
91611-60665
91651-40814
91651-60825
94180-40500
94512-00600
