NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )NGJ10,NUJ10

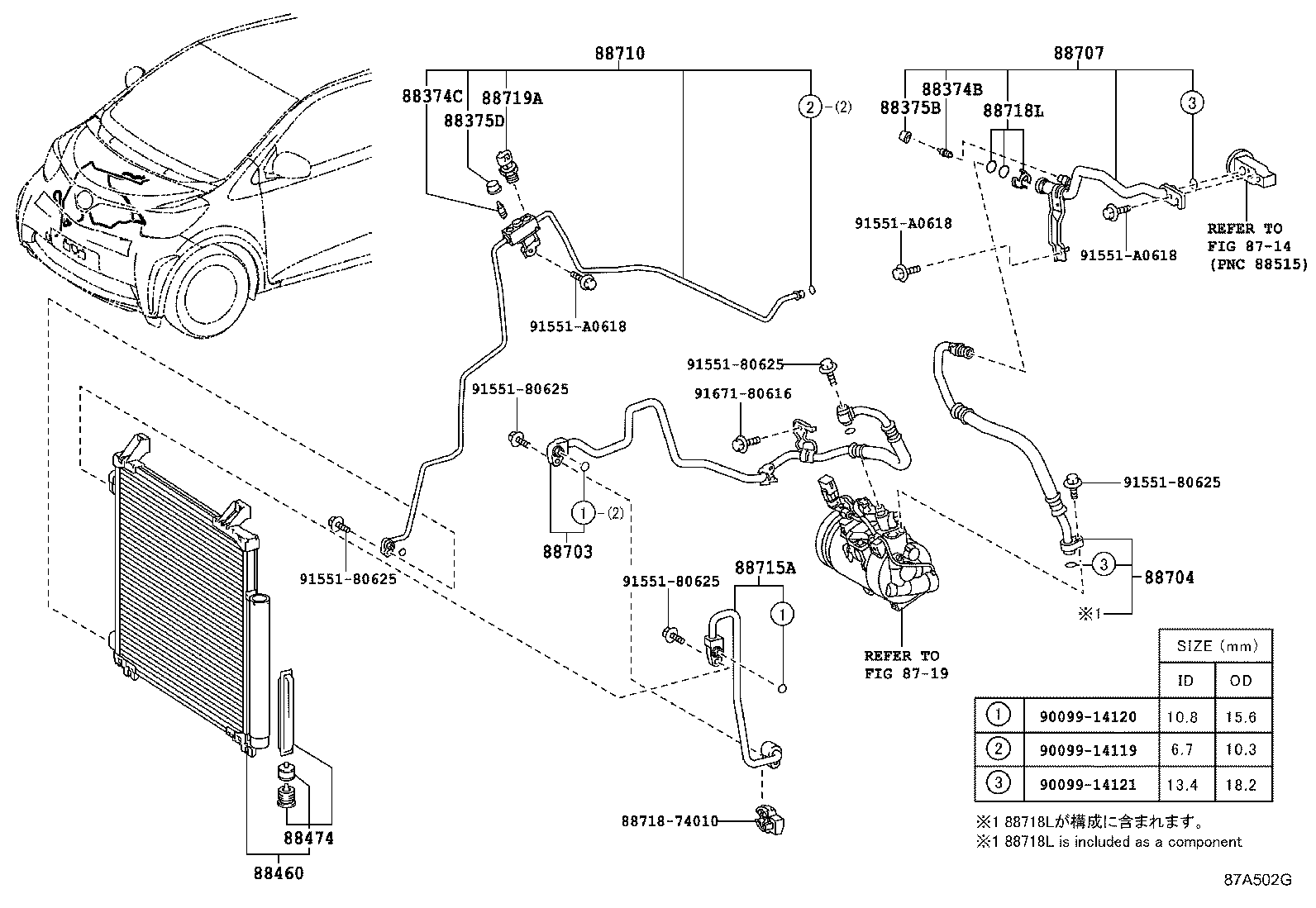

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88703 88704 88707 88710 88715A 8871874010 88718L 88719A 9009914119 9009914120 9009914121 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 91551A0618 91551A0618 9167180616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88374-30010

KGJ10,NGJ10,NUJ10

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88374-30010

KGJ10,NGJ10,NUJ10

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88375-30290

KGJ10,NGJ10,NUJ10

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

KGJ10,NGJ10,NUJ10

 1
88375-30280

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88460 - CONDENSER ASSY, COOLER
88460-74010

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88460-74010

KGJ10,NGJ10,NUJ10

 1
88474 - DRYER, COOLER
88474-17010

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88474-17010

KGJ10,NGJ10,NUJ10

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-74021

NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88703-74021

NUJ10

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-74020

NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88704-74020

NUJ10

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-74020

NUJ10

 1
88707-74020

NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-74020

NUJ10

 1
88710-74020

NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-74010

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88715-74010

KGJ10,NGJ10,NUJ10

 1
88718L - CLAMP, PIPING
88718-52260

KGJ10,NGJ10,NUJ10

 1
88718-52260

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

KGJ10,NGJ10,NUJ10

 1
88719-33020

NGJ10..N;KGJ10,NUJ10

FRONT AIR CONDITIONER-WITHOUT

 1
Common parts
88718-74010
90099-14119
90099-14120
90099-14121
91551-80625
91551-A0618
91671-80616
