NUJ10L-BGFNWW (2008)
Toyota Iq

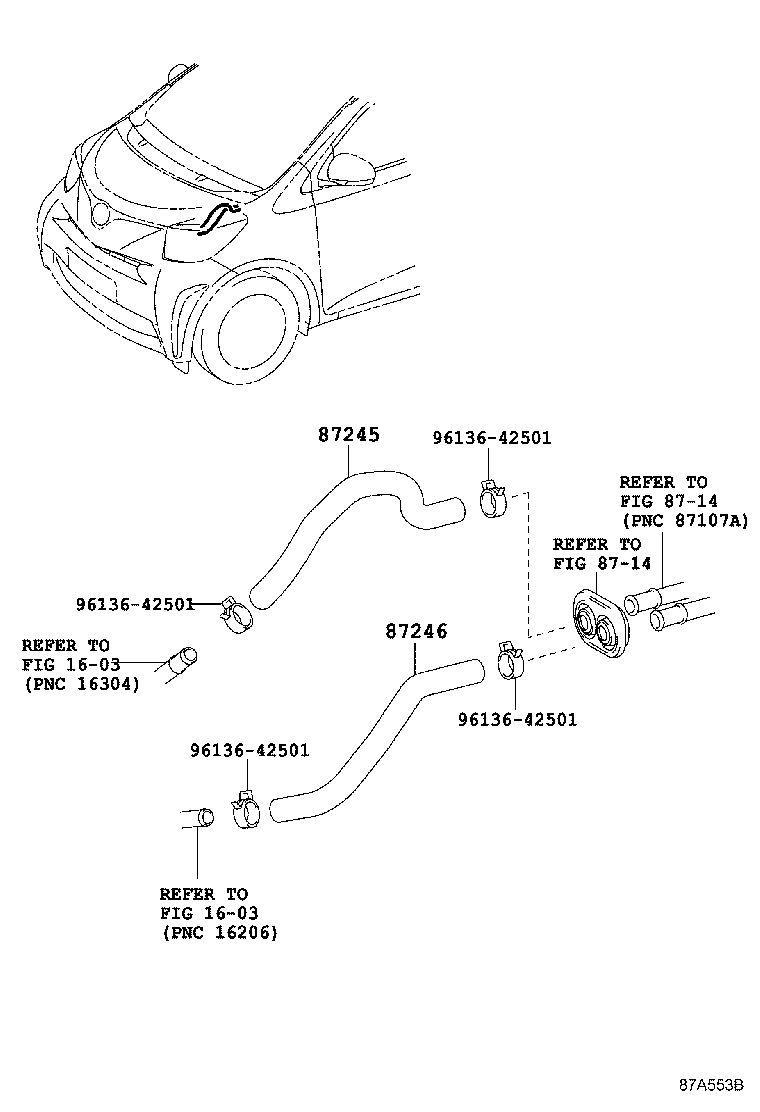

(0811- )NUJ10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-74051 |
NUJ10 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-74061 |
NUJ10 |
1 | ||
| Common parts | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||

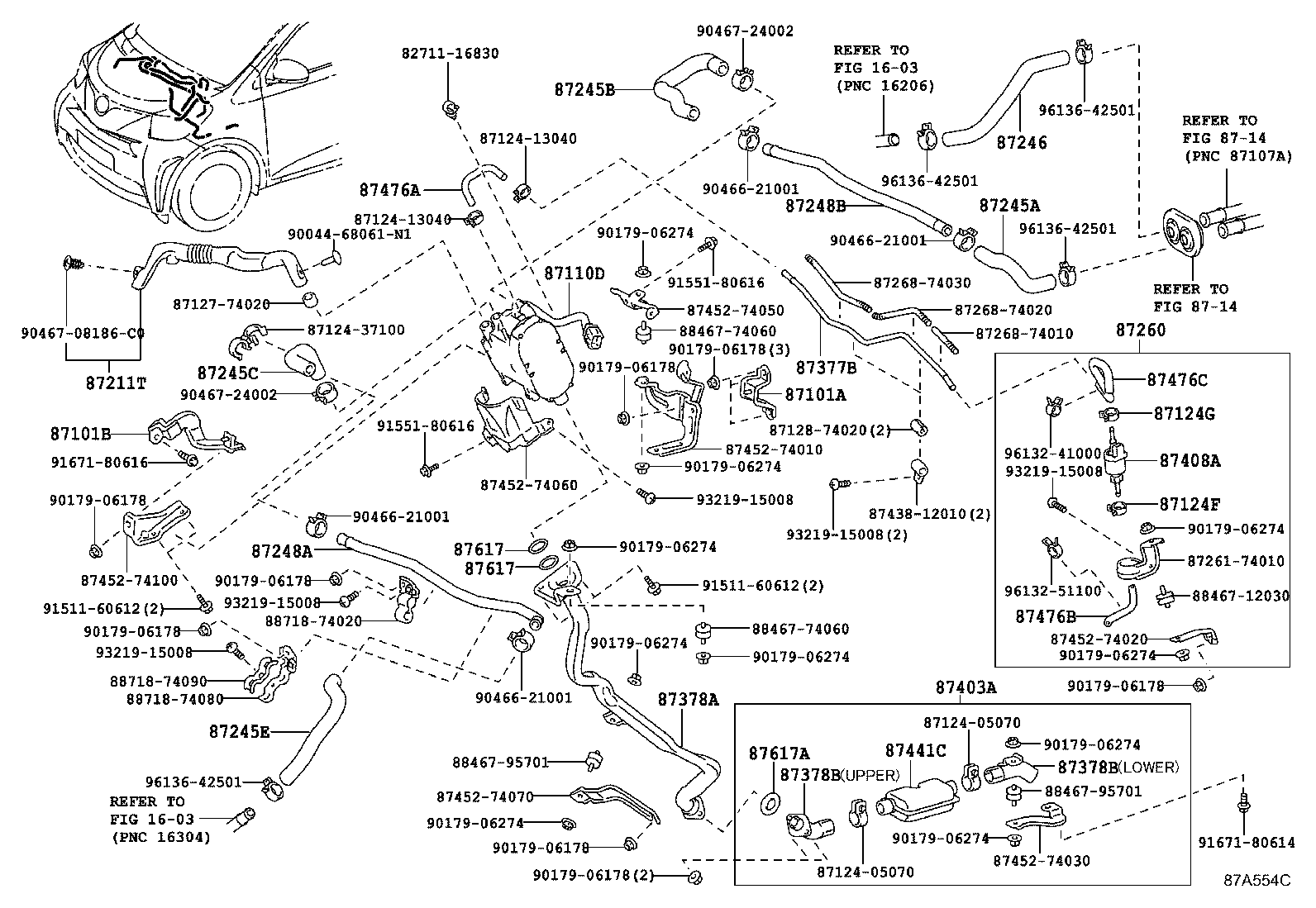

(0811- )NUJ10
W(STOVE HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87101A - BRACKET SUB-ASSY, HEATER NO.1 | ||||
| 87101-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87101B - BRACKET SUB-ASSY, HEATER NO.2 | ||||
| 87101-74020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87110D - HEATER ASSY | ||||
| 87110-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87124F - CLAMP, HEATER HOSE, NO.1 | ||||
| 87124-12030 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87124G - CLAMP, HEATER HOSE, NO.2 | ||||
| 87124-13040 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87211T - DUCT, AIR | ||||
| 87211-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-74080 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-74020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-74070 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-74061 |
NUJ10 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-74020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87377B - PIPE, FUEL | ||||
| 87377-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87378A - PIPE, EXHAUST | ||||
| 87378-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87378B - PIPE, EXHAUST, NO.2 | ||||
| 87378-74020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT,UPPER |
1 | ||
| 87378-74030 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT,LOWER |
1 | ||
| 87378B - PIPE, EXHAUST, NO.2 | ||||
| 87378-74020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT,UPPER |
1 | ||
| 87378-74030 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT,LOWER |
1 | ||
| 87403A - PIPE SUB-ASSY, EXHAUST | ||||
| 87403-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87408A - PUMP SUB-ASSY, FUEL | ||||
| 87408-0D011 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87441C - MUFFLER | ||||
| 87441-05010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87476A - HOSE, HEATER FUEL, NO.1 | ||||
| 87476-74010 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87476B - HOSE, HEATER FUEL, NO.2 | ||||
| 87476-74020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87476C - HOSE, HEATER FUEL, NO.3 | ||||
| 87476-74030 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 87617 - GASKET, HEAT EXCHANGER UNIT NO.1 | ||||
| 87617-12020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
2 | ||
| 87617 - GASKET, HEAT EXCHANGER UNIT NO.1 | ||||
| 87617-12020 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
2 | ||
| 87617A - GASKET, HEAT EXCHANGER UNIT NO.2 | ||||
| 87617-13030 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 87124-05070 | ||||
| 87124-13040 | ||||
| 87124-37100 | ||||
| 87127-74020 | ||||
| 87128-74020 | ||||
| 87261-74010 | ||||
| 87268-74010 | ||||
| 87268-74020 | ||||
| 87268-74030 | ||||
| 87438-12010 | ||||
| 87452-74010 | ||||
| 87452-74020 | ||||
| 87452-74030 | ||||
| 87452-74050 | ||||
| 87452-74060 | ||||
| 87452-74070 | ||||
| 87452-74100 | ||||
| 88467-12030 | ||||
| 88467-74060 | ||||
| 88467-95701 | ||||
| 88718-74020 | ||||
| 88718-74080 | ||||
| 88718-74090 | ||||
| 90044-68061N1 | ||||
| 90179-06178 | ||||
| 90179-06274 | ||||
| 90466-21001 | ||||
| 90467-08186C0 | ||||
| 90467-24002 | ||||
| 91511-60612 | ||||
| 91551-80616 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 93219-15008 | ||||
| 96132-41000 | ||||
| 96132-51100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
