NUJ10L-BGFNWW (2008)
Toyota Iq

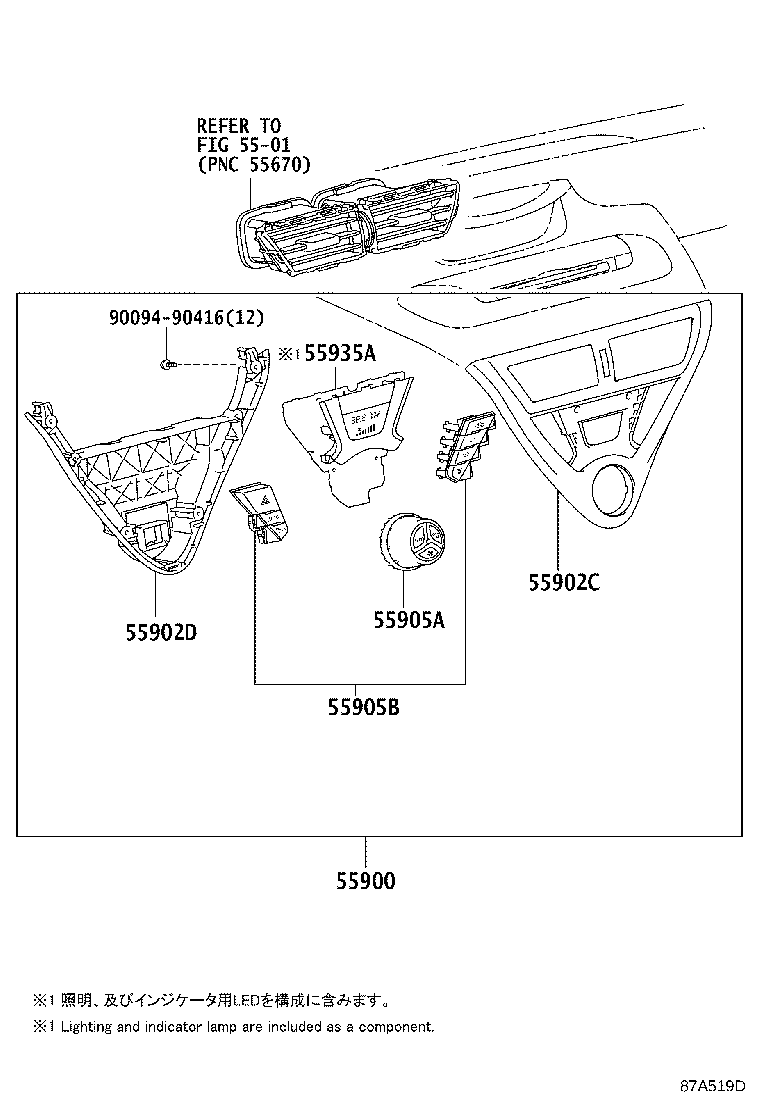

ILLUST NO. 1 OF 3(0811- )
HEATER CONTROL(AUTO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-74040C0 |
NUJ10..LHD;KGJ10,NGJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM15,16,7# |
1 | ||
| 55900-74040E0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55900-74040A0 |
KGJ10,NGJ10,NUJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55900-74040A0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55900-74020B0 |
NUJ10..LHD;KGJ10,NGJ10 FRONT AIR CONDITIONER-AUTO,PLUM,TRIM1#,4#,9# |
1 | ||
| 55900-74040C0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM15,16,7# |
1 | ||
| 55900-74020B0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO,PLUM,TRIM1#,4#,9# |
1 | ||
| 55900-74040E0 |
KGJ10,NGJ10,NUJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-74030B0 |
NUJ10..LHD;KGJ10,NGJ10 FRONT AIR CONDITIONER-AUTO,PLUM,TRIM1#,4#,9# |
1 | ||
| 55902-74030A0 |
KGJ10,NGJ10,NUJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55902-74030C0 |
KGJ10;NGJ10..6F;NUJ10..LHD IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM15,16,7# |
1 | ||
| 55902-74030E0 |
KGJ10,NGJ10,NUJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55902-74030A0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,CREAM WHITE,TRIM13,55,57,58 |
1 | ||
| 55902-74030C0 |
NGJ10..6F;KGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM15,16,7# |
1 | ||
| 55902-74030B0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO,PLUM,TRIM1#,4#,9# |
1 | ||
| 55902-74030E0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BROWN,TRIM12,50,51,53,54 |
1 | ||
| 55902D - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-74050C1 |
KGJ10,NUJ10..MTM..N HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM12,13,5# |
1 | ||
| 55902-74040C0 |
NUJ10..LHD;KGJ10,NGJ10 FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,9# |
1 | ||
| 55902-74050C1 |
KGJ10,NUJ10..MTM..N IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM12,13,5# |
1 | ||
| 55902-74040C0 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,9# |
1 | ||
| 55902-74050D0 |
KGJ10,NGJ10,NUJ10..N IQ COLLECTION&FRONT AIR CONDITIONER-AUTO,RED,TRIM15,16,7# |
1 | ||
| 55902-74050D0 |
KGJ10,NGJ10,NUJ10..N HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,RED,TRIM15,16,7# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-74010 |
KGJ10,NGJ10,NUJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55905-74010 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55905-74010 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-74020 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55905-74020 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55905-74020 |
KGJ10,NGJ10,NUJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55935A - CIRCUIT, CENTER CLUSTER MODULE | ||||
| 55935-74010 |
KGJ10,NGJ10,NUJ10 IQ COLLECTION&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55935-74010 |
KGJ10,NGJ10,NUJ10 FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55935-74010 |
KGJ10,NGJ10,NUJ10 HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 1 OF 3(0811- )
HEATER CONTROL(MANUAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1 | ||||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-74040 |
NGJ10;NUJ10..LHD FRONT AIR CONDITIONER-WITHOUT |
1 | ||
| 55901-74030C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55901-74030C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55901-74030C0 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55901-74030C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-74020C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55902-74020C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55902-74020C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55902-74020C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55902-74020C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55902-74020C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2 | ||||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-74030C0 |
NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-WITHOUT,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74040C0 |
NUJ10..LHD COLD AREA SPEC(A RANK),BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
NUJ10..LHD COLD AREA SPEC(A RANK)&HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
NUJ10..LHD COLD AREA SPEC(A RANK)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74080C0 |
NUJ10 COLD AREA SPEC(A RANK)&HEATER CONTROL PANEL-MANUAL(DIAL)W/COLOR RING,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD COLD AREA SPEC(S RANK)&HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD COLD AREA SPEC(S RANK)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
KGJ10;NUJ10..LHD;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74030C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903-74040C0 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD COLD AREA SPEC(S RANK),BLACK,TRIM1#,4#,7#,9# |
1 | ||
| 55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3 | ||||
| 90010-01148 |
NUJ10..LHD COLD AREA SPEC(A RANK)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
NUJ10..LHD COLD AREA SPEC(A RANK)&HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK)&HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK)&HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 90010-01148 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2 | ||||
| 55906-26060 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 55906-26060 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK |
1 | ||
| 55906-26060 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55906-26060 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55906-26060 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC |
1 | ||
| 55906-26060 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-74020 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD HEATER CONTROL PANEL-AUTO(DIAL)BLACK |
1 | ||
| 55908-74020 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 55908-74020 |
KGJ10,NGJ10,NUJ10..LHD HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55908-74020 |
KGJ10,NGJ10,NUJ10..LHD HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55908-74020 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC |
1 | ||
| 55908-74020 |
NGJ10..LHD..N;KGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-74020 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 55909-74020 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC |
1 | ||
| 55909-74020 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55909-74020 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)GRAY METALLIC&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55909-74020 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55909-74020 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..CVFC HEATER CONTROL PANEL-AUTO(DIAL)BLACK |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 2 OF 3(0811- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-74010 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-74010 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-74100 |
NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 87201-74080 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-74100 |
NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 87201-74080 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-74090 |
NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 87201-74070 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-74090 |
NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
1 | ||
| 87201-74070 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87201-74060 |
NGJ10..LHD..R;KGJ10,NUJ10..LHD;NGJ10..LHD..CVFC |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-08186C0 |
KGJ10,NGJ10,NUJ10 BLACK |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87201-74120 |
KGJ10,NGJ10,NUJ10..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87220-74010 |
KGJ10,NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK) |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87230-74010 |
KGJ10,NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK) |
1 | ||
| Common parts | ||||
| 90467-10188 | ||||
| 93568-55014 | ||||

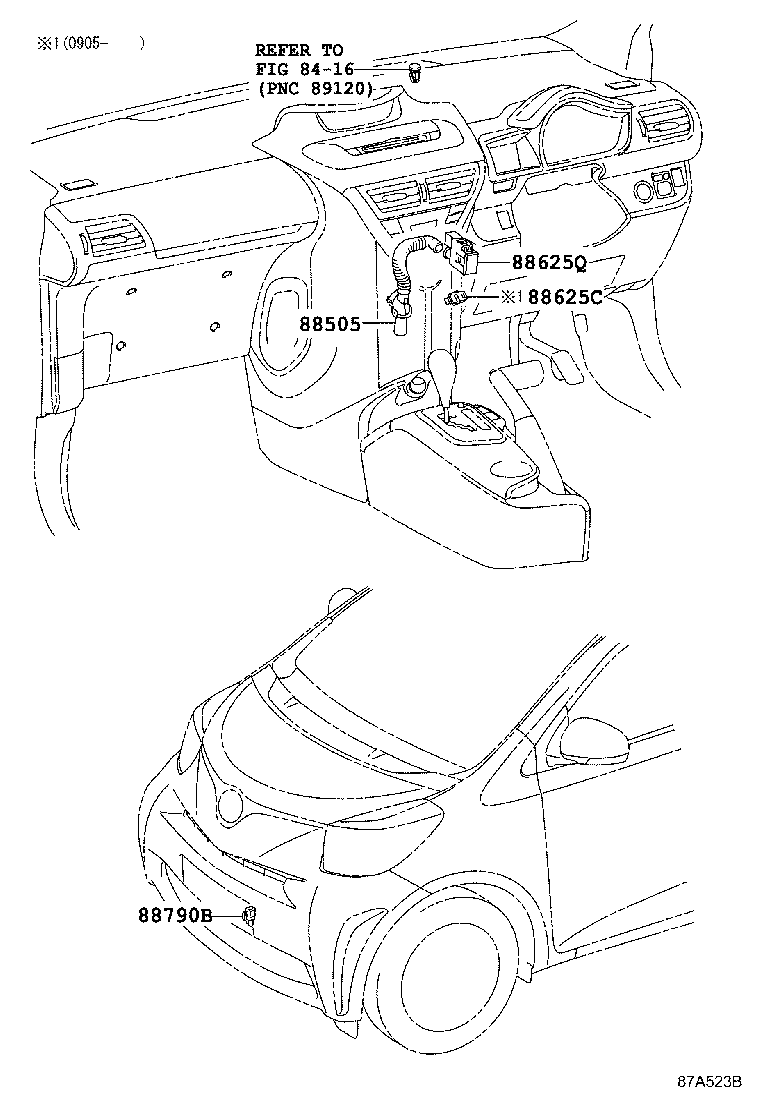

ILLUST NO. 3 OF 3(0811- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-74010 |
KGJ10,NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88505-74011 |
NUJ10 COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88505-74010 |
KGJ10,NGJ10,NUJ10..LHD FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88505-74010 |
NUJ10..LHD COLD AREA SPEC(A RANK)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
KGJ10,NGJ10..LHD..R;KGJ10,NGJ10..LHD..CVFC;KGJ10,NGJ10,NUJ10..MTM..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
KGJ10,NGJ10,NUJ10 |
1 | ||
| Linked diagrams | ||||
| 8416 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
