NUJ10L-BGFNWW (2008)
Toyota Iq
(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

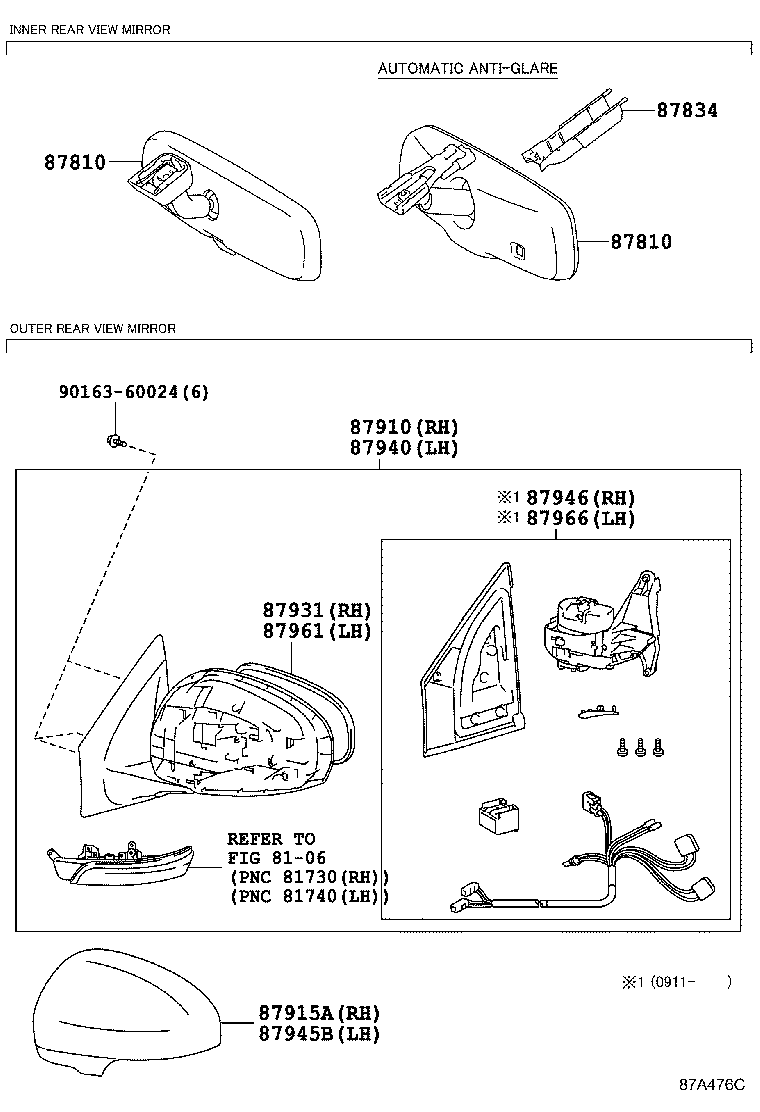

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F050 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87810-52041 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0F050 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87810-52041 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-33010 |
KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-74050 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 87910-74060 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ. |
1 | ||
| 87910-74050 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),SIDE TURN LAMP=LED |
1 | ||
| 87910-74070 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87910-74070 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SIDE TURN LAMP=LED |
1 | ||
| 87910-74060 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,SIDE TURN LAMP=LED |
1 | ||
| 87910-74050 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER),SIDE TURN LAMP=LED |
1 | ||
| 87910-74070 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER),SIDE TURN LAMP=LED |
1 | ||
| 87915A - COVER, OUTER MIRROR, RH | ||||
| 87915-74010F0 |
KGJ10,NGJ10,NUJ10 SILKY GOLD M.M.,5A7 |
1 | ||
| 87915-74010J5 |
KGJ10,NGJ10,NUJ10 BLUE ME.,8T7 |
1 | ||
| 87915-74010G1 |
KGJ10,NGJ10,NUJ10 JADE GREEN METALLIC,6V5 |
1 | ||
| 87915-74010K0 |
NGJ10..RHD;NGJ10..LHD..6F..N;KGJ10,NUJ10..MTM..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 87915-74010E1 |
KGJ10,NGJ10,NUJ10 BRONZE M.M.,4T3 |
1 | ||
| 87915-74010C1 |
KGJ10,NGJ10,NUJ10..MTM..N BLACK MC.,209 |
1 | ||
| 87915-74010J3 |
KGJ10,NGJ10,NUJ10 GRAYISH BLUE ME.,8R3 |
1 | ||
| 87915-74010B1 |
KGJ10,NGJ10,NUJ10 GRAY ME.,1G3 |
1 | ||
| 87915-74010B0 |
KGJ10,NGJ10,NUJ10 SILVER ME.,1F7 |
1 | ||
| 87915-74010A1 |
KGJ10,NGJ10,NUJ10 WHITE PEARL CS.,070 |
1 | ||
| 87915-74010D1 |
KGJ10,NUJ10 SUPER RED 5,3P0 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 87931-74040 |
NUJ10;KGJ10,NGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87931-74040 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER) |
1 | ||
| 87931-74040 |
NUJ10;KGJ10,NGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 87931-74040 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-74050 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),SIDE TURN LAMP=LED |
1 | ||
| 87940-74060 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,SIDE TURN LAMP=LED |
1 | ||
| 87940-74050 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| 87940-74060 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ. |
1 | ||
| 87940-74050 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER),SIDE TURN LAMP=LED |
1 | ||
| 87940-74070 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87940-74070 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER),SIDE TURN LAMP=LED |
1 | ||
| 87940-74070 |
KGJ10,NGJ10,NUJ10..LHD NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SIDE TURN LAMP=LED |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-74010C1 |
KGJ10,NGJ10,NUJ10..MTM..N BLACK MC.,209 |
1 | ||
| 87945-74010F0 |
KGJ10,NGJ10,NUJ10 SILKY GOLD M.M.,5A7 |
1 | ||
| 87945-74010K0 |
NGJ10..RHD;NGJ10..LHD..6F..N;KGJ10,NUJ10..MTM..N DEEP AMETHYST M.M.,9AH |
1 | ||
| 87945-74010G1 |
KGJ10,NGJ10,NUJ10 JADE GREEN METALLIC,6V5 |
1 | ||
| 87945-74010E1 |
KGJ10,NGJ10,NUJ10 BRONZE M.M.,4T3 |
1 | ||
| 87945-74010J5 |
KGJ10,NGJ10,NUJ10 BLUE ME.,8T7 |
1 | ||
| 87945-74010B0 |
KGJ10,NGJ10,NUJ10 SILVER ME.,1F7 |
1 | ||
| 87945-74010D1 |
KGJ10,NUJ10 SUPER RED 5,3P0 |
1 | ||
| 87945-74010J3 |
KGJ10,NGJ10,NUJ10 GRAYISH BLUE ME.,8R3 |
1 | ||
| 87945-74010B1 |
KGJ10,NGJ10,NUJ10 GRAY ME.,1G3 |
1 | ||
| 87945-74010A1 |
KGJ10,NGJ10,NUJ10 WHITE PEARL CS.,070 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-74010 |
NUJ10;KGJ10,NGJ10..LHD |
1 | ||
| 87961-74040 |
NUJ10;KGJ10,NGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 87961-74040 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(*CR),W(HEATER) |
1 | ||
| 87961-74040 |
KGJ10,NGJ10,NUJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER) |
1 | ||
| 87961-74040 |
NUJ10;KGJ10,NGJ10..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER) |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
