NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

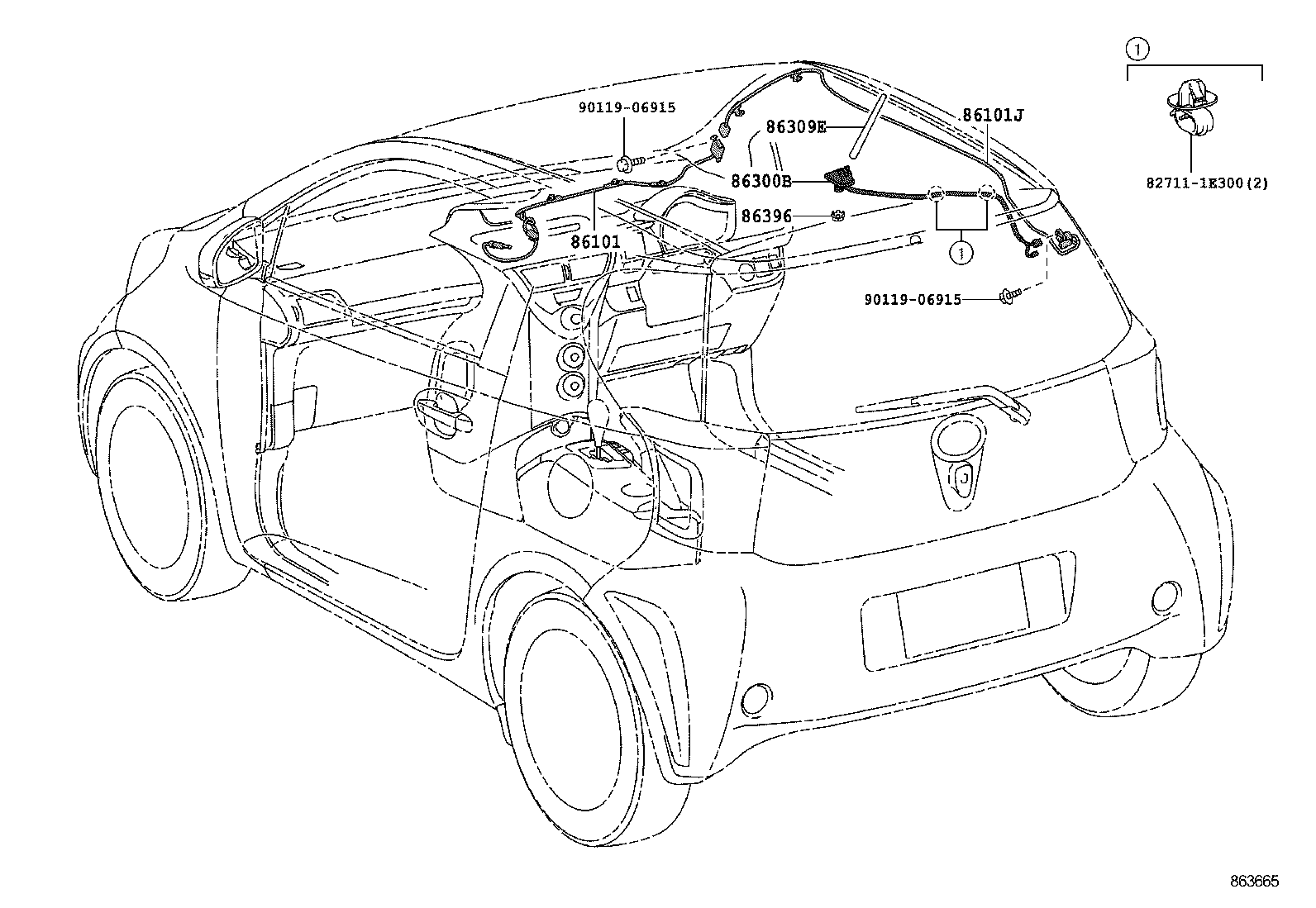

Click highlighted areas on diagram

diagram 827111E300 86101 86101J 86300B 86309E 86396 9011906915 9011906915
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-74021

KGJ10,NGJ10,NUJ10..LHD

 1
86101-74020

KGJ10,NUJ10..LHD

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-74010

KGJ10,NGJ10,NUJ10

 1
86101-74012

KGJ10,NGJ10,NUJ10

 1
86101-74011

KGJ10,NGJ10,NUJ10

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-74010

KGJ10,NGJ10,NUJ10

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-42080

KGJ10,NGJ10,NUJ10

 1
86396 - NUT, ANTENNA
86396-20040

KGJ10,NGJ10,NUJ10

 1
Common parts
82711-1E300
90119-06915
