NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

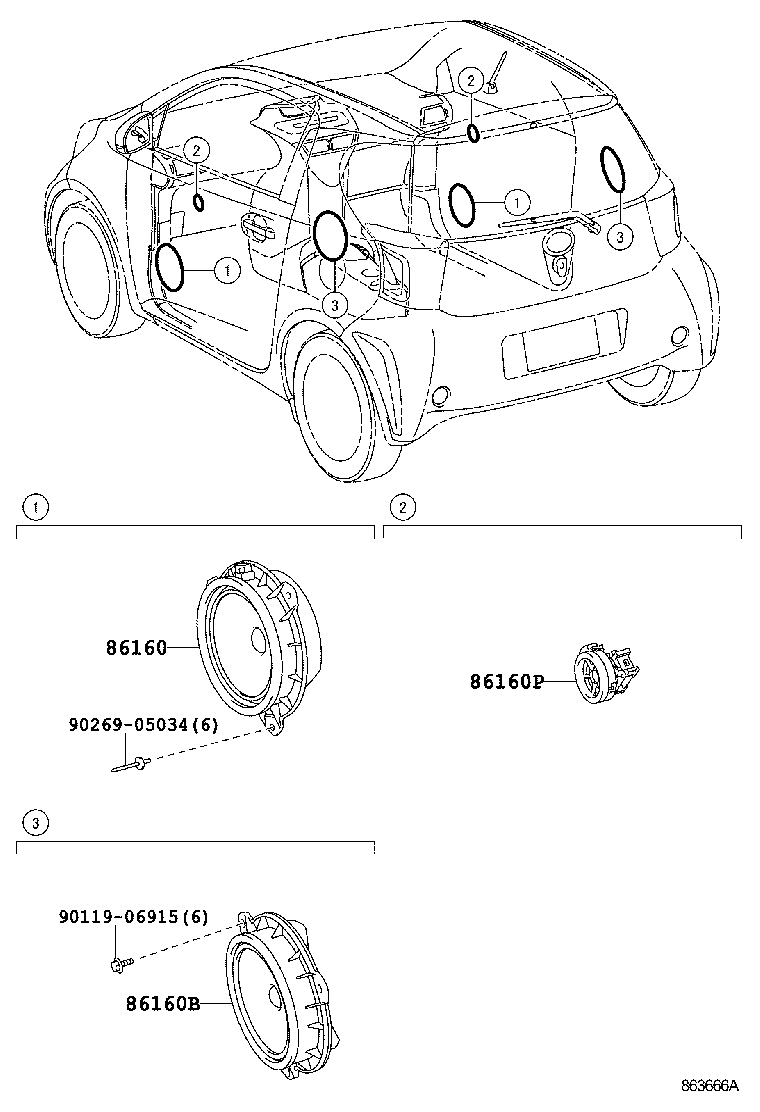

Click highlighted areas on diagram

diagram 86160 86160B 86160P 9011906915 9026905034
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-2B580

KGJ10,NGJ10,NUJ10

 2
86160B - SPEAKER ASSY, REAR
86160-52220

NGJ10..N;KGJ10,NUJ10

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS(WITHOUT REAR SPEAKER)

 2
86160-52220

KGJ10,NGJ10,NUJ10

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-68010

KGJ10,NGJ10,NUJ10

 2
Common parts
90119-06915
90269-05034
