NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

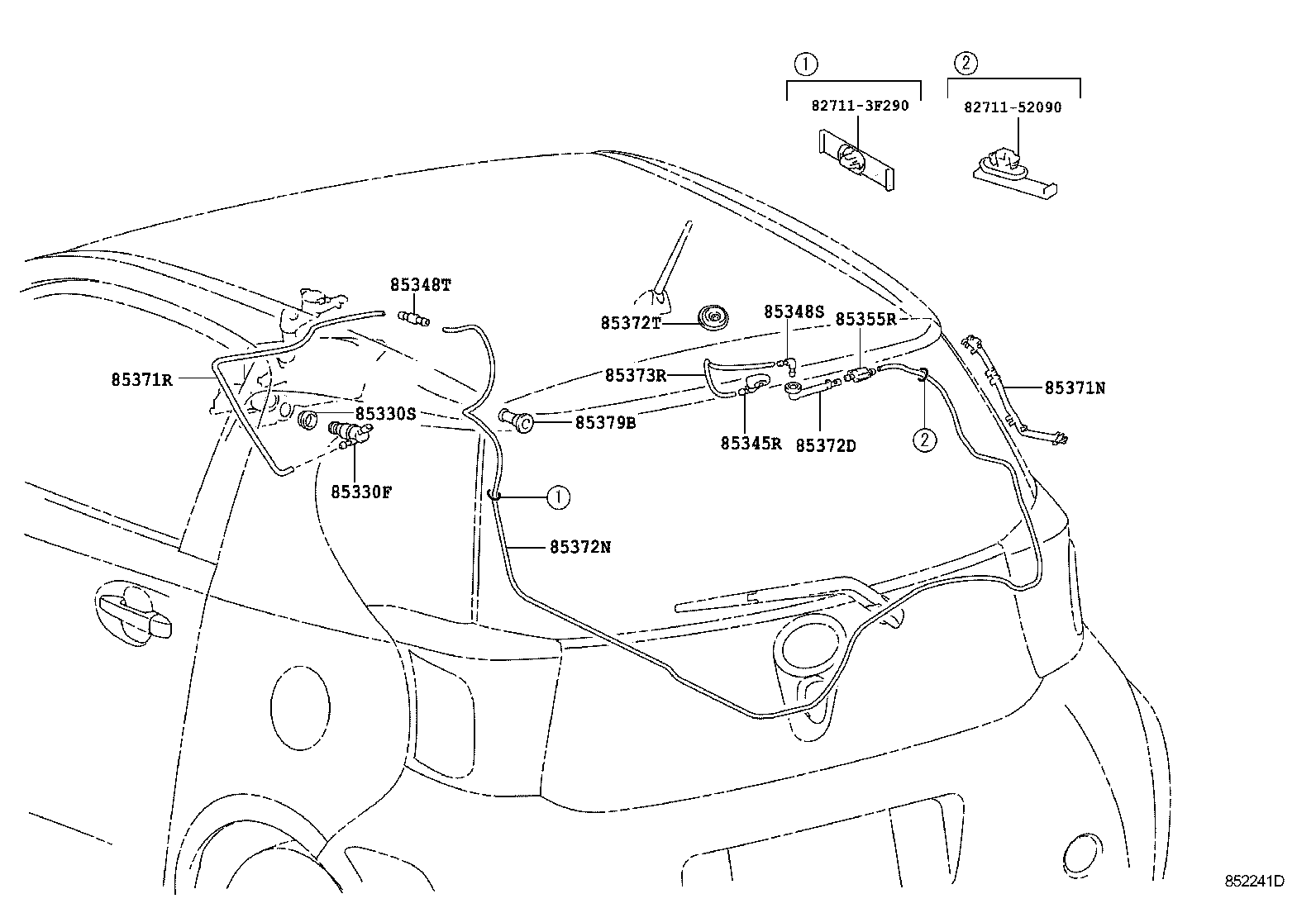

Click highlighted areas on diagram

diagram 827113F290 8271152090 85330F 85330S 85345R 85348S 85348T 85355R 85371N 85371R 85372D 85372N 85372T 85373R 85379B
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-42030

KGJ10,NGJ10,NUJ10

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

KGJ10,NGJ10,NUJ10

 1
85345R - NOZZLE, REAR WASHER
85391-74010

KGJ10,NGJ10,NUJ10

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

KGJ10,NGJ10,NUJ10

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

KGJ10,NGJ10,NUJ10

 1
85355R - VALVE, REAR WASHER HOSE
85321-26020

KGJ10,NGJ10,NUJ10

 1
85371N - CLAMP, REAR WASHER HOSE
85371-74010

KGJ10,NGJ10,NUJ10

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

KGJ10,NGJ10,NUJ10

*H,L=590

 1
85372D - GROMMET, REAR WASHER HOSE
85373-12030

KGJ10,NGJ10,NUJ10

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33595

KGJ10,NGJ10,NUJ10

*H,L=3656

 1
85372T - GROMMET, WASHER
85372-20020

KGJ10,NGJ10,NUJ10

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

KGJ10,NGJ10,NUJ10

*H,L=270

 1
85379B - GROMMET, WASHER, A
85379-12850

KGJ10,NGJ10,NUJ10

 1
Common parts
82711-3F290
82711-52090
