NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

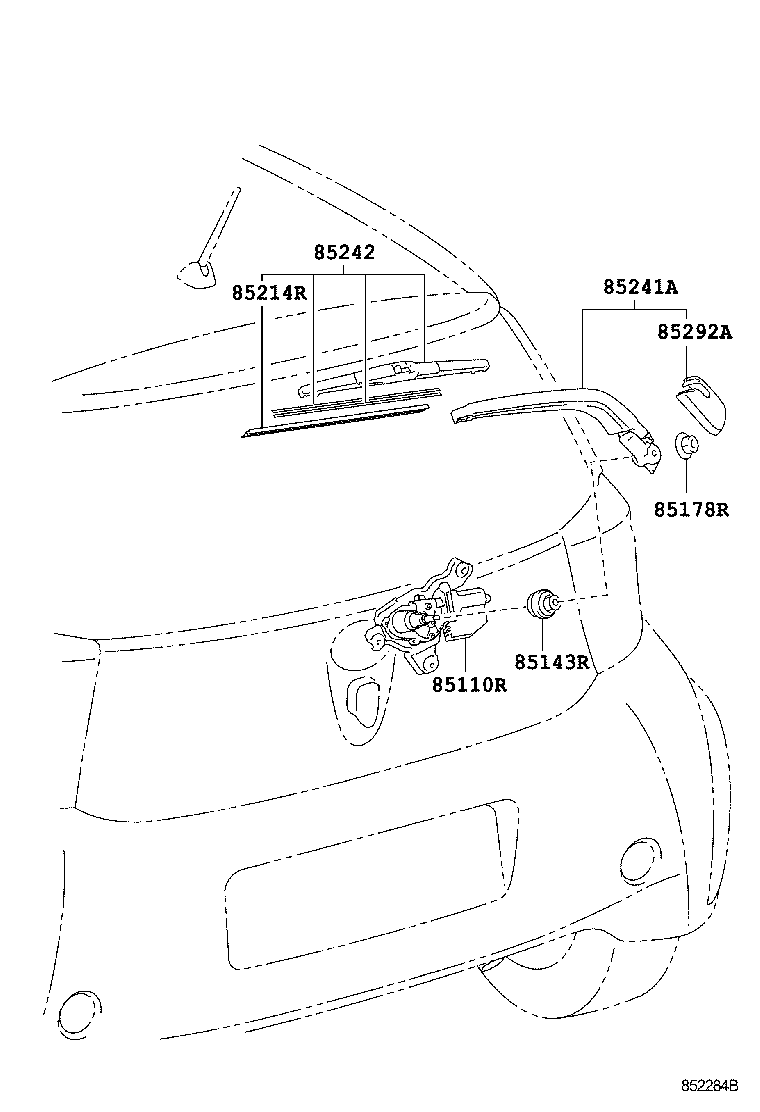

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85214R 85241A 85242 85292A
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-74010

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

FRONT AIR CONDITIONER-AUTO

 1
85130-74020

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-52030

KGJ10,NGJ10,NUJ10

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

KGJ10,NGJ10,NUJ10

 1
85214R - RUBBER, REAR WIPER
85214-12310

KGJ10,NGJ10,NUJ10

 1
85241A - ARM, REAR WIPER
85241-74010

KGJ10,NGJ10,NUJ10

 1
85242 - BLADE, RR WIPER
85242-12090

KGJ10,NGJ10,NUJ10

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-42010

KGJ10,NGJ10,NUJ10

 1
