NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

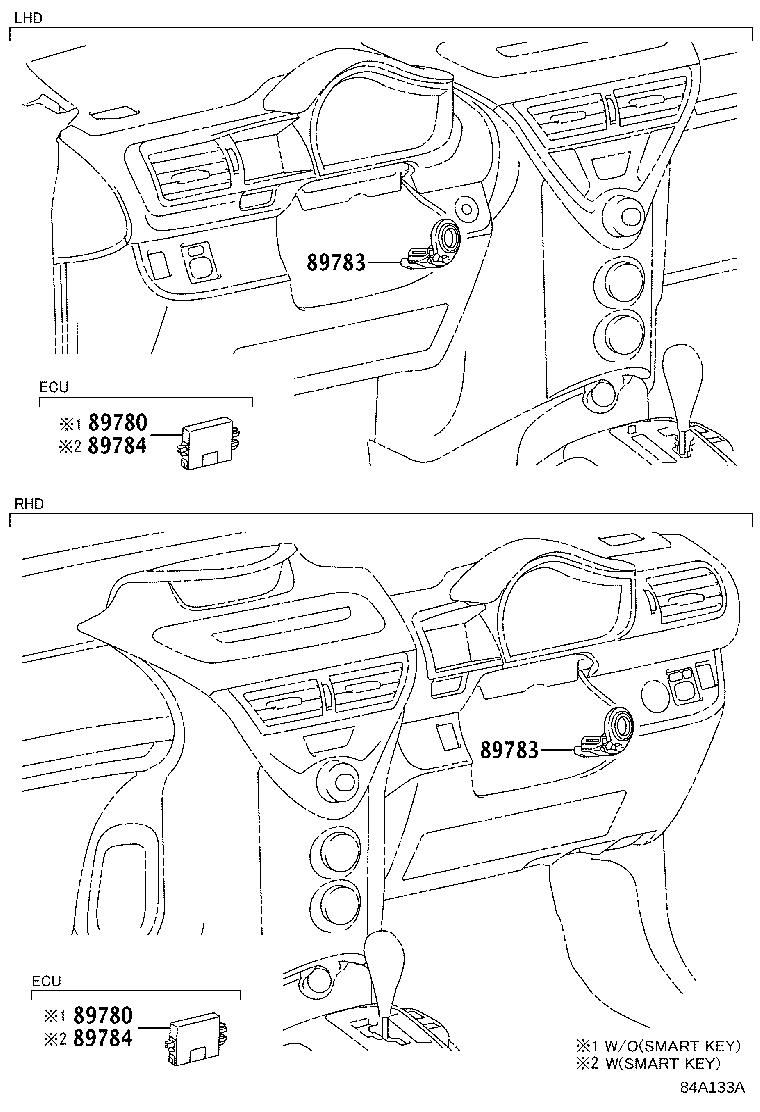

Click highlighted areas on diagram

diagram 89780 89780 89783 89783 89784 89784
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-74010

KGJ10,NGJ10,NUJ10

P/N LABEL=8978074010

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-74010

KGJ10,NGJ10,NUJ10

P/N LABEL=8978074010

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52030

KGJ10,NGJ10,NUJ10

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52030

KGJ10,NGJ10,NUJ10

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-74010

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-74010

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO

 1
