NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

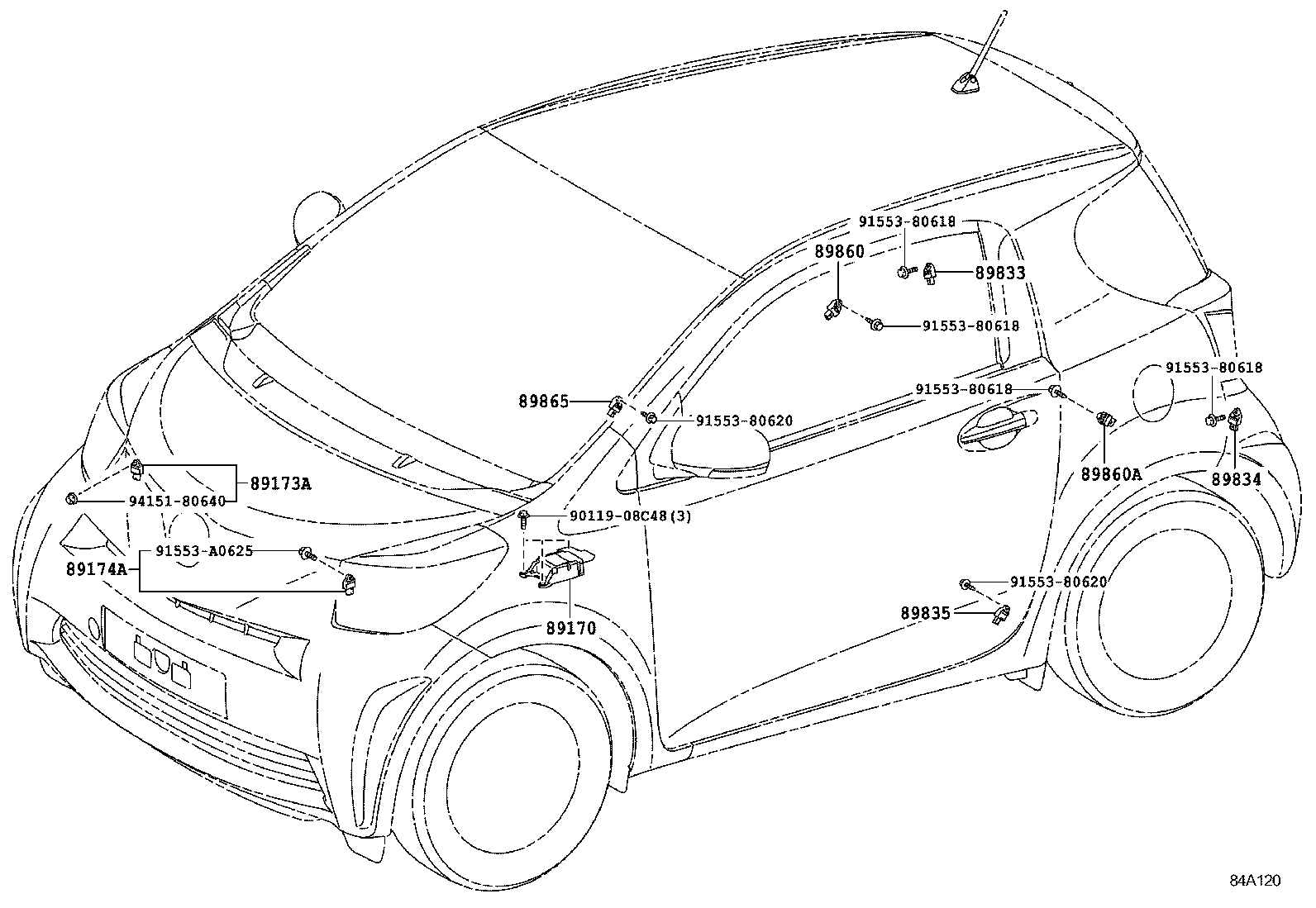

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89833 89834 89835 89860 89860A 89865 9011908C48 9155380618 9155380618 9155380618 9155380618 9155380620 9155380620 91553A0625 9415180640
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-74040

KGJ10,NGJ10,NUJ10..LHD

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-69205

KGJ10,NGJ10,NUJ10

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-79015

KGJ10,NGJ10,NUJ10

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-48020

KGJ10,NGJ10,NUJ10

 1
89831-48020

KGJ10,NGJ10,NUJ10

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

 1
89831-48020

KGJ10,NUJ10..LHD..N

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-48020

KGJ10,NGJ10,NUJ10

 1
89831-48020

KGJ10,NGJ10,NUJ10

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

 1
89831-48020

KGJ10,NUJ10..LHD..N

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-74010

KGJ10,NGJ10,NUJ10

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-33020

KGJ10,NGJ10,NUJ10

 1
89831-33020

KGJ10,NUJ10..LHD..N

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

 1
89831-33020

KGJ10,NGJ10,NUJ10

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-33020

KGJ10,NGJ10,NUJ10

 1
89831-33020

KGJ10,NUJ10..LHD..N

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

 1
89831-33020

KGJ10,NGJ10,NUJ10

SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-74010

KGJ10,NGJ10,NUJ10

 1
Common parts
90119-08C48
91553-80618
91553-80620
91553-A0625
94151-80640
