NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )LHD

Click highlighted areas on diagram

W/O(SMART KEY)

diagram 89741 9011906915
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-52262

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

 1
89741-52262

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO

 1
89740-74020

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO

 1
Common parts
90119-06915

(0811- )LHD

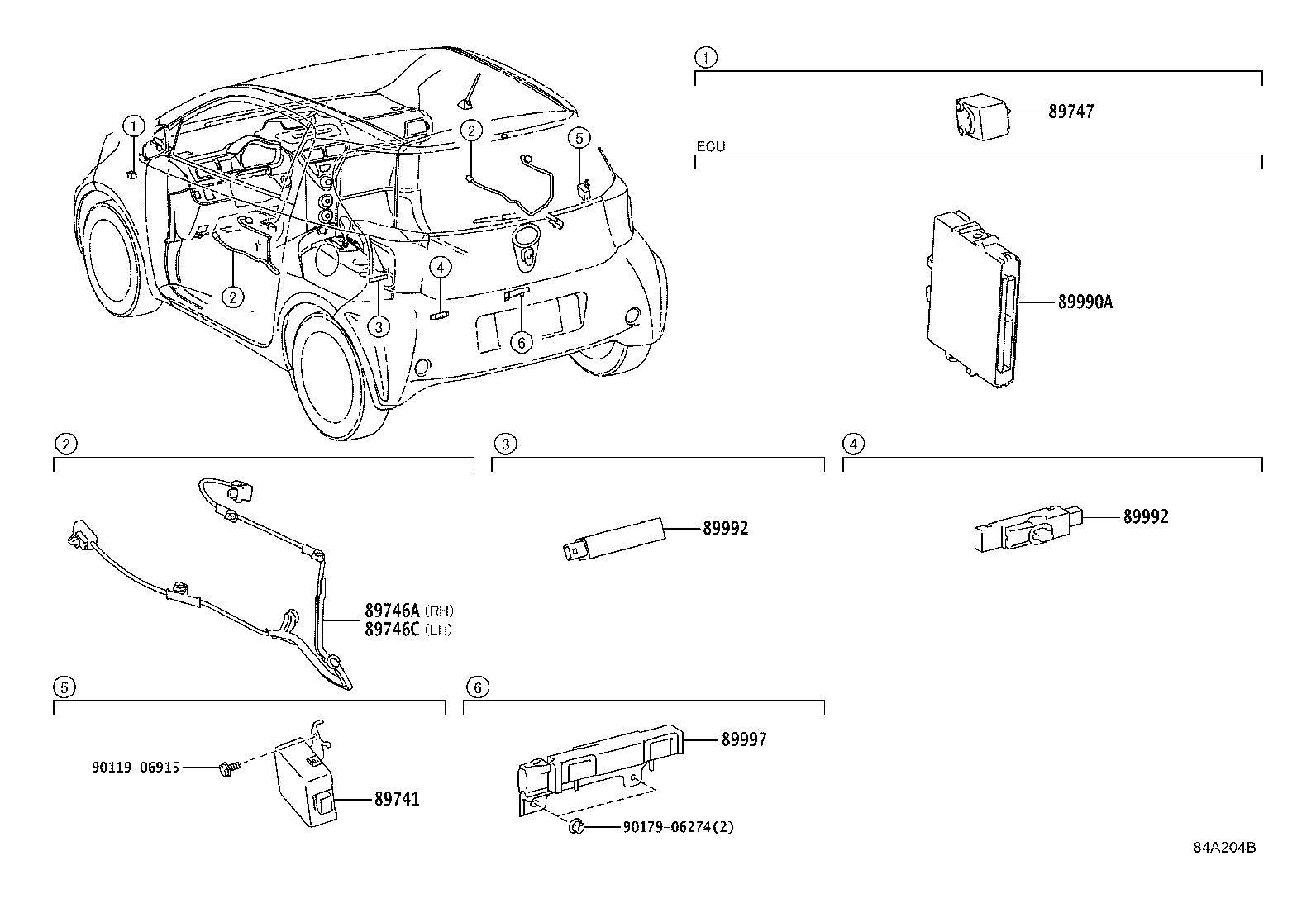

Click highlighted areas on diagram

W(SMART KEY)

diagram 89741 89746A 89746C 89747 89990A 89992 89992 89997 9011906915 9017906274
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-52262

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

 1
89741-52262

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO

 1
89740-74020

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

WIRELESS DOOR LOCK-SMART KEY&FRONT AIR CONDITIONER-AUTO

 1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-74010

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

FRONT AIR CONDITIONER-AUTO

 1
89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1
89746-74020

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

FRONT AIR CONDITIONER-AUTO

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

FRONT AIR CONDITIONER-AUTO

 1
89990A - COMPUTER ASSY, SMART KEY
89990-74020

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

FRONT AIR CONDITIONER-AUTO

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-48120

KGJ10,NGJ10,NUJ10

FRONT AIR CONDITIONER-AUTO

 2
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-48120

KGJ10,NGJ10,NUJ10

FRONT AIR CONDITIONER-AUTO

 2
89997 - ANTENNA, ELECTRICAL KEY
89997-74010

KGJ10,NUJ10;NGJ10..6F..N;NGJ10..LHD..R;NGJ10..LHD..CVFC

FRONT AIR CONDITIONER-AUTO

 1
Common parts
90119-06915
90179-06274
