NUJ10L-BGFNWW (2008)

Toyota Iq

Production Nov 2008 - May 2012
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

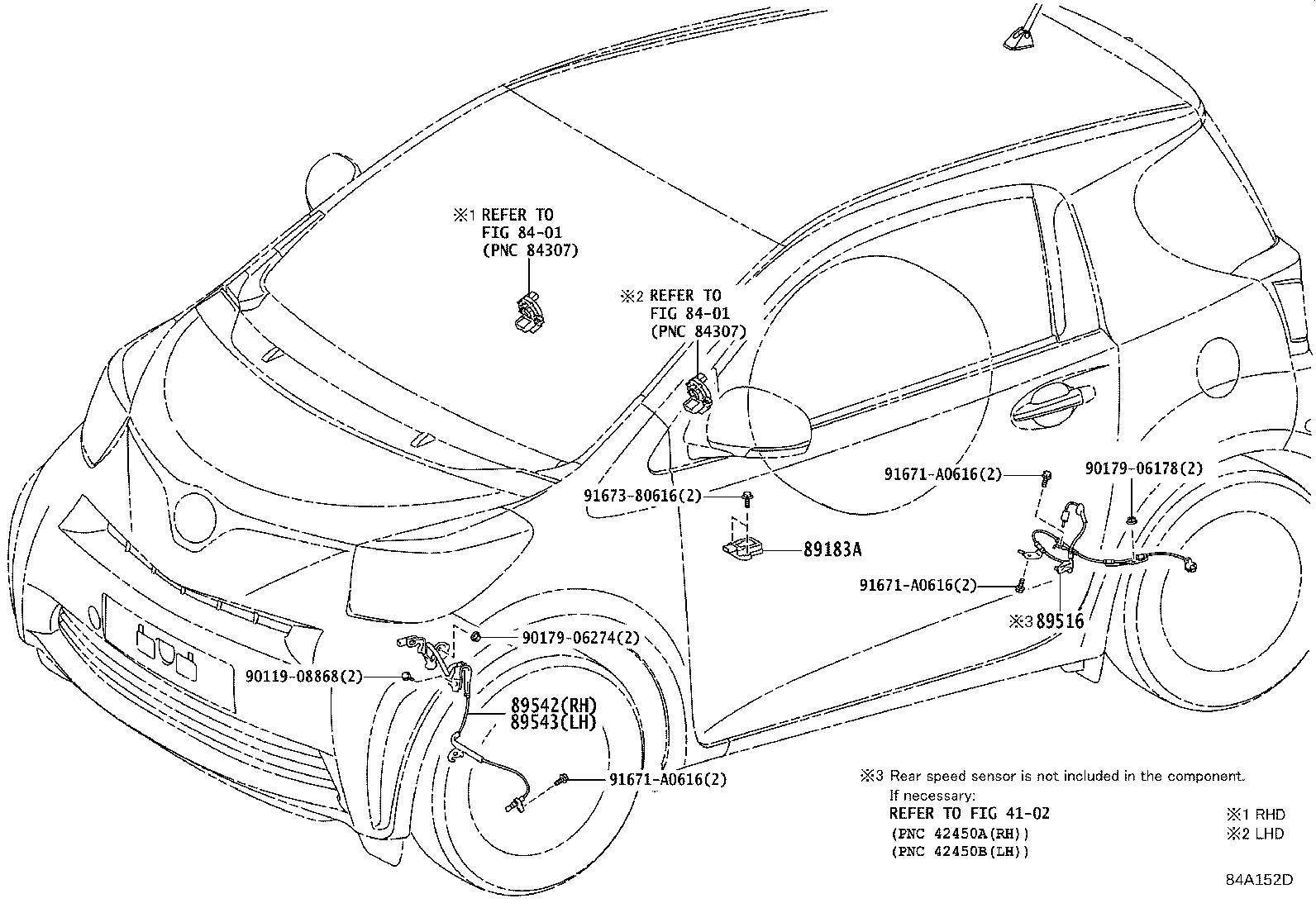

Click highlighted areas on diagram

diagram 4102 8401 8401 89183A 89516 89542 89543 9011908868 9017906178 9017906274 91671A0616 91671A0616 91671A0616 9167380616
Part # Description Qty Price
89183A - SENSOR, YAWRATE
89183-48030

KGJ10,NGJ10,NUJ10

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-74010

KGJ10,NGJ10,NUJ10

RH

 1
89516-74020

KGJ10,NGJ10,NUJ10

LH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-74010

KGJ10,NGJ10,NUJ10

 1
89543 - SENSOR, SPEED, FRONT LH
89543-74010

KGJ10,NGJ10,NUJ10

 1
Common parts
90119-08868
90179-06178
90179-06274
91671-A0616
91673-80616
Linked diagrams
4102
8401
